In the current era of rapid iteration in advanced driver assistance systems (ADAS) and autonomous driving technologies, visual perception systems are facing unprecedented challenges — from intense glare and backlighting to low-light night conditions, from LED traffic signal flicker to stringent synchronization requirements for multi-sensor fusion. Every detail tests the extreme performance of automotive cameras. Recently, SENSING TECH launched its latest 8MP automotive-grade camera module, the SG8-OX08DC-5300-G2G-Hxxx. Leveraging top-tier core hardware, professional image tuning, and automotive-grade protection design, this product offers an ideal solution that combines high performance and high reliability for intelligent driving front-view perception.
Top-Tier Core Hardware for Exceptional Image Quality
The image sensor in SENSING TECH’s SG8-OX08DC series camera adopts OMNIVISION’s first 8MP CMOS image sensor, the OX08D10, featuring 2.1µm TheiaCel™ technology. This technology integrates next-generation Lateral Overflow Integration Capacitor (LOFIC) with OMNIVISION’s DCG™ high dynamic range technology, achieving breakthrough improvements in both dynamic range and LED flicker mitigation (LFM). It accurately captures LED lights under various driving conditions, completely eliminating flickering artifacts.
Paired with the indie GW5300 image signal processor and the Maxim (ADI) GMSL2 serializer MAX96717G, the SG8-OX08DC series supports uncompressed YUV data output, preserving raw image details without loss while meeting the stringent automotive requirements for long-distance, high-bandwidth transmission.
Three Key Advantages Addressing ADAS Front-View Pain Points

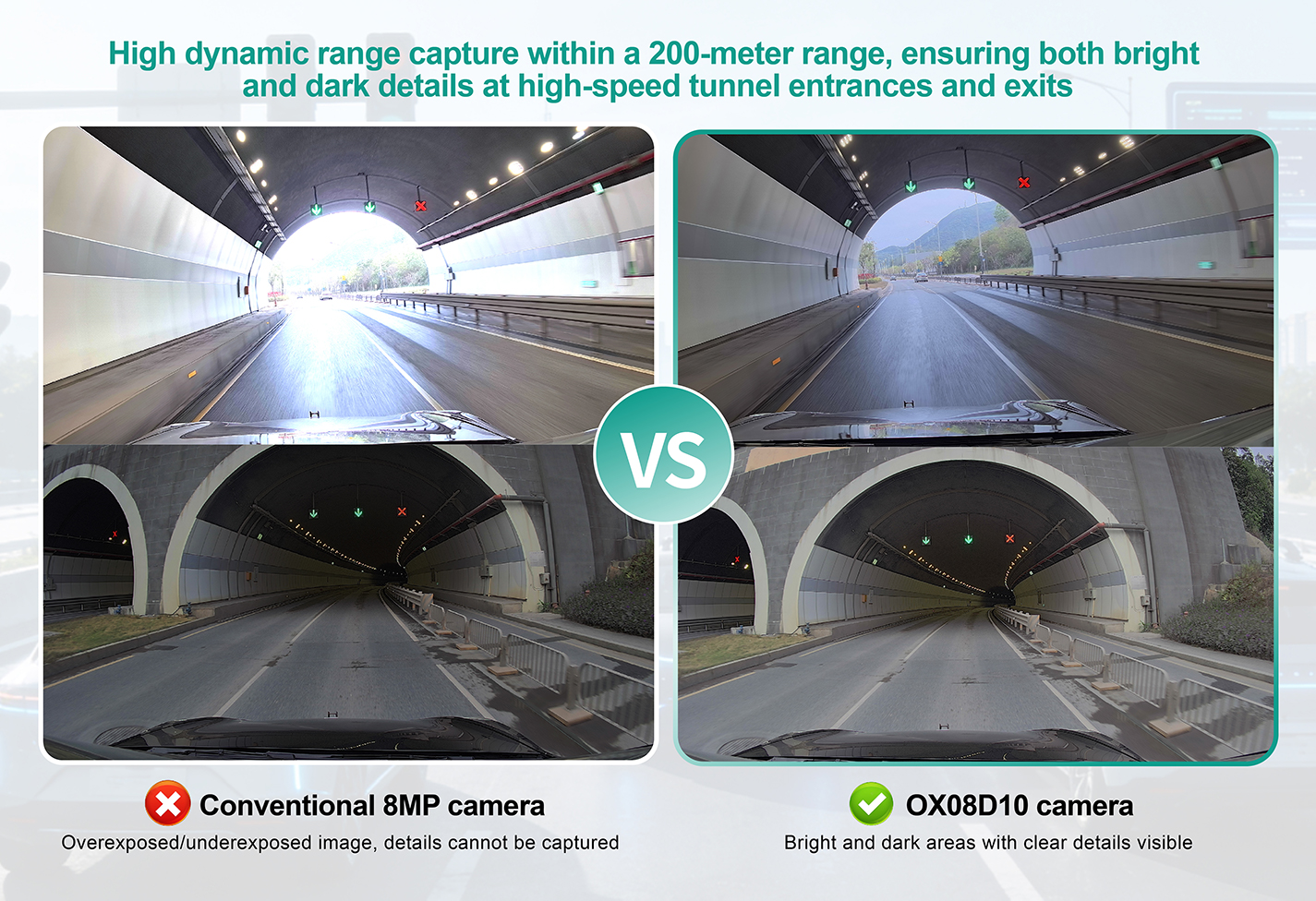

Superior HDR Performance – Effortless Handling of Complex Lighting

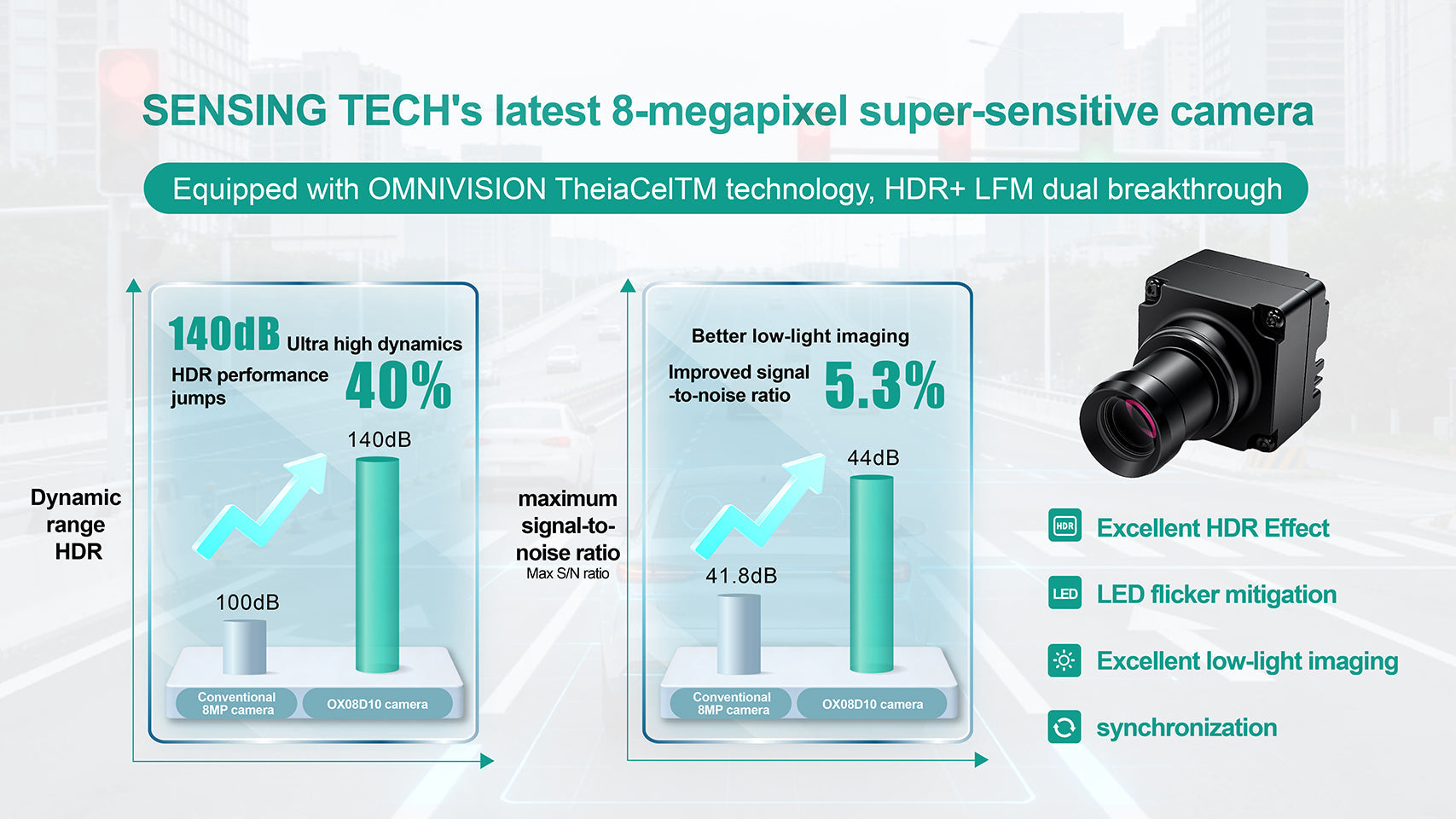

Thanks to TheiaCel™ technology, the OX08D10 captures high dynamic range images within a 200m range, achieving an optimal balance between SNR1 and dynamic range. Combined with SENSING TECH’s professional image tuning, the SG8-OX08DC series retains rich detail in both highlight and shadow areas even in extreme lighting scenarios such as tunnel entrances/exits and nighttime high-beam exposure, significantly improving the perception reliability of ADAS front-view vision.
Leading LFM Performance – Complete Elimination of LED Flickering Issues
Conventional rolling shutter sensors are prone to LED “black-out” or flickering when facing traffic signals, creating safety hazards. The OX08D10 leverages the synergy between LOFIC and DCG™ technology to deliver industry-leading LED flicker mitigation (LFM). This enables the SG8-OX08DC series to stably capture the true state of LED light sources under various ambient lighting conditions, providing precise traffic signal perception for urban road scenarios.

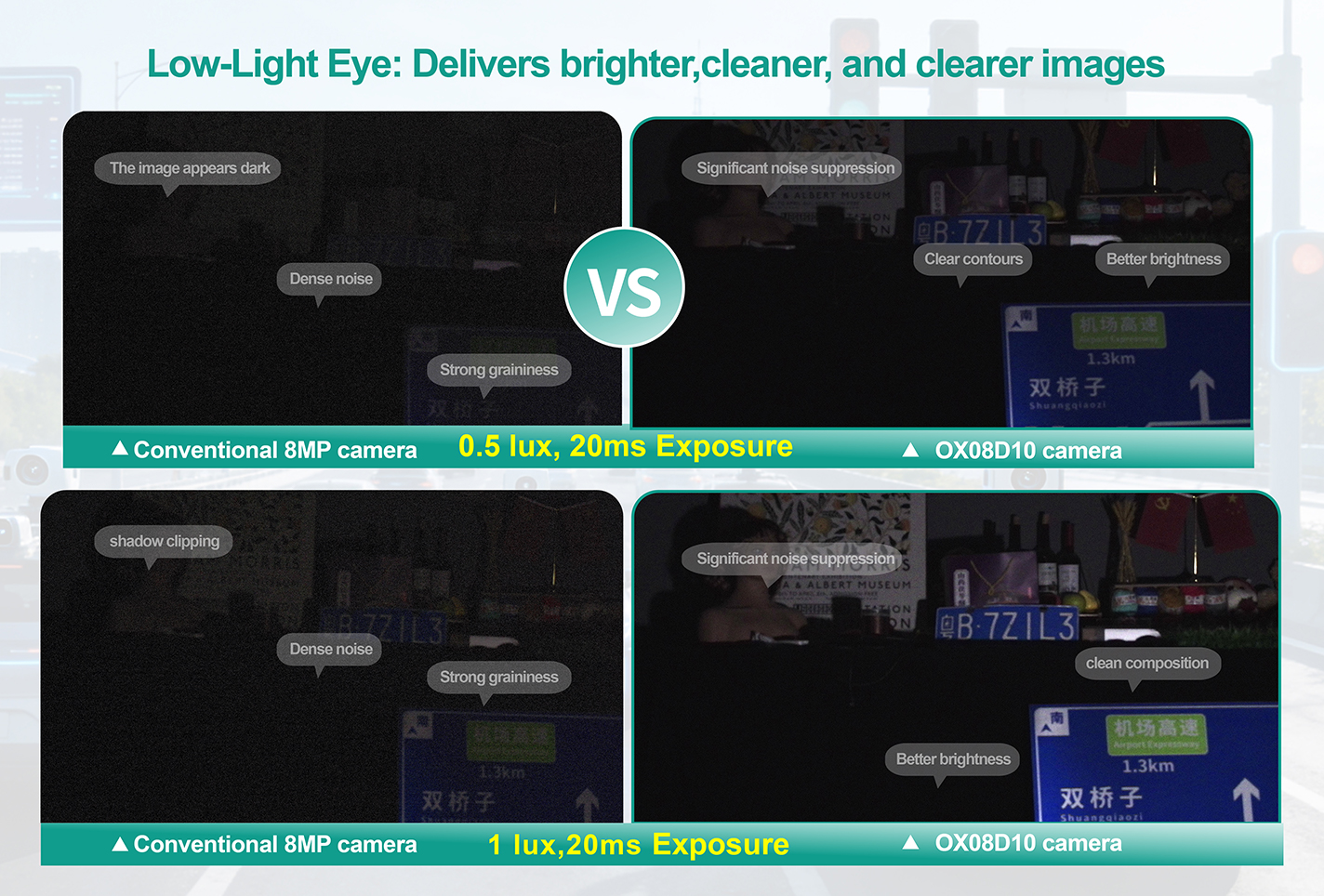

Excellent Low-Light Imaging – All-Weather Perception Quality
In low-light environments such as nighttime, tunnels, and underground garages, the SG8-OX08DC series maintains industry-leading low-light image quality, ensuring that vision algorithms can still perform effective object detection under insufficient illumination, thereby extending the all-weather applicability of intelligent driving systems.
Automotive-Grade Design – Ready for Front-View Challenges
Designed as an automotive-grade module for harsh environments, the SG8-OX08DC series excels in hardware reliability:

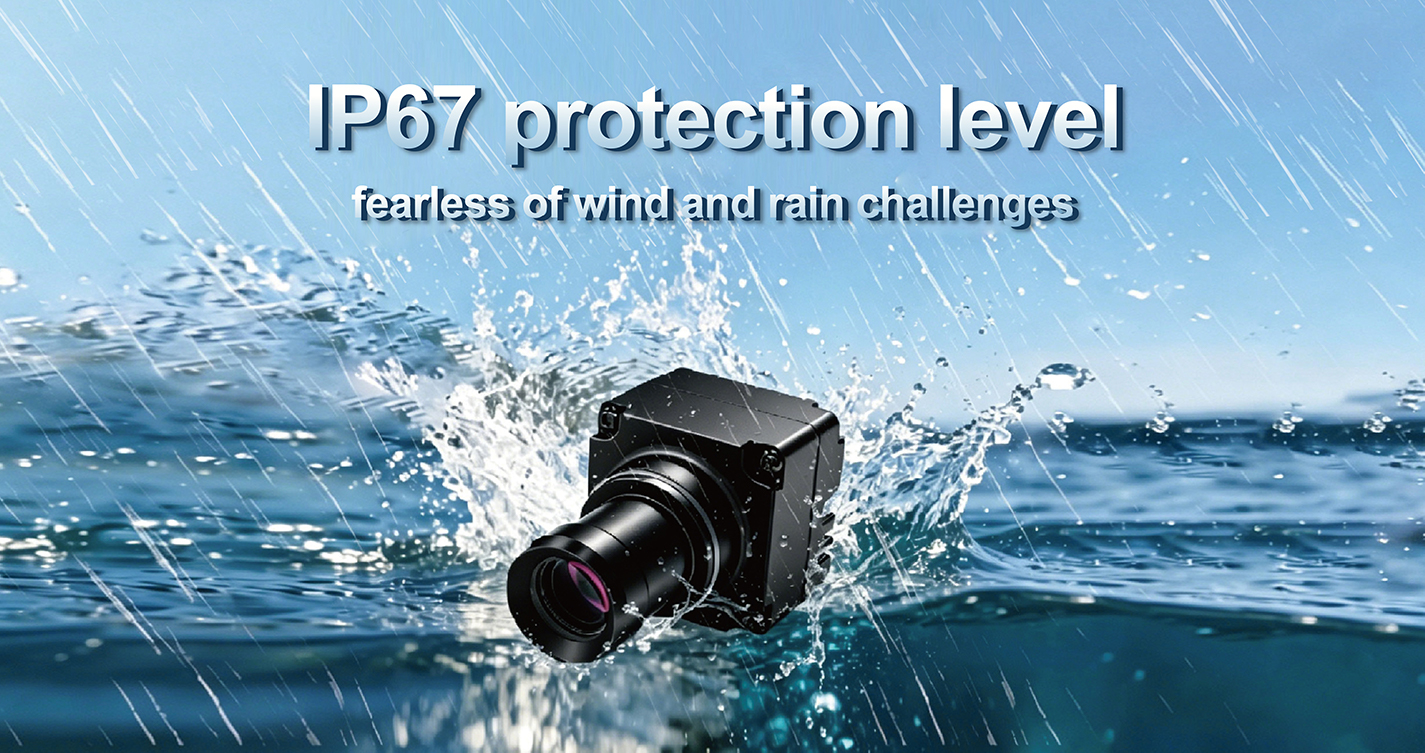

Automotive-Grade Protection: The entire module achieves an IP67 protection rating, equipped with AA automotive-grade lenses, offering excellent dust and water resistance suitable for various complex driving environments.
Multi-Camera Synchronization: Supports external trigger and multi-camera synchronization, meeting the stringent time synchronization requirements of multi-sensor fusion systems and simplifying the development and integration of front-view multi-camera vision systems.

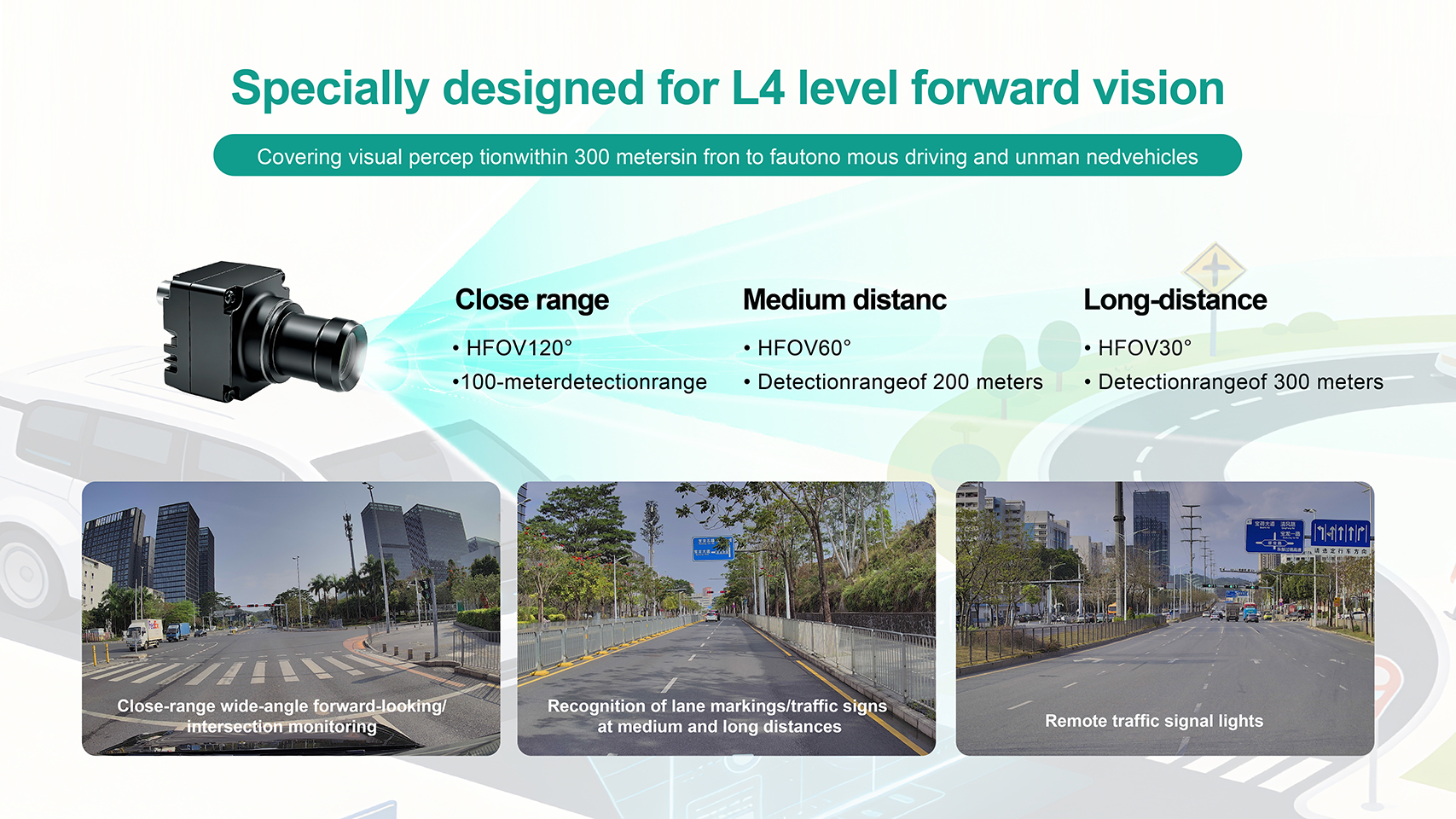

Multiple FOV Options: Available in various field-of-view specifications to flexibly match different front-view perception needs.
Deep Compatibility to Accelerate Thor Integration
The SG8-OX08DC series has already been integrated into the NVIDIA Drive Thor platform. Leveraging the high AI computing power of the Thor platform, it fully unleashes the high-resolution advantages of the 8MP image sensor, providing high-quality, low-latency image data input for advanced intelligent driving algorithms.
This deep hardware-software synergy offers an efficient and reliable front-view perception reference design for intelligent driving systems, significantly shortening system integration and algorithm deployment cycles.
Wide Applicability – Empowering Next-Generation Intelligent Systems
With its high performance and high reliability, the SENSING TECH SG8-OX08DC series is specifically designed for front-view exterior applications and can be widely used in front-view ADAS and vision fusion systems, high dynamic front-view perception, and more.
As autonomous driving levels advance and sensor fusion technologies mature, high-quality, high-dynamic, and highly reliable front-view image perception is becoming a decisive factor for system safety. The launch of this camera module series provides the industry with a mature front-view vision product that truly copes with complex road scenarios and delivers all-weather, precise perception.
SENSING TECH – Illuminating the Future of Intelligent Driving with New Vision!
