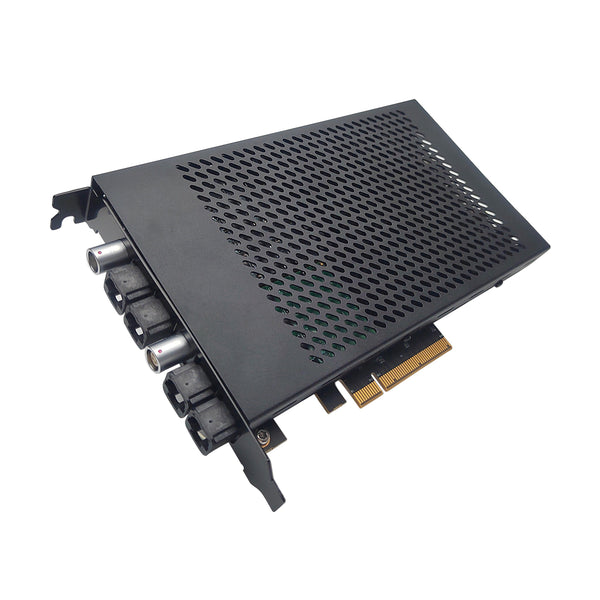

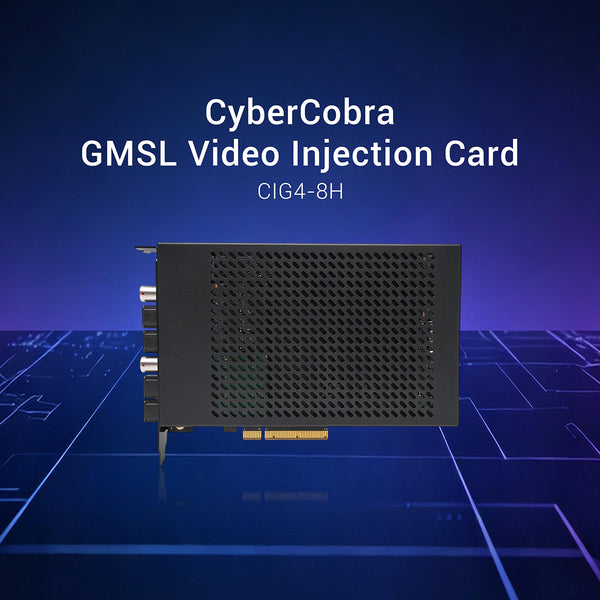

• Model : CIG4-8H
• Processor : Xilinx ZU+ system processor
• On Board Memory : 6 GByte DDR4-RAM
• PC Bus Interface : PCI Express x8 (Gen 3)
• Standard : GMSL
• Serializer : MAX9296A/MAX96712/MAX96724…

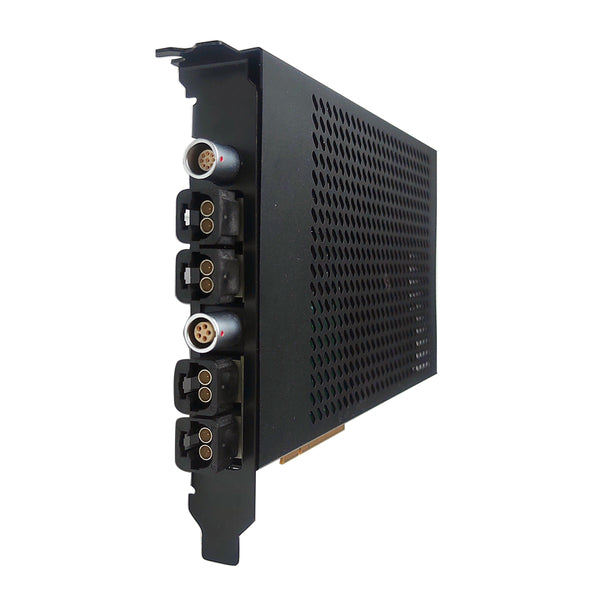

• Coax Cable Model : Amphenol Min-fakra Dual
• Video Out Support : 8 video output
• Video Resolution : 1-8Mega pixel
• Video Format :  8 bit (YUV422), 10/12/14 bit (RAW)
• Data Bandwidth :  6 Gbps per cable
• Operating System : Linux 64-bit Ubuntu18.04/20.04
• Software Tools : Documentation, SDK
• Operating Temperature : -20°C to 70°C
• Storage Temperature :  -40°C up to 85°C

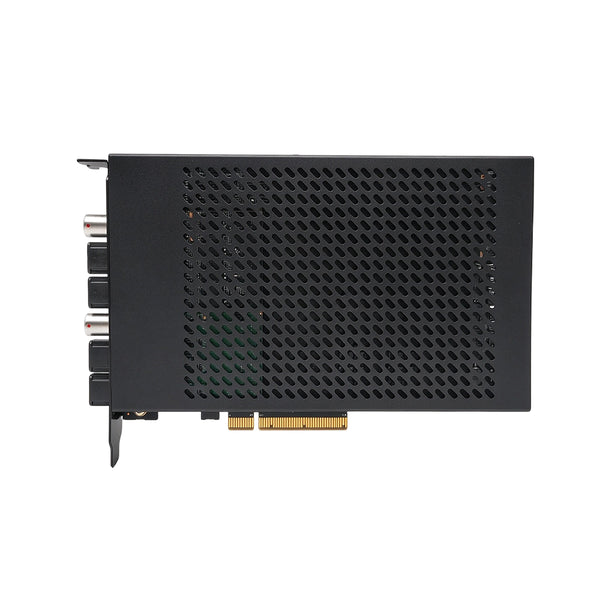

• Dimensions : 167.64mm * 111.15 mm
• Weight :  300g

Features

• 8 channel GMSL output, support up to 8 MP@ 30 fps
• Support output formats: YUV422 and RAW10/RAW12/RAW14
• MAX9295A serializer, support 3G/6G mode switching and POC power supply
• PCIe Gen3*8lane bus
• Support synchronous output trigger by the board card or by the ECU
• Support Simulate sensor to interact with ECU

Typical Applications

Domain-controller image reinjection and simulation test platform

• Support user to inject video data of the hard disk
• Support user to inject video data rendered by GPU graphics card emulation
• Support for external trigger signals to control the simultaneous output of all channels
• Support synchronized output according to timestamp
