5MP Global shutter Stereo Camera
$549.00 USD
In stock!
Overview

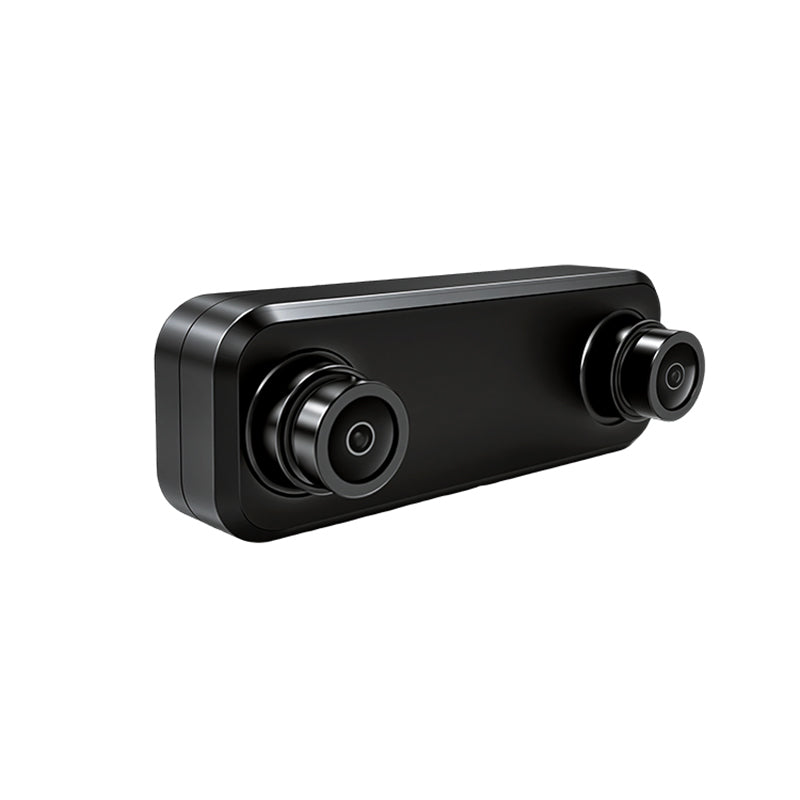

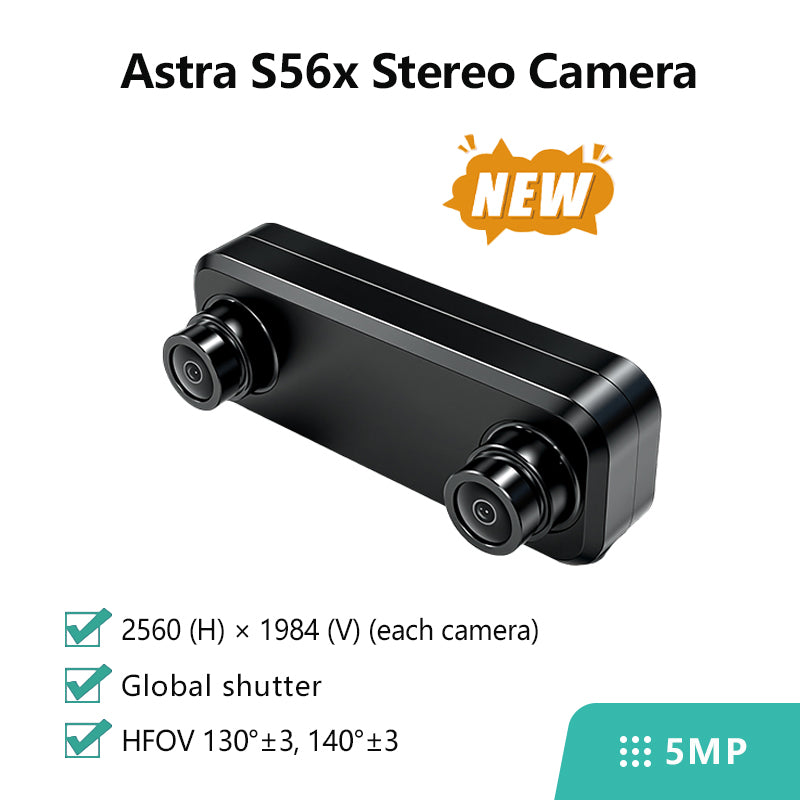

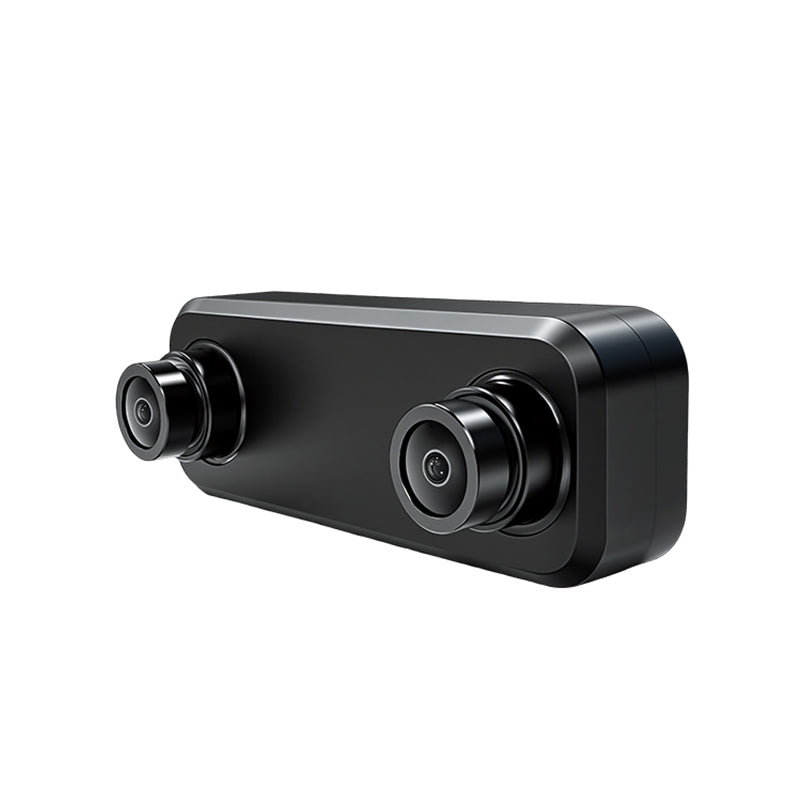

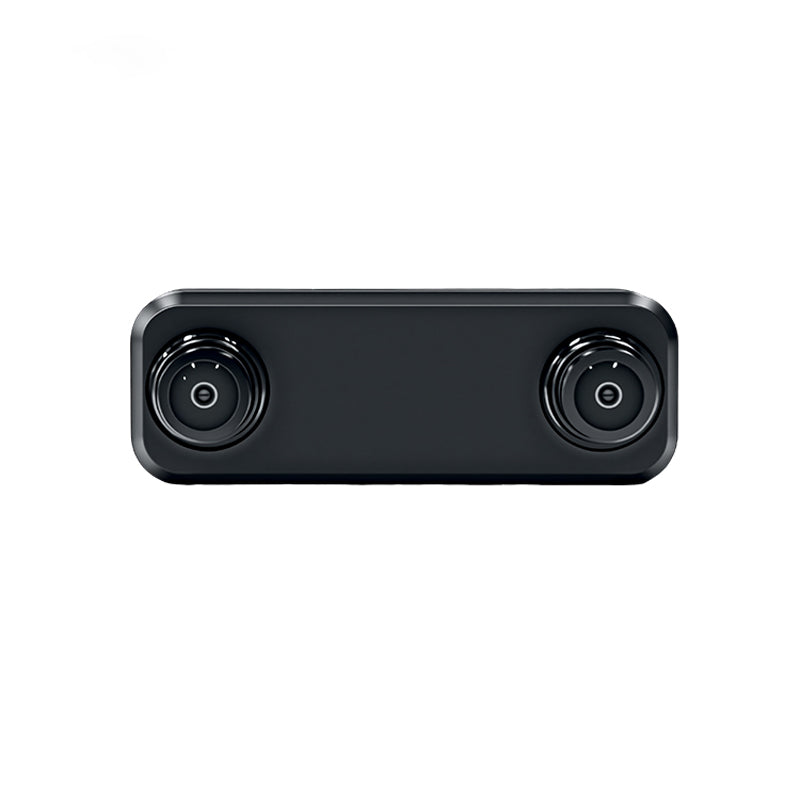

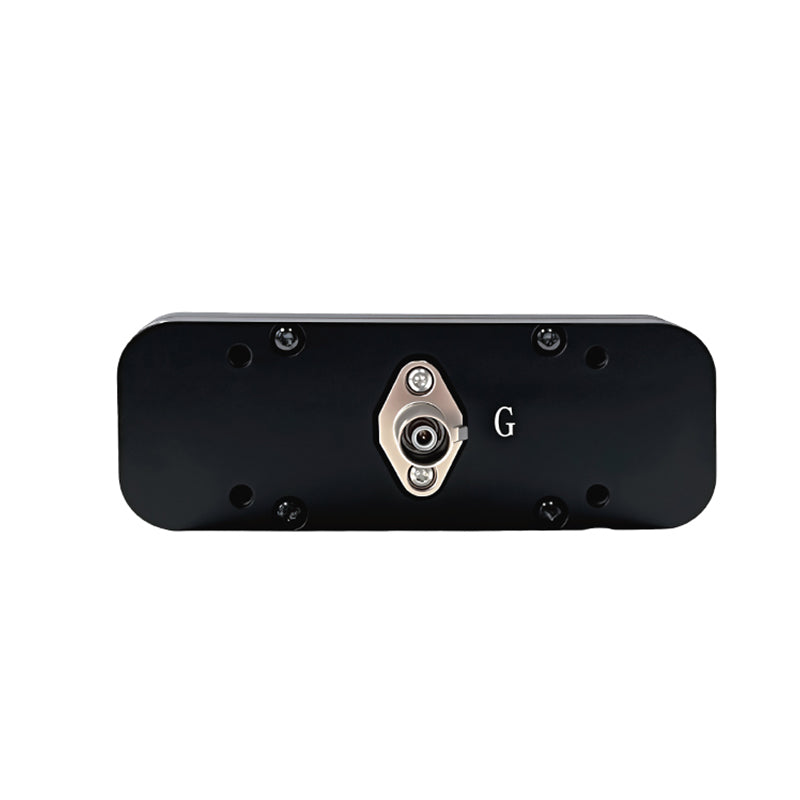

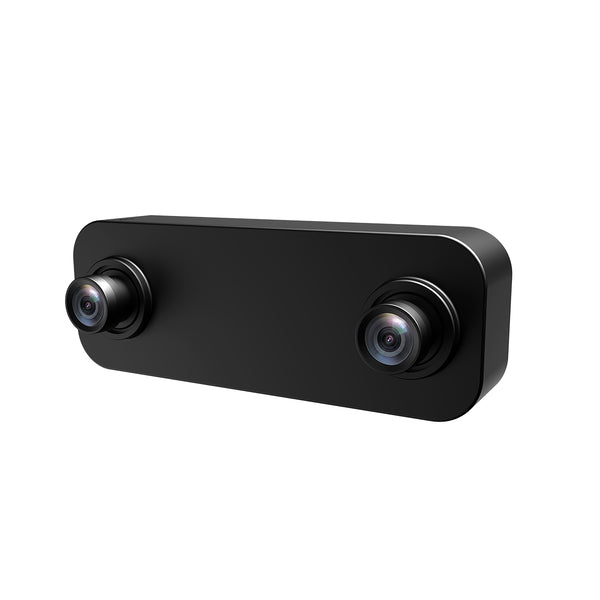

The Astra S56x camera system features two 5MP Global Shutter image sensors and a GMSL2 highly reliable serial interface. It is also equipped with a 6-axis IMU sensor, with a baseline of 60mm.
Specifications
- Model : Astra S56x
- Resolution : 2560 (H) × 1984 (V) (each camera)
- Frame Rate : 2560 × 1984 @30FPS (each camera)
- Output data : 10-bit RAW
- Sensor Type : Global shutter
- Interface : GMSL2
- Operating temp.range : -40-85℃
- Dimensions : 30mm*84mm
- HFOV : 130°±3°, H140°±3°
- Weight : ＜200g
- Dimensions 30mm*84mm*35.8mm
Features
- HFOV 130°±3°/ H140°±3°
- GMSL2 coaxial long-distance transmission
- Global Shutter
- Stereo trigger synchronization
- Equipped with a 6-axis IMU sensorApplication
Application
- Humanoid Robot
- Depth computation
- VLA
- Data collection
Model and Lens
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
Thank you for choosing our product. We will provide you with 1 year of free after-sales service.
If you encounter any technical problems during installation or use, please feel free to consult our customer service, and we will provide you with comprehensive technical services.
For product quality defects caused by product design and manufacturing reasons, our company will replace similar products for you free of charge, and the resulting costs will be borne by our company.
