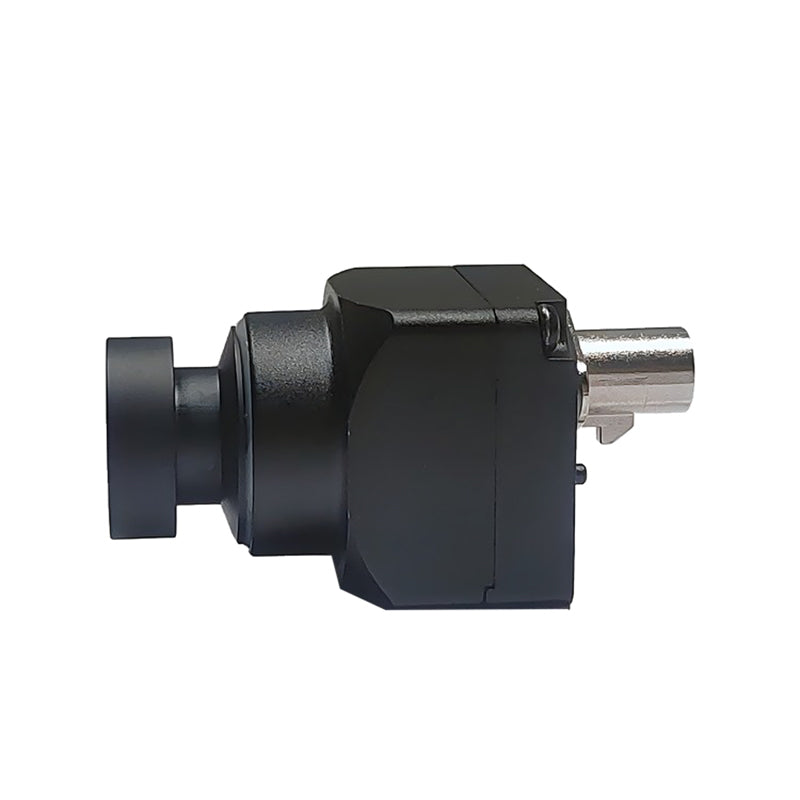

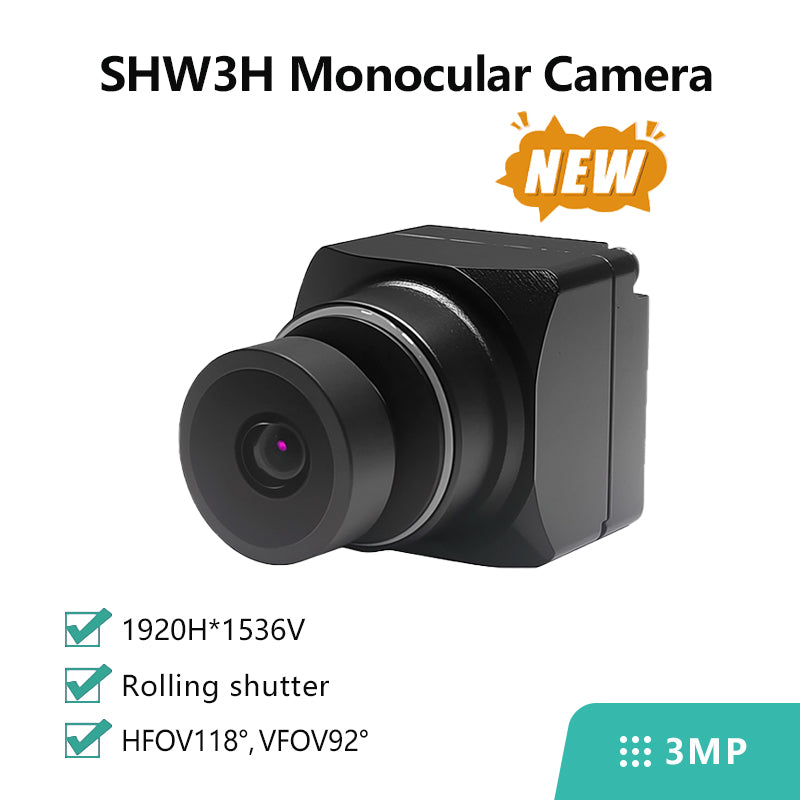

3MP Rolling Shutter Monocular Camera SHW3H
$459.00 USD
In stock!
VOverview
SHW3H Monocular camera module is specially designed for embodied intelligent applications. It uses a 3MP high dynamic and high frame rate sensor, featuring high-quality image effects that have been professionally image-tuned. It is equipped with a full glass wide-angle lens and is guaranteed for product consistency through high-precision AA technology. It is suitable for applications such as robot perception and recognition.
Specifications
- Model : SHW3H
- Resolution : 1920H*1536V
- Frame Rate : 1920*1536@60fps
- Sensor : RGGB
- ISP : Built-in
- HDR : Max140dB
- Shutter : Rolling Shutter
- Camera Interface : GMSL2

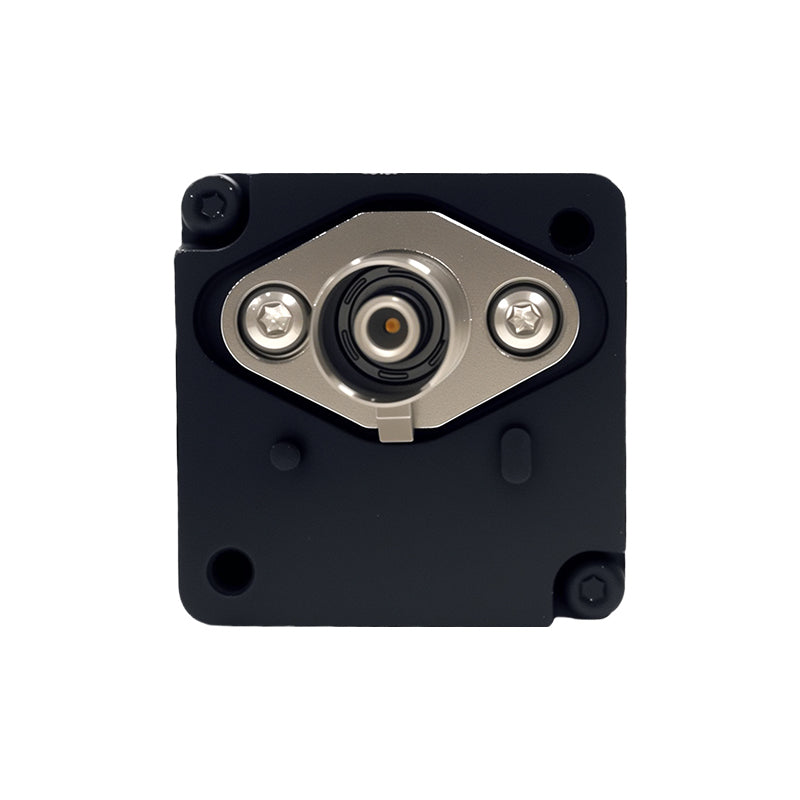

- Connector : Amphenol Fakra（Z Code ）
- Output data : YUV422@8bit
- Operating temp.range : -40°C～+85°C
- Dimensions : 25mm*25mm*37.55mm
- Weight : <50g
- HFOV : 118°
Features
- Output uncompressed YUV data
- HDR
- Low latency
- Support external triggering
- Multi−Camera synchronization Support
- 60FPS High frame rate
Application
- Humanoid Robot
Model and Lens
Dimensions
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
Thank you for choosing our product. We will provide you with 1 year of free after-sales service.
If you encounter any technical problems during installation or use, please feel free to consult our customer service, and we will provide you with comprehensive technical services.
For product quality defects caused by product design and manufacturing reasons, our company will replace similar products for you free of charge, and the resulting costs will be borne by our company.
For high volume order, please email sales@sensing-world.com
