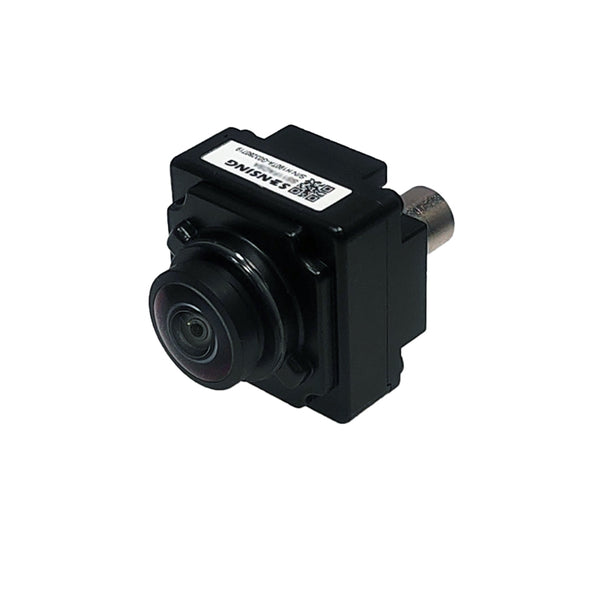

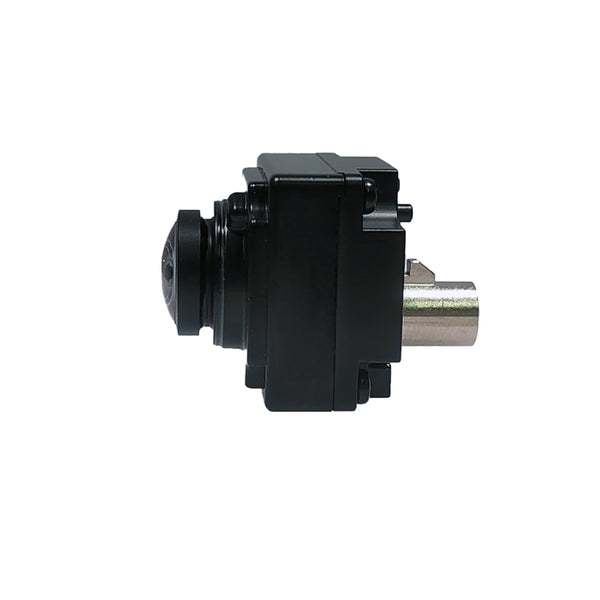

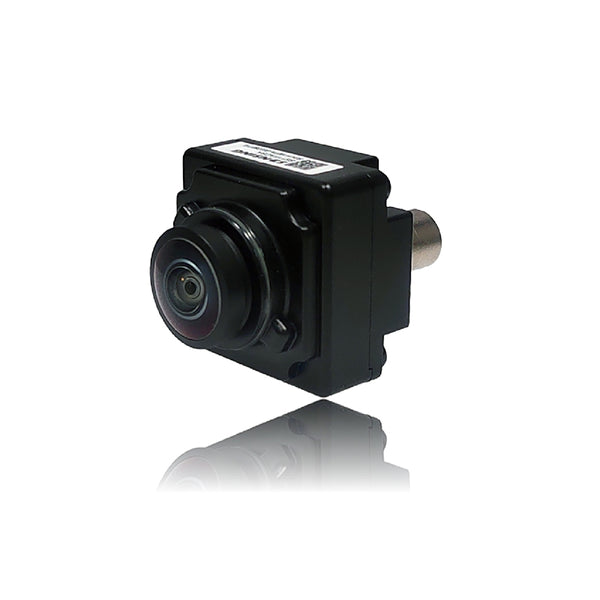

SG1S-OX01F10C-G1G-Hxxx is equipped with OMNIVSION CMOS image sensor OX01F10 and Maxim GMSL. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure.
Feature
-
1MP Resolution & Clear Vision: Equipped with the OmniVision 1.3MP OX01F10 CMOS sensor with built-in ISP, it outputs 1280×960 at 30 fps with 3μm pixels, delivering clear, high-quality imagery for ADAS, autonomous driving, and robotics applications.
-
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under extreme lighting changes, effectively enhancing environmental adaptability for perception systems.
-
GMSL Transmission & Multi‑Camera Sync: Adopting the Maxim GMSL serializer (MAX96701) for high‑speed, uncompressed YUV422 data transmission, while supporting external trigger and multi‑camera frame synchronization.
-
Reliability & IP67 Protection: Operating from –40 °C to +85 °C with an IP67‑rated waterproof and dustproof housing, it performs reliably in harsh environments such as automotive, industrial, and outdoor robotics.
-
Ultra‑Compact & Flexible Design: With dimensions of just 25×25×13.9mm and weight under 50g, it fits easily into space‑constrained installations. Available with a 190° ultra‑wide‑angle lens to suit diverse field‑of‑view coverage needs.
Specification
| Product |
SG1S-OX01F10C-G1G-Hxxx |
| Sensor |
OMNIVSION 1.3MP OX01F10 RGGB
|
|
|
|
|
|
1280*960@30fps
|
|
HDR Support
|
Yes
|
|
LEM
|
Yes
|
|
ISP
|
|
|
Output data
|
|
|
Serializer
|
|
|
|
|
|
Power Supply
|
|
|
Current
|
<150mA@12VDC
|
|
Connector
|
|
|
Operating temp. range
|
-40~+85℃
|
|
Dimensions
|
W: 25mm, L:25mm, H:13.9mm
|
|
|
|
Lens Spec & Dimensions
|
Model
|
HFOV
|
VFOV |
FNO
|
|
|
|
|
|
SG1S-OX01F10C-G1G-H190TA
|
|
|
|
|
|
|
|
Note: This icon indicates the imaging direction is positive.
Application
-
Automation
-
ADAS + Viewing Fusion
-
Autonomous Driving
-
Robotics
