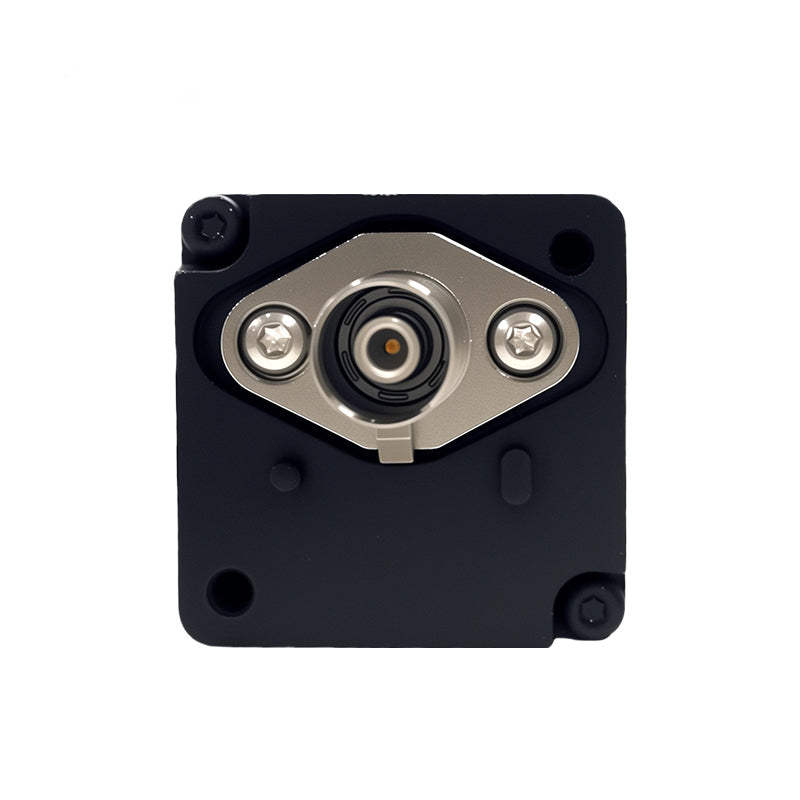

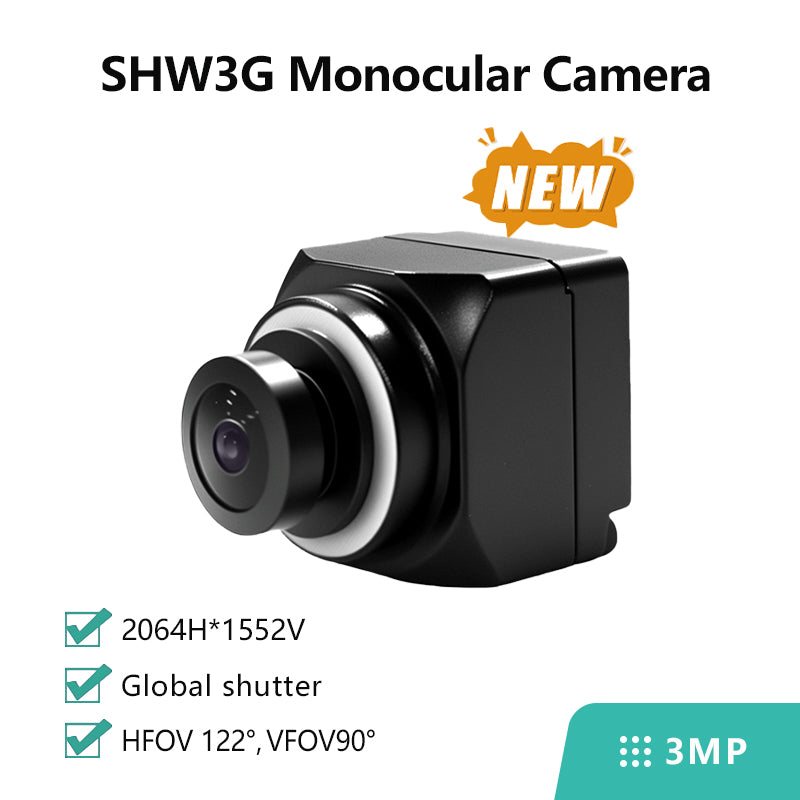

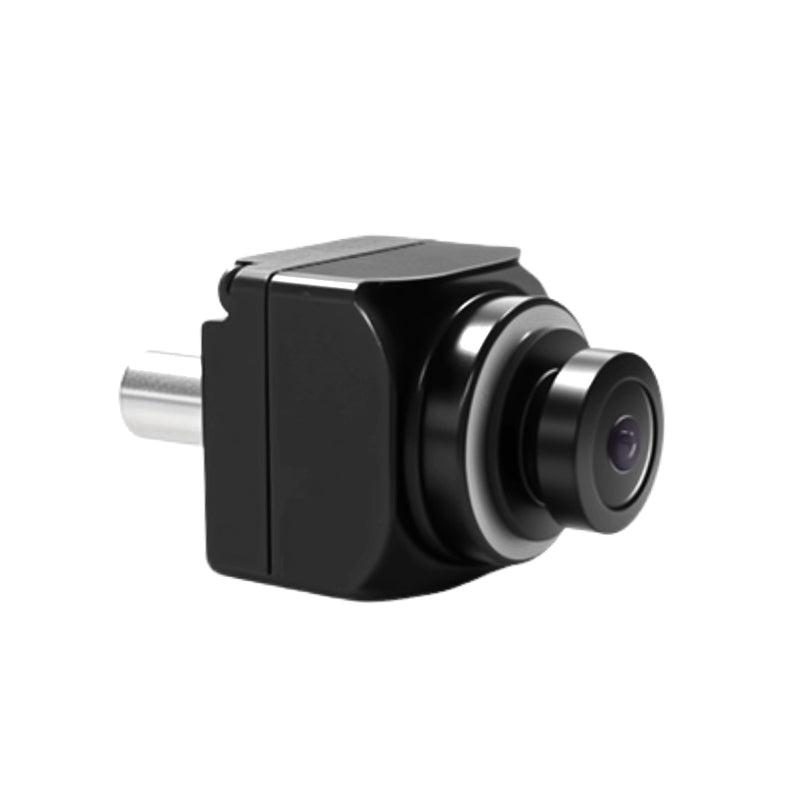

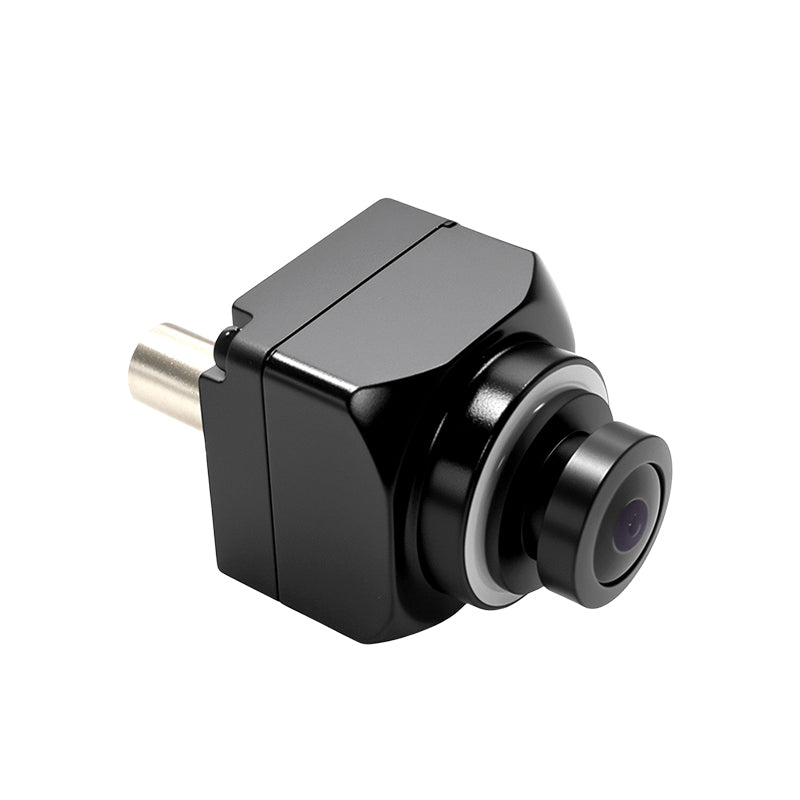

3MP Global Shutter Monocular Camera SHW3G
$459.00 USD
In stock!
VOverview
SHW3G Monocular camera module is specially designed for physical intelligence applications. It features a 3MP Global Shutter sensor, the GMSL2 high-reliability interface, and a 25×25mm compact wide-angle lens. For application scenarios like robot perception and recognition, it can be installed on humanoid robots in positions such as the head or trunk.
Specifications
- Model : SHW3G
- Resolution : 2064H*1552V
- Frame Rate : MAX125fps
- Sensor : RGGB
- Shutter : Global Shutter
- Camera Interface : GMSL2
- Connector : Amphenol Fakra（Z Code ）
- Output data : RAW@12bit/10bit/8bit
- Serializer : MAXIM MAX96717G
- Operating temp.range : -30°C～+70°C
- Dimensions : 25mm*25mm*32.13mm
- Weight : <50g
- HFOV : 122°
Features
- Global Shutter
- Low latency
- External trigger support
- Multi−Camera synchronization Support
- High-reliability GMSL2 interface
Application
- Humanoid Robot
Model and Lens
Dimensions
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
