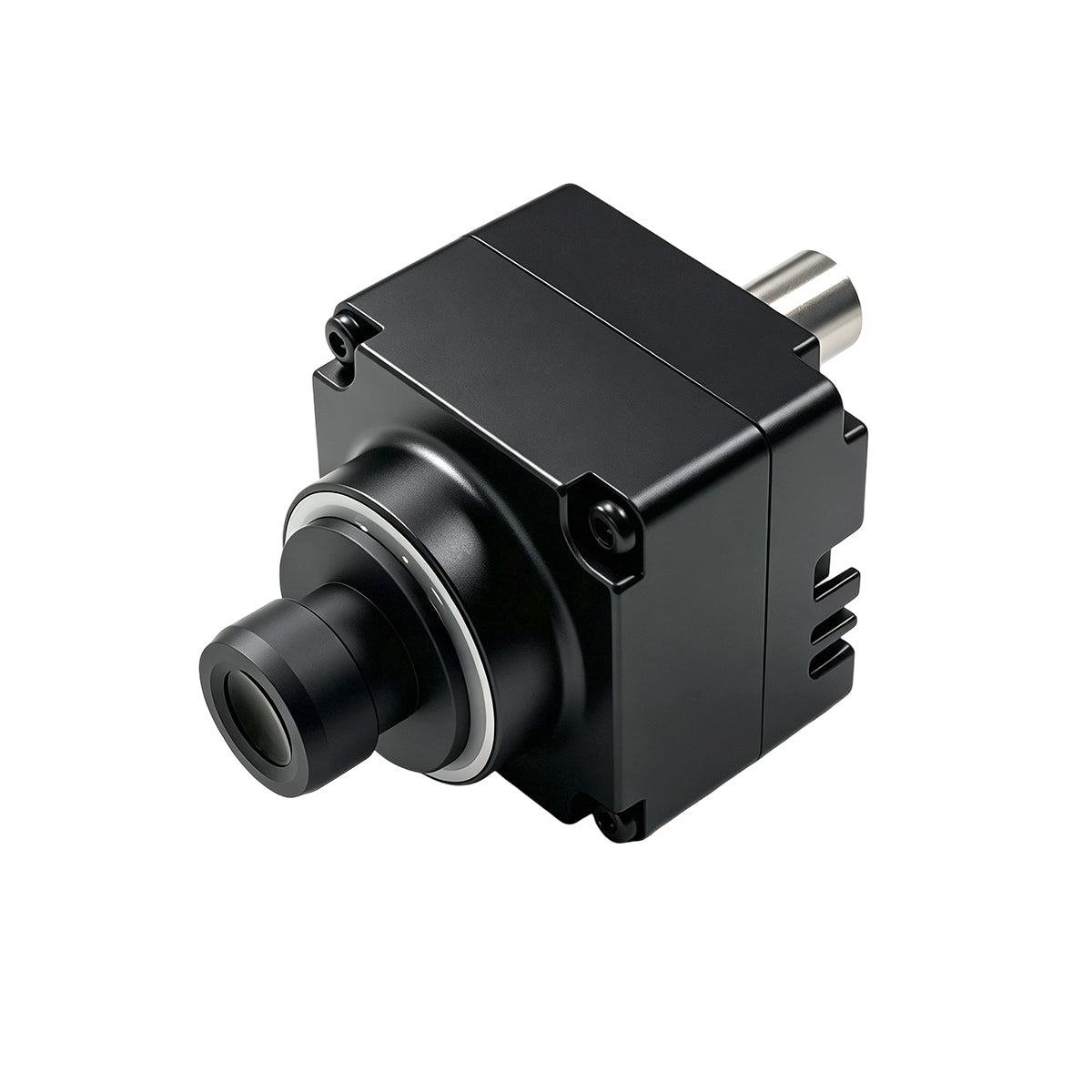

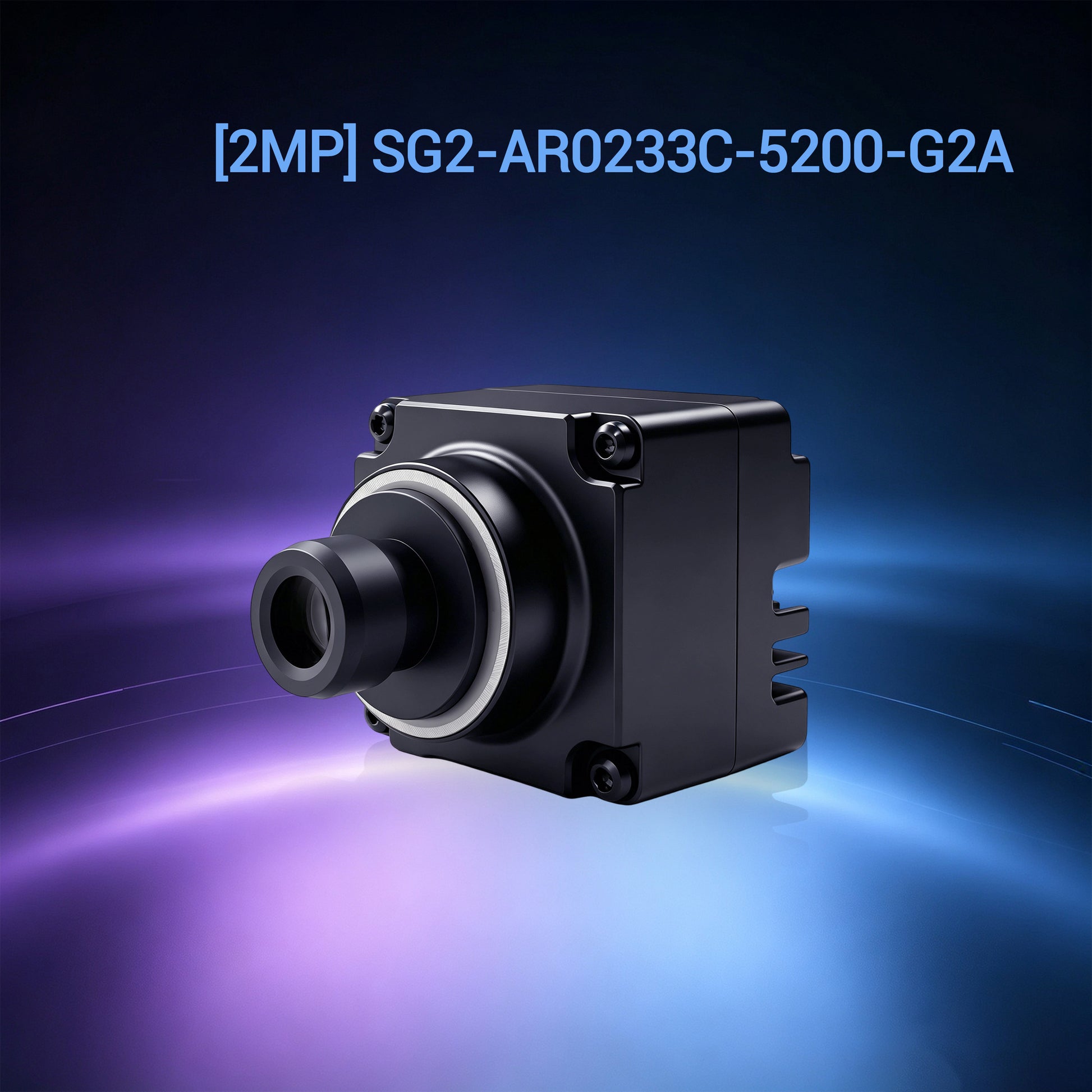

SG2-AR0233C-5200-G2A-Hxxx camera module is equipped with ONSEMI CMOS image sensor AR0233 and Maxim GMSL2. It has an automotive-grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with a M-mount or AA lens that is focused and glued in our factory.

Feature

2MP Resolution & Clear Vision: Equipped with the Onsemi 2.6MP AR0233 CMOS sensor and GW5200 ISP, it outputs 1920×1080 at 30 fps with 3μm pixels, delivering clear, high-quality imagery for ADAS, autonomous driving, and robotics applications.
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under extreme lighting changes, effectively enhancing environmental adaptability for perception systems.
GMSL2 Transmission & Multi‑Camera Sync: Adopting the Maxim GMSL2 serializer (MAX9295A) with up to 6 Gbps bandwidth, it ensures real‑time, uncompressed YUV422 data transmission, while supporting external trigger and multi‑camera frame synchronization.
Reliability & IP67 Protection: Operating from –40 °C to +85 °C with an IP67‑rated waterproof and dustproof housing, it performs reliably in harsh environments such as automotive, industrial, and outdoor robotics.
Flexible Options & Platform Compatibility: Multiple lens options (30°, 60°, 100°, 120°, 190°) are available to suit diverse distance and field‑of‑view coverage needs.

Specification

Product	SG2-AR0233C-5200-G2A-Hxxx
Sensor	ONSEMI 2.6MP AR0233 RGGB
Output Pixels	1920H*1080V
Frame Rate	1920*1080@30fps
HDR Support	Yes
LEM	Yes
ISP	GW5200
Output data	YUV422@8bit
Serializer	MAXIM MAX9295A
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<150mA@12VDC

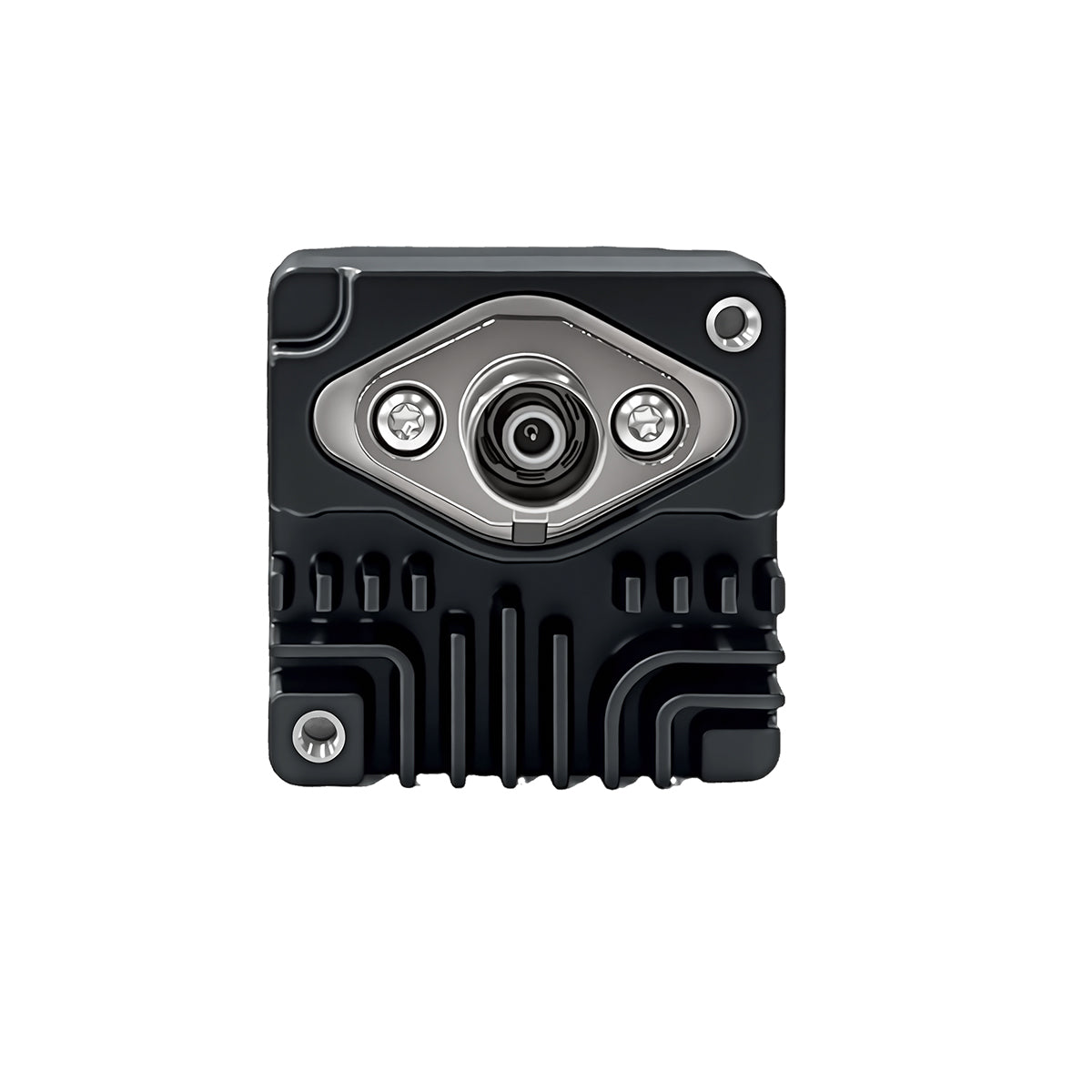

Connector	Amphenol Fakra（Z Code ）
Operating temp. range	-40~+85℃
Dimensions	W: 30mm, L:30mm, H:22.5mm
Weight	<50g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	Max Optical Distortion	EFL (mm)	Water- proof	Lens Mount
SG2-AR0233C-5200-G2A-H30X	28°	16°	1.6	-2%	10.96	IP67	M12
SG2-AR0233C-5200-G2A-H60FA	60°	32°	1.6	-21.5%	5.8	IP67	AA
SG2-AR0233C-5200-G2A-H100F1A	100°	53°	1.6	-45%	3.55	IP67	AA
SG2-AR0233C-5200-G2A-H120UA	118.4°	62.6°	2.0	-62%	3.04	IP67	AA
SG2-AR0233C-5200-G2A-H190XA	196°	112°	2.0	-155%	1.51	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

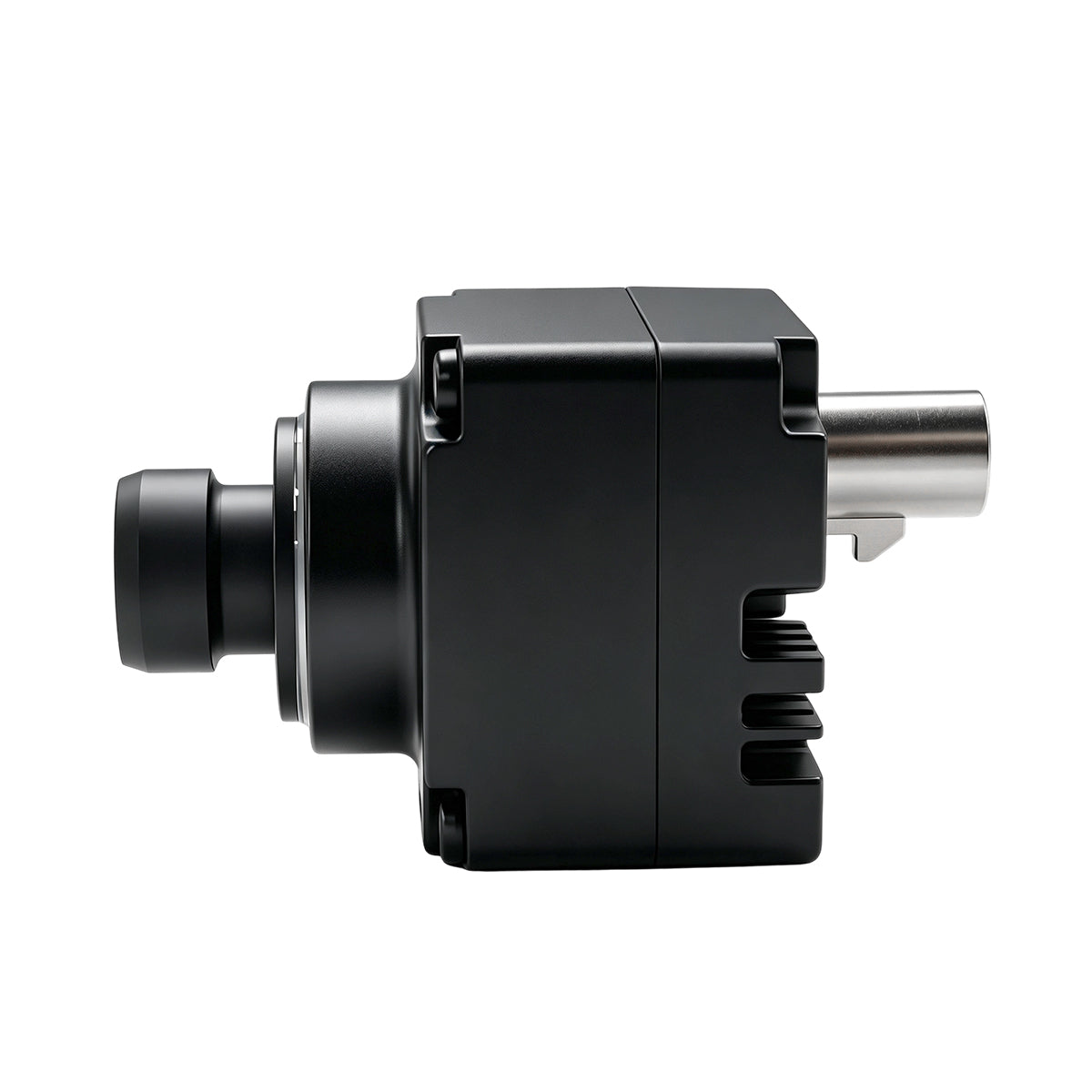

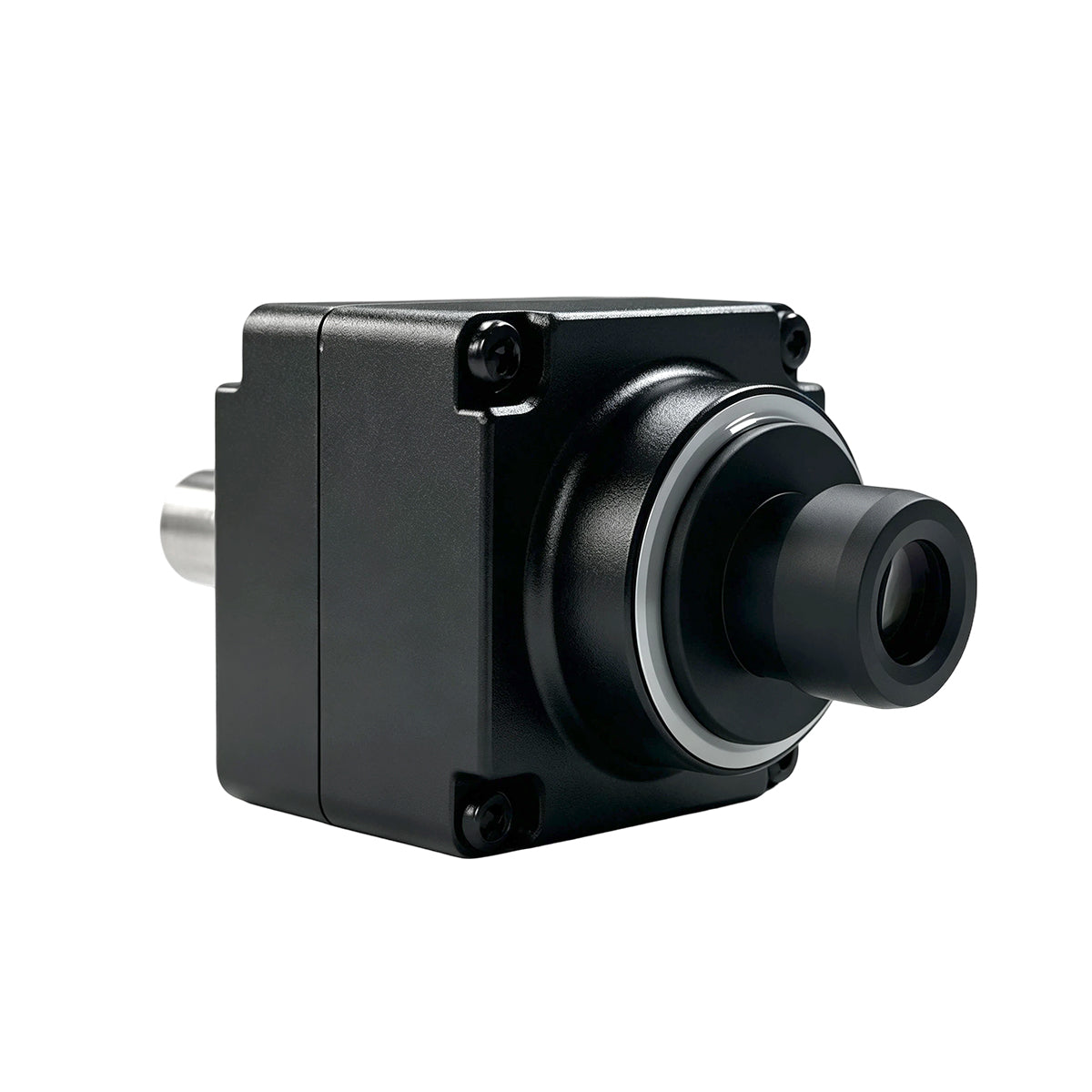

2MP AR0233 with ISP GMSL2 Camera

SG2‑AR0233C‑5200‑G2A‑Hxxx is specially designed for automotive applications. It integrates the ONSEMI AR0233 CMOS sensor with a Maxim GMSL2 interface, and features a well‑tuned ISP that delivers exceptional image quality. The module is IP67‑rated and comes with an M‑mount or AA lens that is precisely focused and factory‑glued, ensuring high reliability and consistent performance.

$459.00

Shipping & duties calculated at checkout.

Part No: SG2-AR0233C-5200-G2A-H60FA
