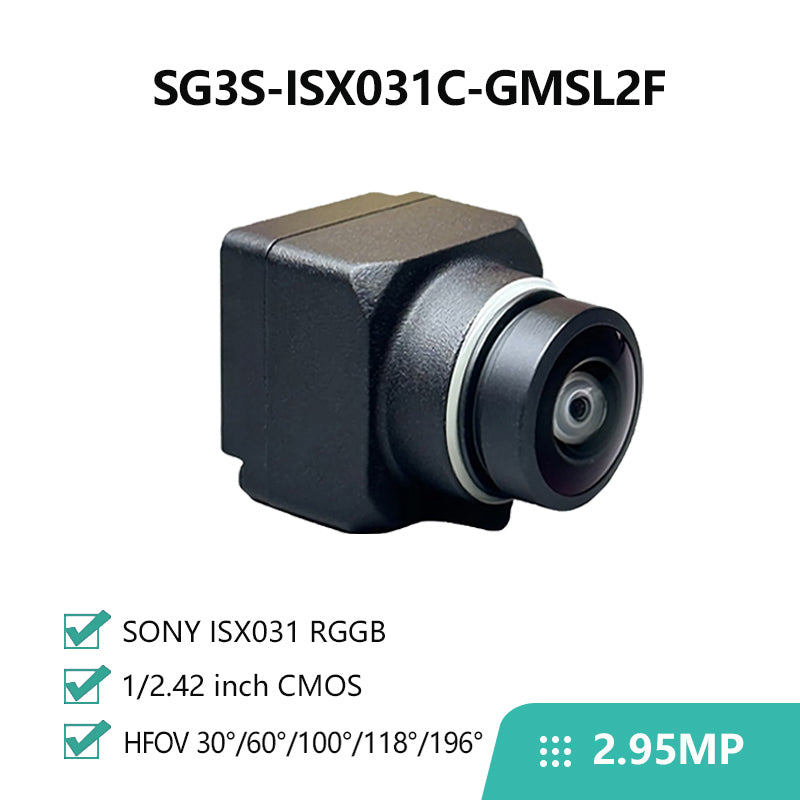

SG3S-ISX031C-GMSL2F-Hxxx camera module is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure–is supplied with an AA lens that is focused and glued in our factory.

Feature

3MP Resolution & Clear Vision: Equipped with the SONY 2.95MP ISX031 CMOS sensor and built‑in ISP, it outputs 1920×1536 at 30 fps with 3μm pixels, delivering exceptional image quality for ADAS, autonomous driving, and robotics applications.
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under extreme lighting changes, effectively enhancing environmental adaptability for perception systems.
GMSL2 Transmission & Multi‑Camera Sync: Adopting the Maxim GMSL2 serializer (MAX96717F) with up to 3 Gbps bandwidth, it ensures real‑time, uncompressed YUV422 data transmission, while supporting external trigger and multi‑camera frame synchronization.
Reliability & IP67 Protection: Operating from –40 °C to +85 °C with an IP67‑rated waterproof and dustproof housing, it performs reliably in harsh environments such as automotive, industrial, and outdoor robotics.
Flexible Options & Platform Compatibility: Multiple lens options are available to suit diverse distance and field‑of‑view coverage needs.

Specification

Product	SG3S-ISX031C-GMSL2F-Hxxx
Sensor	SONY 2.95MP ISX031 RGGB
Output Pixels	1920H*1536V
Frame Rate	1920*1536@30fps
HDR Support	Yes
LEM	Yes
ISP	Built-in
Output data	YUV422@8bit
Serializer	MAXIM MAX96717F
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<200mA@12VDC

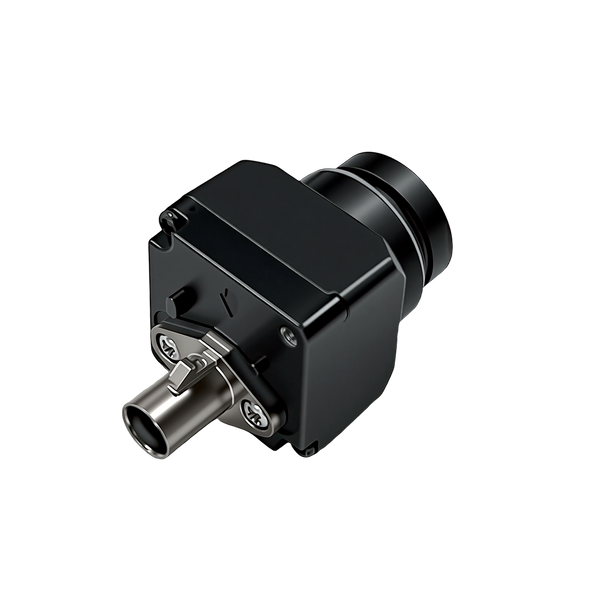

Connector	Amphenol Fakra Z Code (Camera)
Operating temp. range	-40~+85℃
Dimensions	W: 25mm, L:25mm, H:18.6mm
Weight	<50g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	Max Optical Distortion	Water- proof	Lens Mount
SG3S-ISX031C-GMSL2F-H30X	30°	24°	1.6	-2.5%	IP67	M12
SG3S-ISX031C-GMSL2F-H60FA	60°	46°	1.6	-21%	IP67	AA
SG3S-ISX031C-GMSL2F-H100F1A	100°	78°	1.6	-58%	IP67	AA
SG3S-ISX031C-GMSL2F-H120UA	118°	92°	2.0	-92%	IP67	AA
SG3S-ISX031C-GMSL2F-H190XA	196°	154°	2.0	-155%	IP67	AA

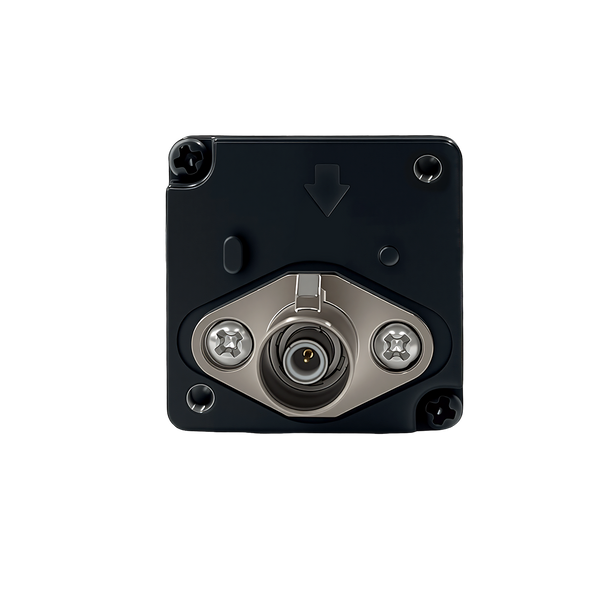

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

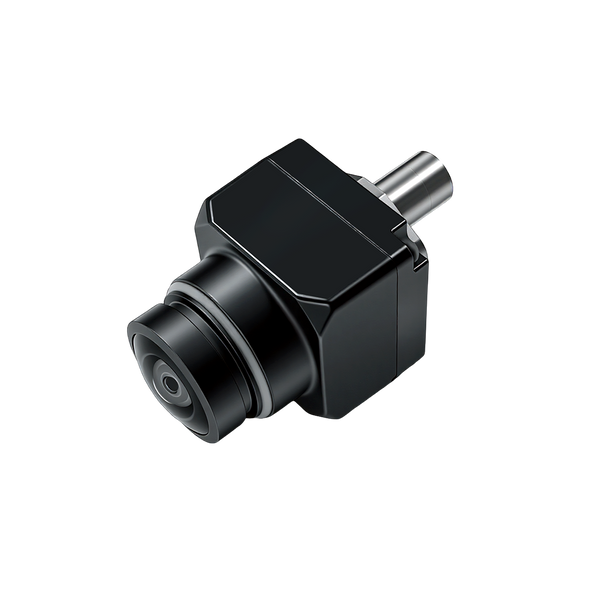

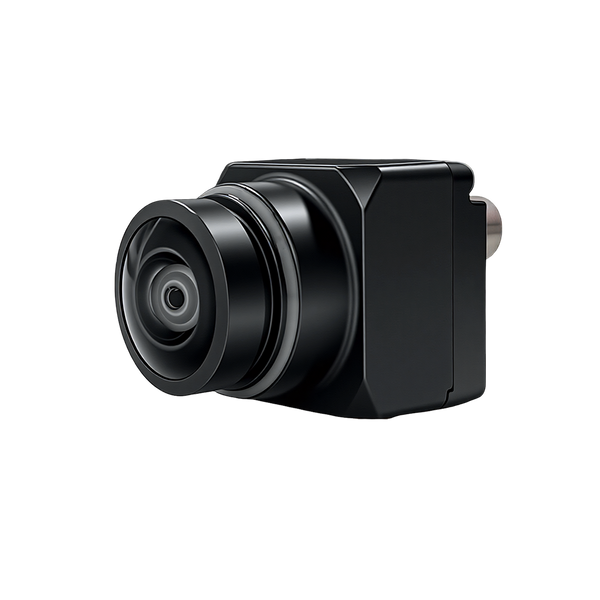

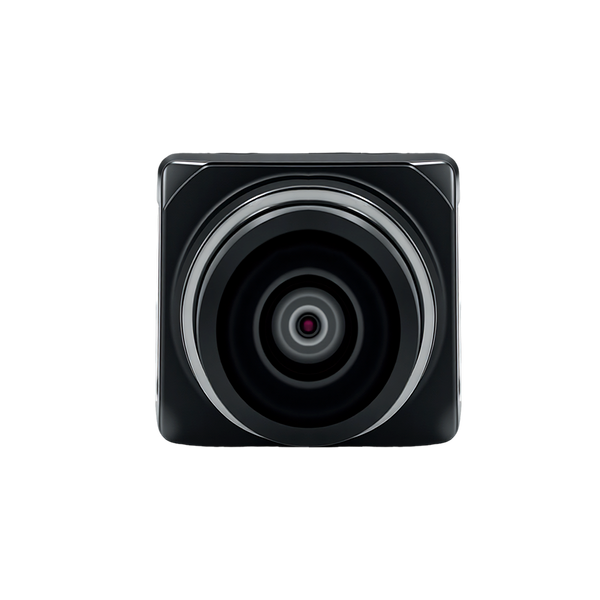

3MP ISX031 with ISP GMSL2 Camera

SG3S-ISX031C-GMSL2F-Hxxx is specially designed for automotive applications. It integrates the SONY ISX031 CMOS sensor with a Maxim GMSL2 interface, and features a well‑tuned ISP that delivers exceptional image quality. The module is IP67‑rated and comes with an AA lens that is precisely focused and factory‑glued, ensuring high reliability and consistent performance.

$459.00 $350.00

Shipping & duties calculated at checkout.

Model: SG3S-ISX031C-GMSL2F-H30X
