SG8-ISX028C-G2G-Hxxx camera module is equipped with the SONY ISX028 automotive-grade CMOS image sensor and Maxim GMSL2 serializer. It features a welltuned Image Signal Processor (ISP) that delivers exceptional image quality. Housed in an IP67-rated enclosure, the camera is supplied with an AA lens that is precisely focused and factory-glued to ensure stability and performance.

Feature

High Image Quality & Long‑Range Recognition: Featuring the SONY 8MP ISX028 automotive‑grade CMOS sensor, delivering 3840×2160 (8MP) resolution. Built‑in ISP captures clear details of distant targets, enhancing perception range and decision reliability for autonomous driving and robotics.
Superior HDR & LED Flicker Mitigation (LFM): Supports HDR and LFM to suppress flicker from LED signals and signage. Maintains accurate object recognition under extreme lighting changes, such as tunnel entrances/exits and backlit scenes.
High‑Speed GMSL2 Low‑Latency Transmission & Multi‑Camera Sync: MAX96717 GMSL2 serializer delivers up to 6 Gbps bandwidth for real‑time HD transmission. Supports external trigger and frame sync for precise multi‑camera synchronization, simplifying multi‑sensor fusion integration.
Automotive‑Grade Reliability & IP67 Protection: Automotive‑grade design with –40 °C to +85 °C operation and IP67‑rated housing. Suitable for harsh environments including autonomous vehicles, heavy machinery, and outdoor robotics.
Flexible Configuration & Multiple FOV Options: Offers a selection of field‑of‑view (FOV) lens options, flexibly adaptable to various scenarios such as forward perception, surround view, or wide‑angle monitoring.

Specification

Product	SG8-ISX028C-G2G-Hxxx
Sensor	SONY 8.39MP ISX028 RGGB
Output Pixels	3840H*2160V
Frame Rate	30fps
HDR Support	Yes
LEM	Yes
Output data	YUV
Serializer	MAXIM MAX96717
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<400mA@12VDC
Connector	Amphenol（Z Type Fakra）
Operating temp. range	-40~+85℃
Dimensions	W: 30mm, L:30mm, H:22.5mm
Weight	<100g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	DOF	Water- proof	Lens Mount
SG8-ISX028C-G2G-H30YA	30°	17°	1.6	15.34	17.2m-INF Focus at 36m	IP67	AA
SG8-ISX028C-G2G-H60SA	60°	33°	1.8	7.87	4.1m-INF Focus at 8.2m	IP67	AA
SG8-ISX028C-G2G-H120YA	180°	66°	1.6	4.01	1.3m-INF Focus at 3m	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

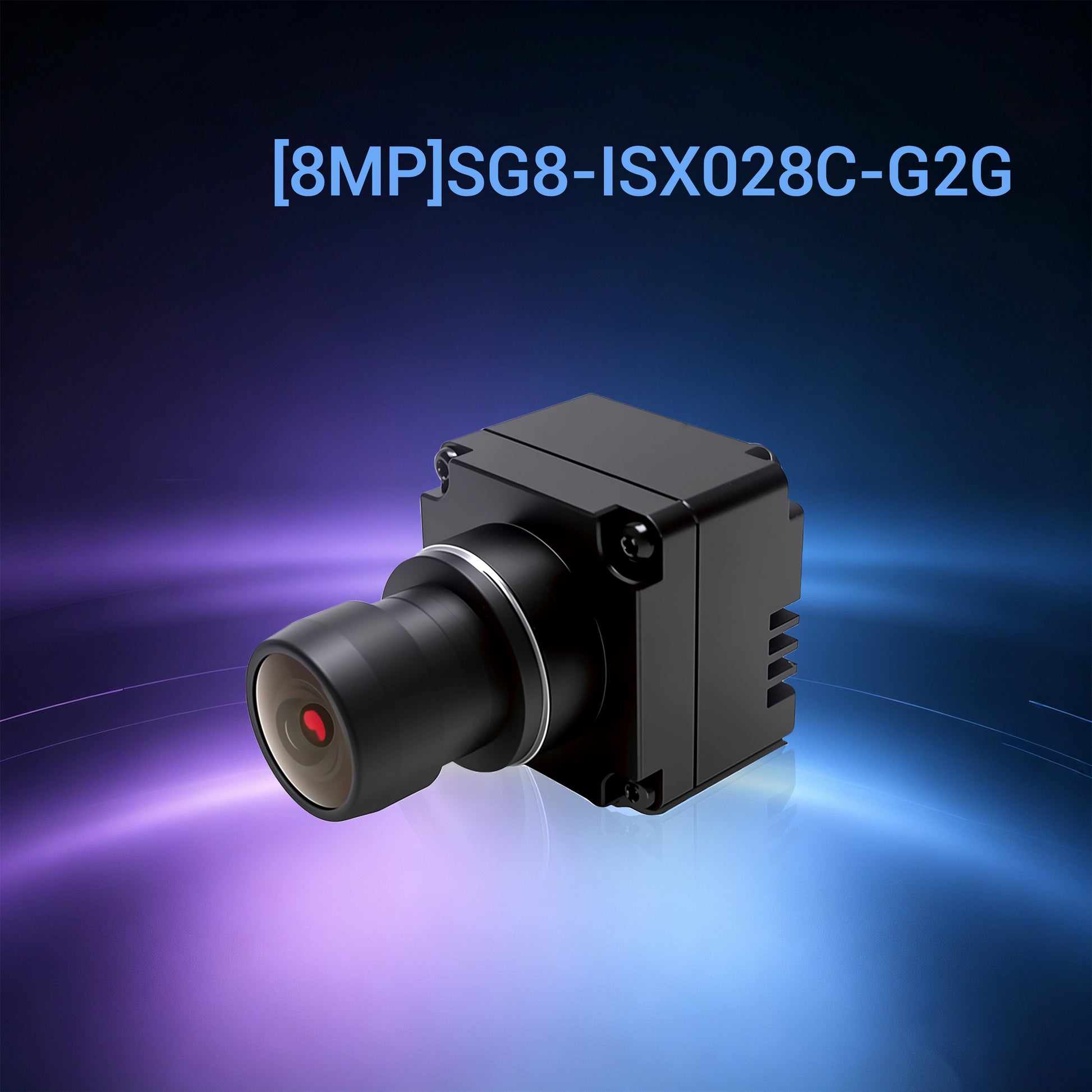

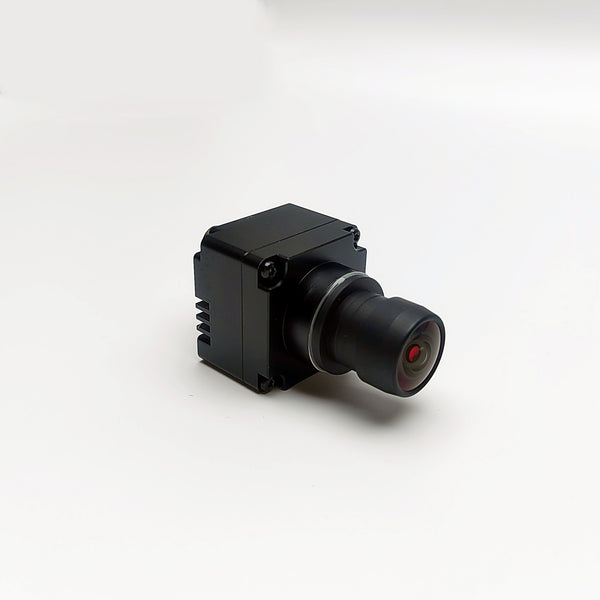

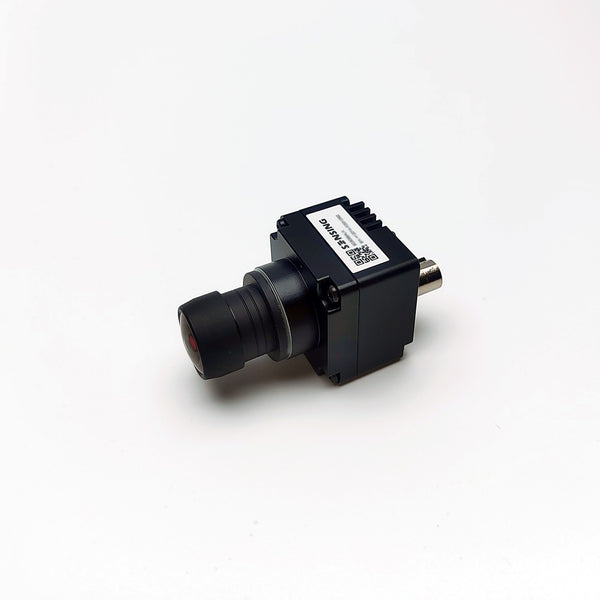

8MP ISX028 with ISP GMSL2 Camera

SG8-ISX028C-G2G is specially designed for automotive applications. It integrates the SONY ISX028 automotive‑grade CMOS sensor with a Maxim GMSL2 interface, and features a well‑tuned ISP that delivers exceptional image quality. The module is IP67‑rated and comes with an AA lens that is precisely focused and factory‑glued, ensuring high reliability and consistent performance.

$549.00

Shipping & duties calculated at checkout.

Model: SG8-ISX028C-G2G-H30YA

SG8-ISX028C-G2G-H30YA SG8-ISX028C-G2G-H60SA SG8-ISX028C-G2G-H120YA
