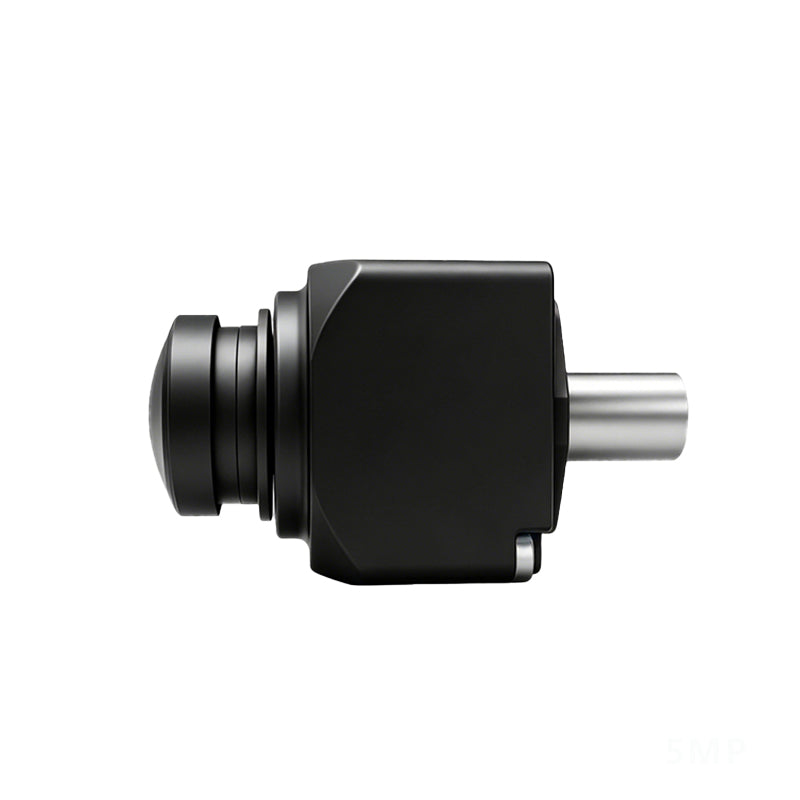

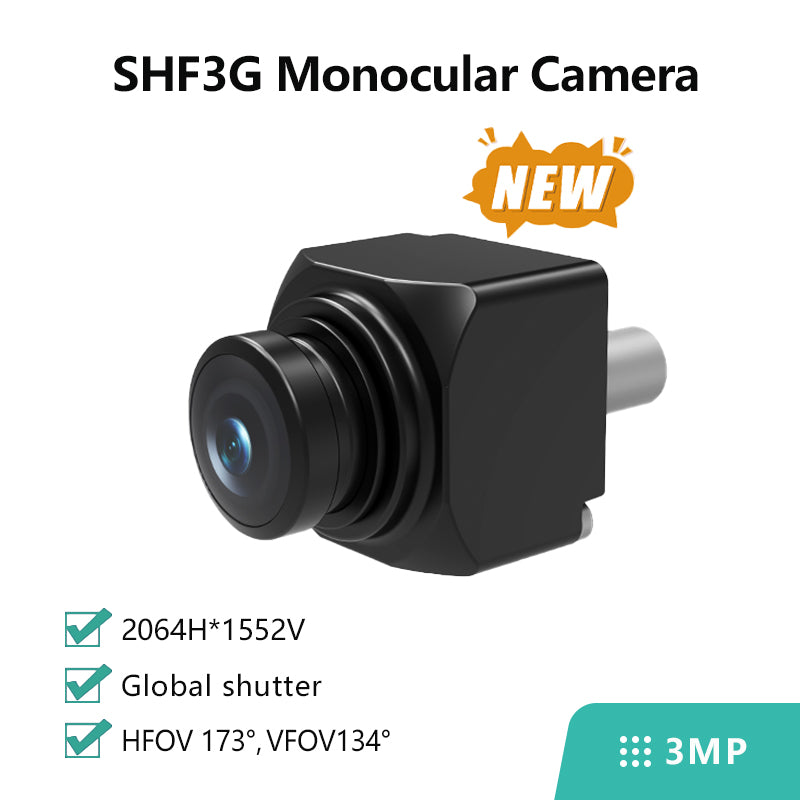

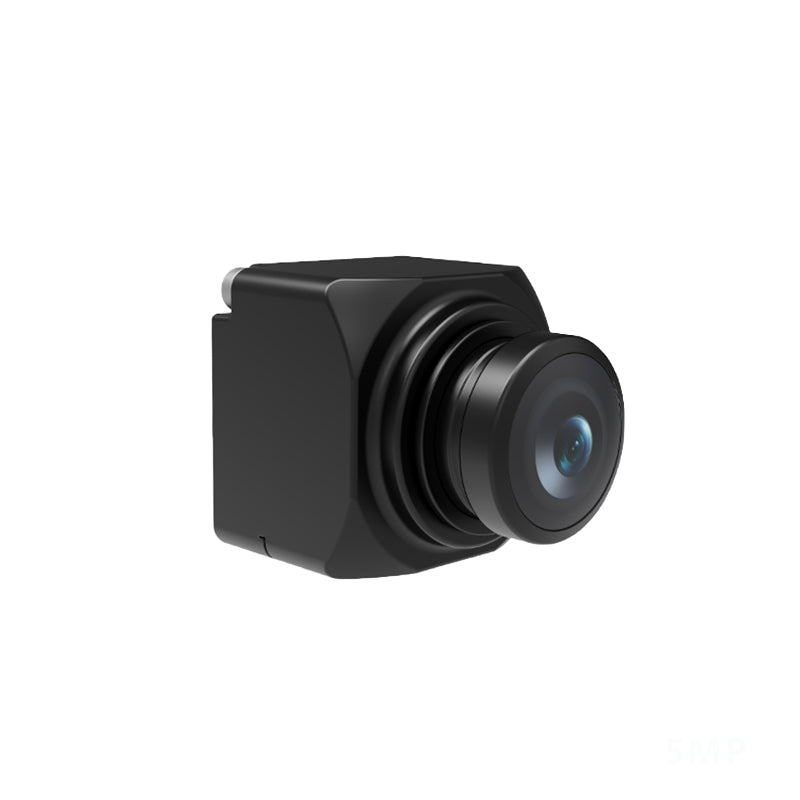

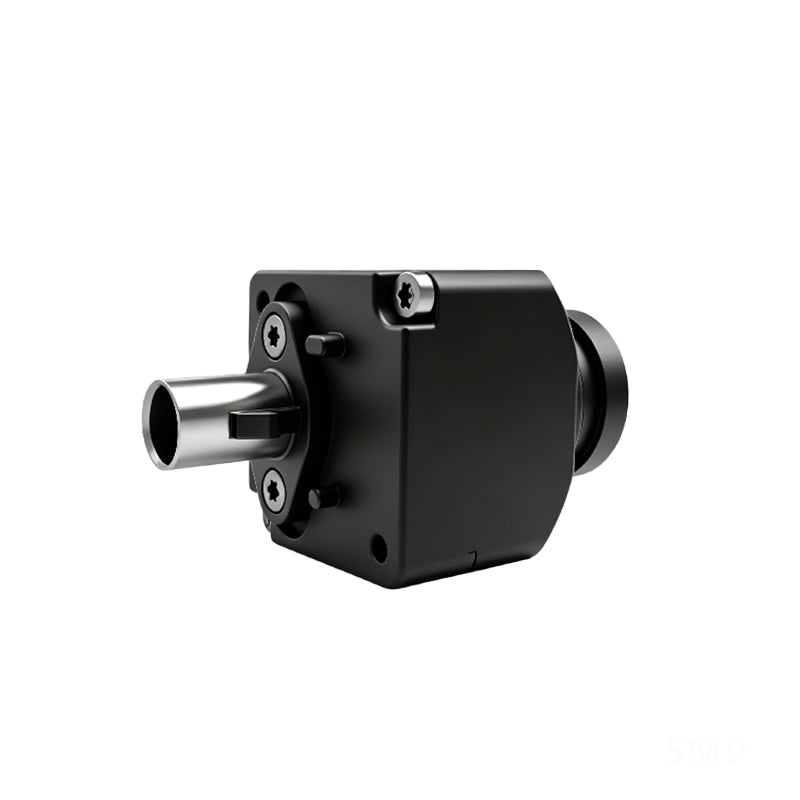

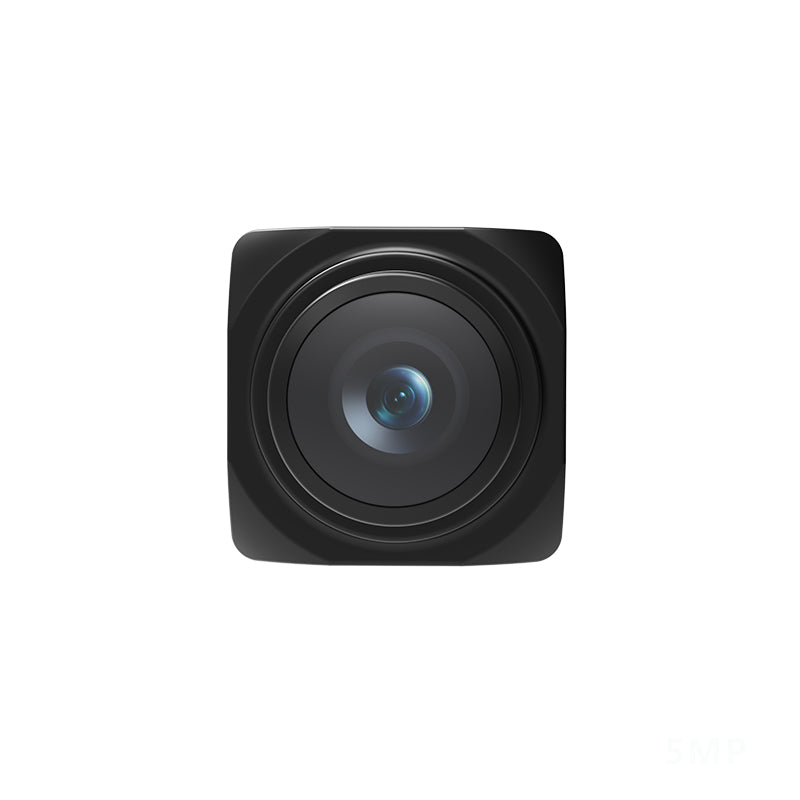

3MP Global Shutter Monocular Camera
$459.00 USD
In stock!
VOverview
SHF3G Monocular camera module, designed for embodied intelligence applications, uses a 3MP global shutter sensor and can be mounted on the head, torso, or other parts of humanoid robots for perception and recognition tasks, delivering professionally tuned high‑quality imaging with a compact 25×25 mm footprint and a wide‑angle lens.
Specifications
- Model : SHF3G
- Resolution : 2064H*1552V
- Frame Rate : 2064*1552@30fps MAX125fps
- Sensor : RGGB
- Shutter : Global Shutter
- Camera Interface : GMSL2
- Connector : Amphenol Fakra（Z Code ）
- Output data : RAW@12bit/10bit/8bit
- Serializer : MAXIM MAX96717F
- Operating temp.range : -20°C～+70°C
- Dimensions : 25mm*25mm*32.12mm
- Weight : <50g
- HFOV : 173°
Features
- Global Shutter
- Low battery
- External trigger support
- Multi−Camera synchronization Support
- High-reliability GMSL2 interface
Application
- Humanoid Robot
Dimensions
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
Thank you for choosing our product. We will provide you with 1 year of free after-sales service.
If you encounter any technical problems during installation or use, please feel free to consult our customer service, and we will provide you with comprehensive technical services.
For product quality defects caused by product design and manufacturing reasons, our company will replace similar products for you free of charge, and the resulting costs will be borne by our company.
