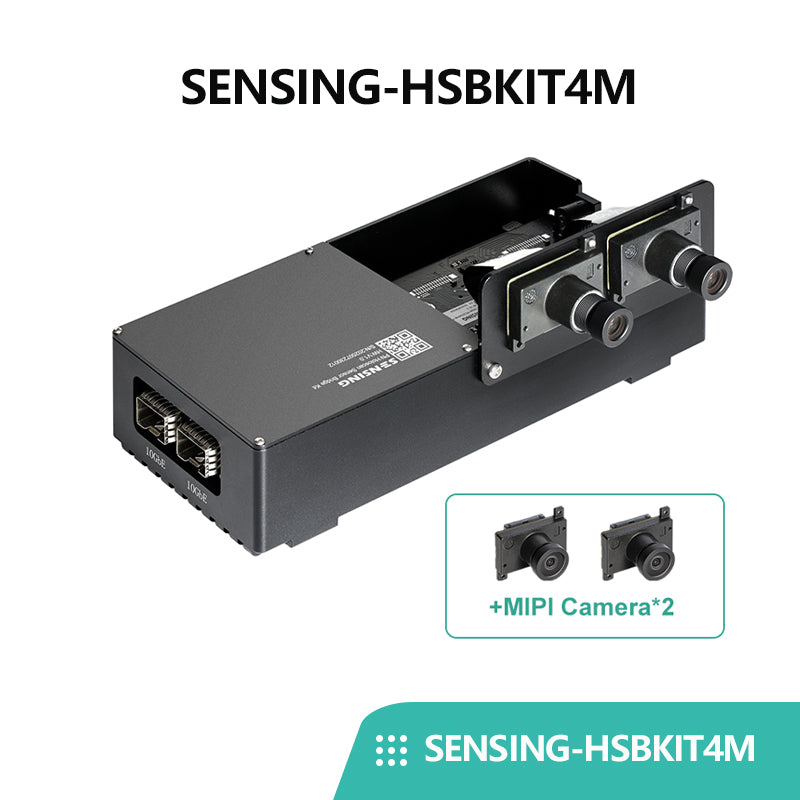

SENSING-HSBKIT4M

    $1,495.00 USD
    In stock!

    Product description

    Overview
    The SENSING-HSBKIT4M camera development kit is based on the SONY IMX678 8.29MP RGGB sensor and the ONSEMI AR0234 2.3MP RGGB, specifically optimized for the NVIDIA Holoscan platform. It features 1/1.8-inch CMOS sensor and supports RAW image output at a resolution of 3840×2160.The kit is compatible with M12 lens mounts, making it ideal for high-precision imaging in applications such as IoT, robotics, and Medical.

    Specifications
    • Model : SENSING-HSBKIT4M
    • Support Platorm : NVIDIA Jetson AGX Thor & Orin
    • Sensor :  SONY IMX678/ONSEMI AR0234 RGGB
    • Interface : Holoscan sensor bridge
    • Camera input : 4* MIPl CSl-2 Camera
    • Adapter plate : SG2A-HOLOSCAN-MIPI-A1
    • Resolution : 3840*2160/1920*1080
    • Output data : RAW/YUV422
    • Dimensions : 185mmx77mmx41mm
    Key Features
    • Support NVIDIA Holoscan Sensor Bridge（HSB） Platform
    • Output Pixel：Max 3840*2160
    • Output format: RAW/YUV422
    • Allow customization
    • Compatible with AGX Thor and AGX Orin
    Application
    • Industrial
    • Robotics
    • Medical
    • Inspection
    Recommended Package

    SENSING-HSBKIT4M

    SG8-IMX678C-MIPI-H80K



    SG2-AR0234C-MIPI-H60F

    Platform Support

    The camera can be connected to AGX Thor via NVIDIA Holoscan sensor bridge.

    through the Github link

    AGX Thor+Holoscan Sensor Bridge

    The camera can be connected to AGX Orin via NVIDIA Holoscan sensor bridge. Please obtain the SDK driver through the Github link

    AGX Orin+Holoscan Sensor Bridge

    Accessories

    IF you need to use Holoscan Sensor Bridge to connect to AGX ORIN, you will need to purchase the following additional.

    Technical documents

    Product specifications and instructions
    Camera Module Installation Guidance
    Camera Triggering and Synchronization Instructions
    SerDes configuration file

    Aftercare

    Thank you for choosing our product. We will provide you with 1 year of free after-sales service.

    If you encounter any technical problems during installation or use, please feel free to consult our customer service, and we will provide you with comprehensive technical services.

    For product quality defects caused by product design and manufacturing reasons, our company will replace similar products for you free of charge, and the resulting costs will be borne by our company.
