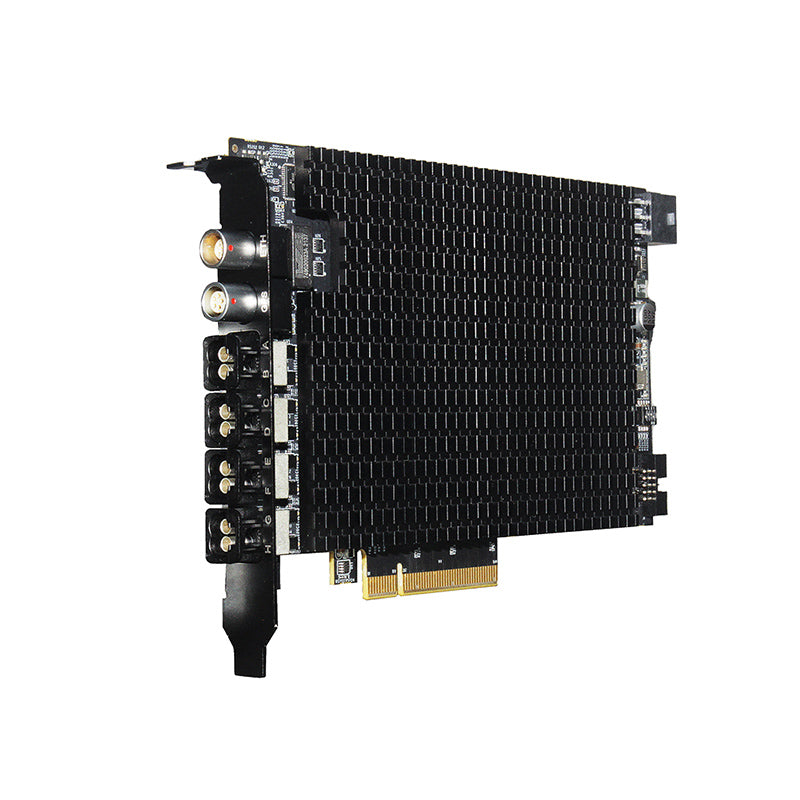

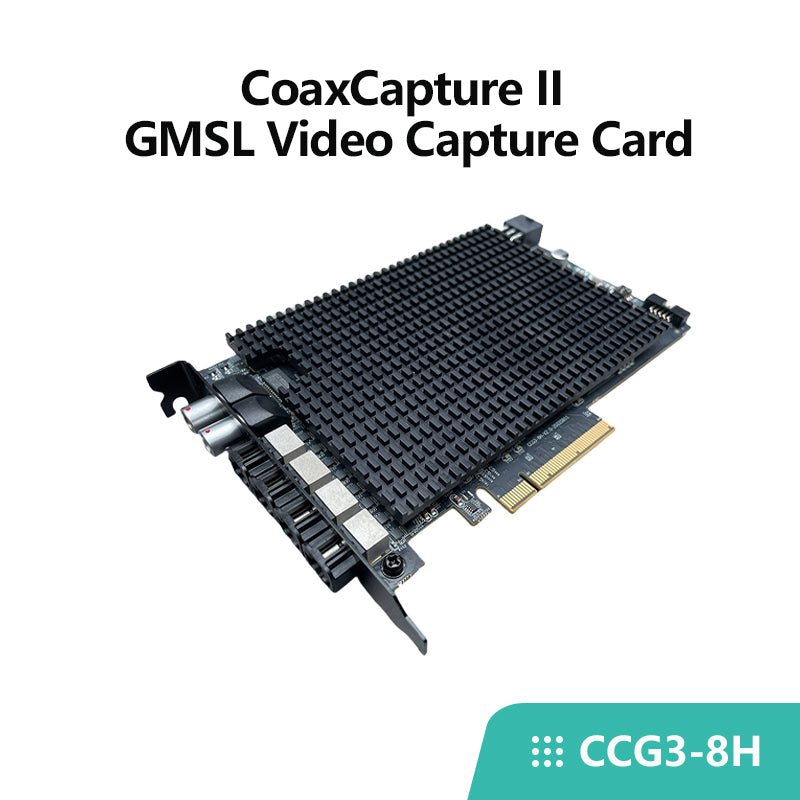

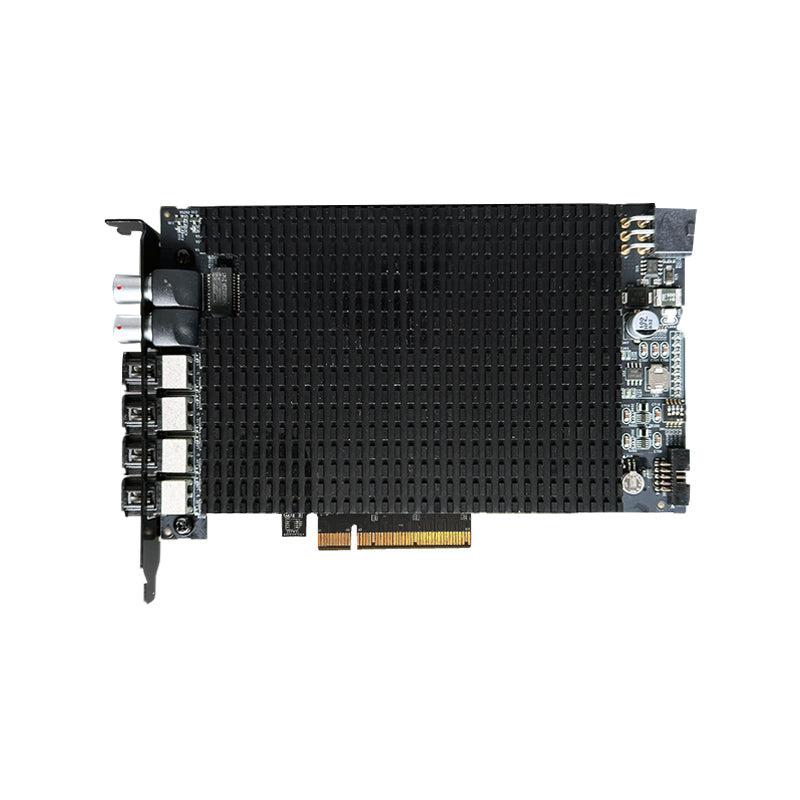

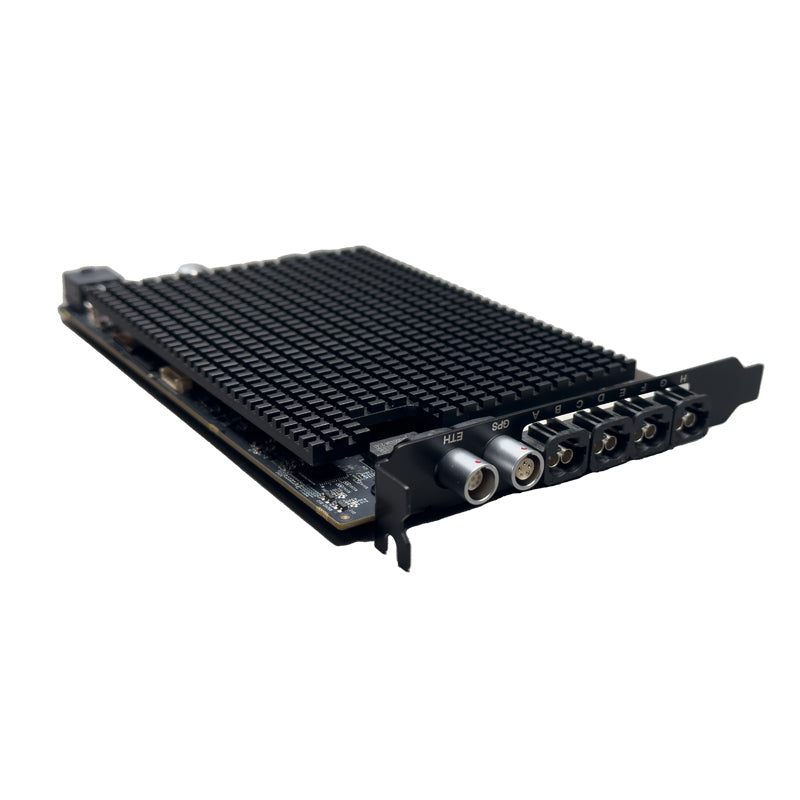

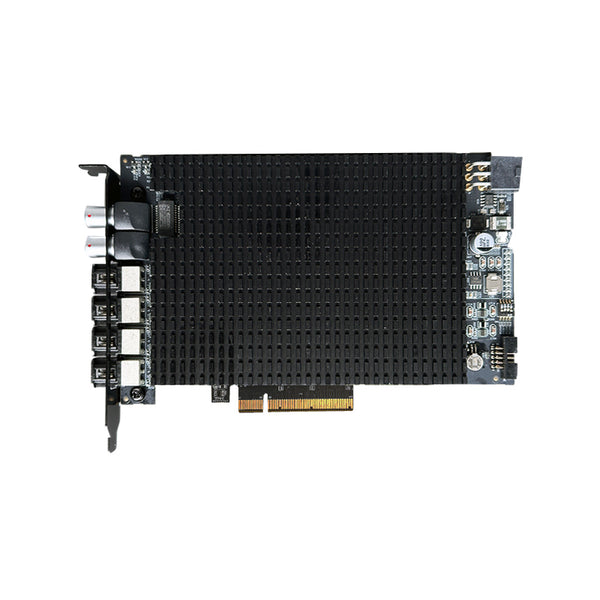

• Model : CCG3-8H
• Processor : Xilinx ZU+ system processor
• PC Bus Interface :  PCI Express x8 (Gen 3)

• Standard : GMSL
• Serializer Supported : MAX96705/MAX9295A/MAX96717F...
• Power Output : Power Over Cable 4W/9V per cable
• Camera Support : 8 cameras input
• Camera Resolution : 1-8Mega pixel
• Bit Depth :  8 bit (YUV422), 8/12/16-bit (RAW)
• Software Drivers : Linux 64-bit,Ubuntu18.04/20.04
• Operating Temperature : -20°C to 70°C
• Storage Temperature :  -40°C up to 80°C
• Dimensions : 167.64mm * 111.15 mm
• Weight :  300g

Features

• 8 GMSL cameras input, support up to 8 Mega Pixels@ 30 fps;
• PCI-e Gen3*8lane;
• Support external trigger synchronization;
• Support GPS Timing synchronization;
• Support network PTP timing synchronization;

Application

Hardware solution of autonomous driving/machine

• 2 PCI-e slots support up to connect 16 GMSL cameras;
• Max support 4K@30fps pixel input ;
• PCI Express 3.0;
• Support synchronous alignment of multiple cameras and lidars;
• Support the function of timestamp in the capture card;
• Ultra low latency;
• Support fetching camera exposure parameter;

Automatic driving vehicle data capture

• 2 PCI-e slots support up to connect 16 GMSL cameras;
• Max support 4K@30fps pixel input ;
• Support ACU work of the original vehicle and data captureproceed synchronously;
• Support synchronous alignment of multiple cameras and lidars;
• Support the function of timestamp in the capture card;
• Use GMSL Bypass module realize GMSL camera input to ACUand video capture card synchronously lossless;
• Support RAW and YUV data camera;
