SN2M4EFGD camera module is equipped with a 2MP dim light dedicated image sensor, a 2MP high-performance lSP image processing chip, and a Maxim GMSL2 serializer. lt is designed and positioned as a dim light camera. After professional image debugging, it has high-quality image effects both in day and night, which comes with an IP67-rated enclosure – is supplied with an M16 lens that is focused and glued in our factory.

Feature

Dedicated Low‑Light Imaging: 2MP sensor + high‑performance ISP, professionally tuned for clear YUV422 output in both day and night.
HDR & LED Flicker Mitigation: Supports HDR and LFM, ensuring reliable performance under wide dynamic range and flickering LED lighting (ADAS, robotics, outdoor/indoor).
GMSL2 High‑Speed Link: Maxim MAX96717F serializer (3 Gbps) with PoC over coax; hardware‑based multi‑camera synchronization for multi‑camera systems.
Rugged & Compact: –40°C to +85°C operating range, IP67‑rated housing (lens IP5X), factory‑focused M16 lens, 30×30×22.5mm, <50g.

Specification

Product	SN2M4EFGD
Output Pixels	1920H*1080V
Frame Rate	1920*1080@30fps
Sensor	2MP RGGB
ISP	Yes
Output data	YUV422@8bit
Serializer	MAXIM MAX96717F
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<200mA@12VDC
Connector	Amphenol Fakra（Z Code ）
Operating temp. range	-40~+85℃
Dimensions	W: 30mm, L:30mm, H:22.5mm
Weight	<50g

Lens Spec & Dimensions

HFOV	VFOV	FNO	EFL	Max Optical Distortion	Water- proof	Lens Mount
70°	40°	1.6	6.35mm	-21.8%	IP69K	M16

Note: This icon indicates the imaging direction is positive.

Application

Automotive
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robots

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

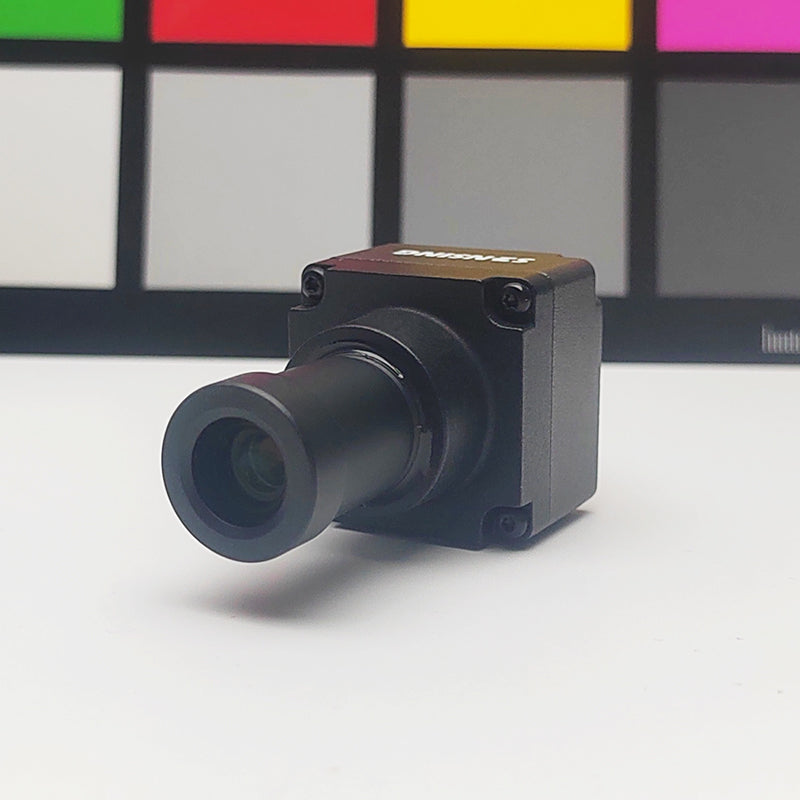

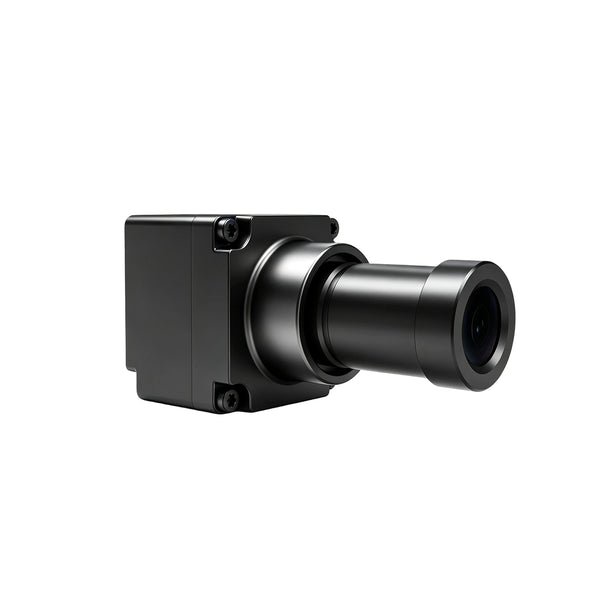

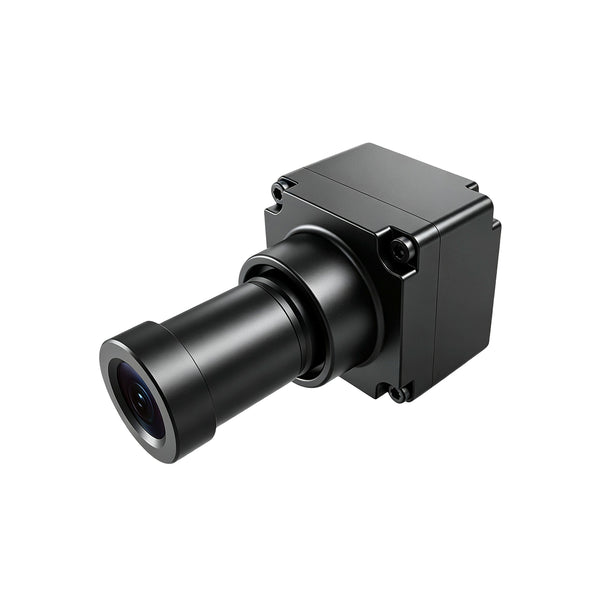

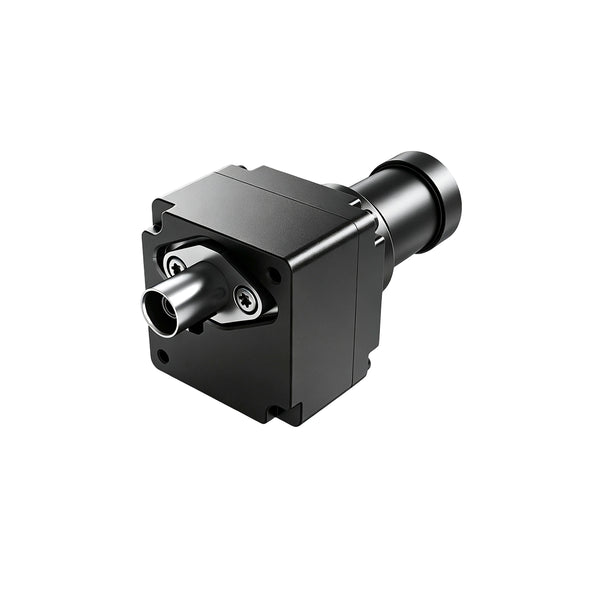

2MP GMSL2 Starlight Camera

SN2M4EFGD is specially designed for low‑light imaging applications. It integrates a 2MP dim‑light dedicated sensor with a high‑performance ISP and a Maxim GMSL2 interface, delivering high‑quality images both day and night through professional tuning. The module is IP67‑rated and comes with an M16 lens that is precisely focused and factory‑glued, ensuring reliable performance.

$419.00
