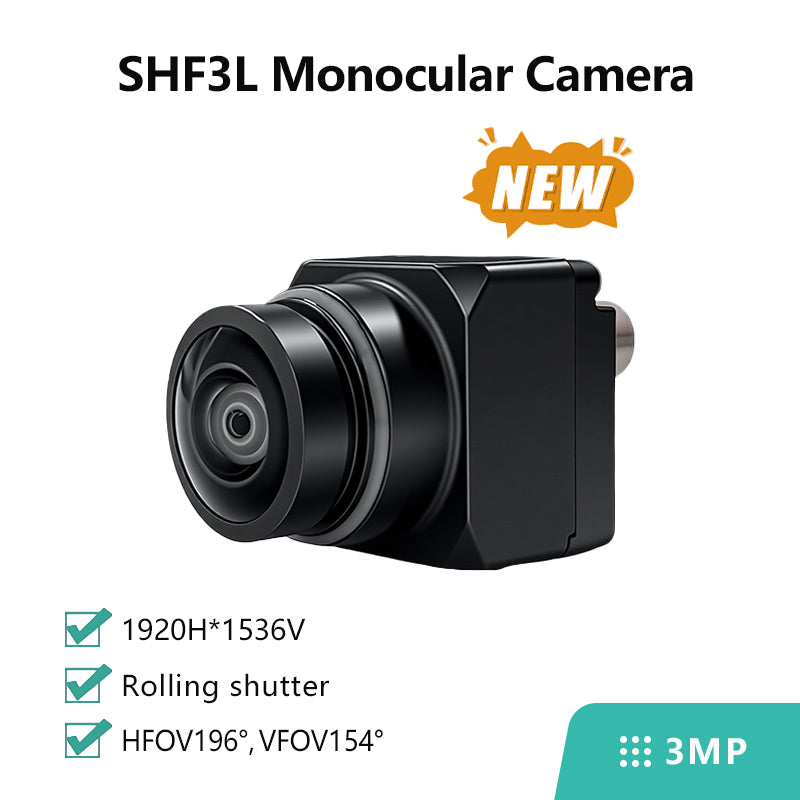

SHF3L is specially designed for embodied intelligent applications. It uses a 3MP high dynamic and high frame rate sensor, featuring high-quality image effects that have been professionally imagetuned. It is equipped with a full fisheye lens and is guaranteed for product consistency through high-precision AA technology. It is suitable for applications such as robot perception and recognition.

Feature

• Image Tuning for Embodied Intelligence Applications: The module has undergone image tuning specifically for robotic perception and recognition scenarios, making it suitable for deployment on humanoid robot heads, torsos, and other locations.
• Ultra-Wide-Angle Fisheye Lens: Equipped with an AA-grade fisheye lens, the module offers a horizontal field of view of 196° and a vertical field of view of 154°.
• High Dynamic Range: Equipped with a 3MP highdynamicrange sensor, the module supports HDR up to ≥140 dB, meeting the perception requirements of both outdoor and indoor robotic scenarios.
• Low Latency and External Trigger Synchronization: Trigger latency is < 66 ms, with support for external triggering and multicamera synchronization.
• Wide Temperature Range and High Ingress Protection: Operating temperature range: –40°C to +85°C. The module has an IP69K protection rating, while the lens is rated IP69K.

Specification

Lens Spec & Dimensions

Application
