Product Details
Support WiKi
Resources
Overview

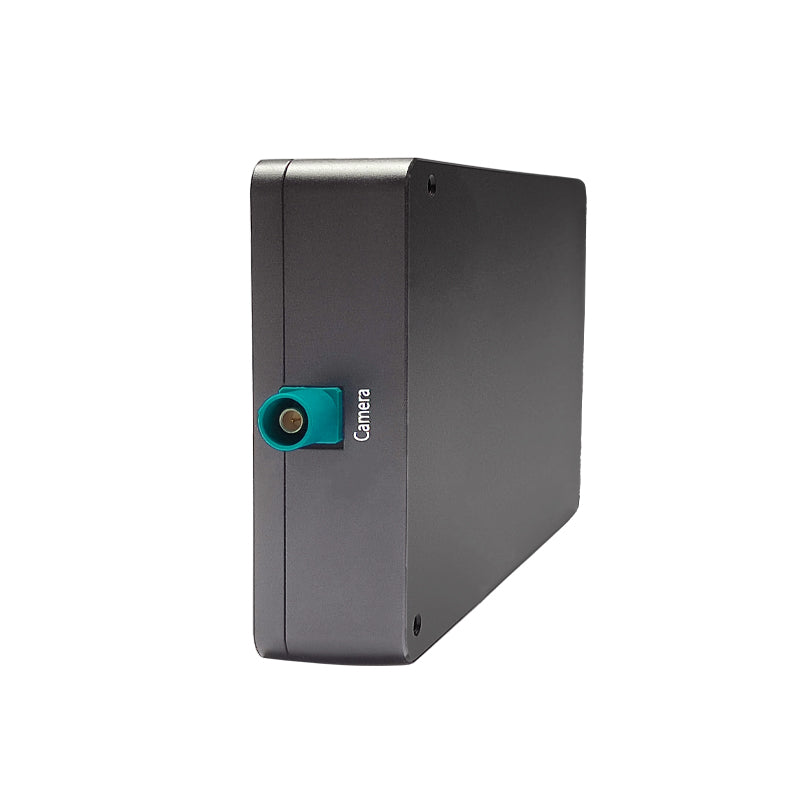

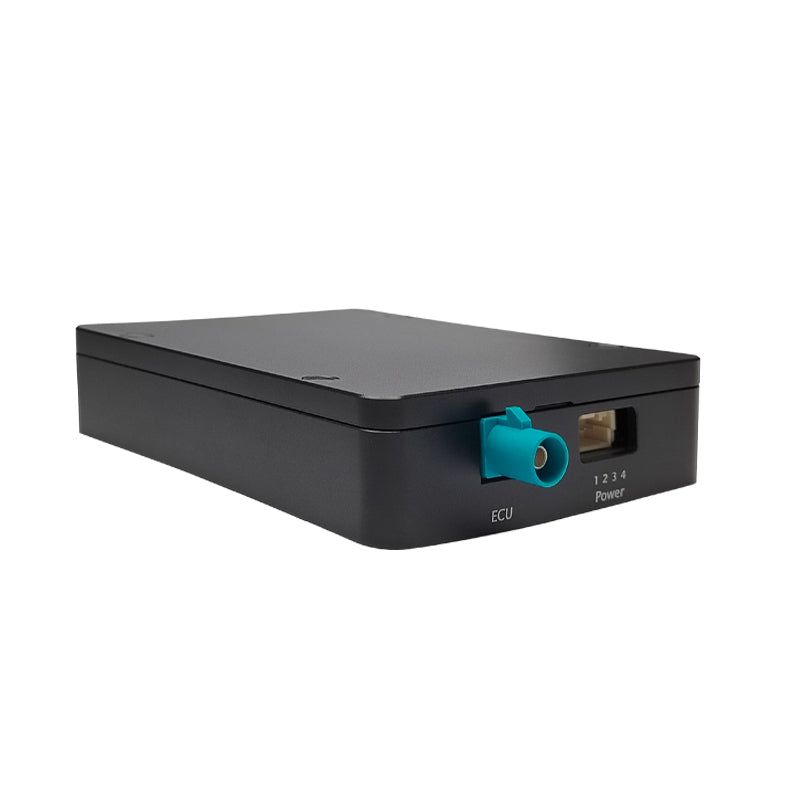

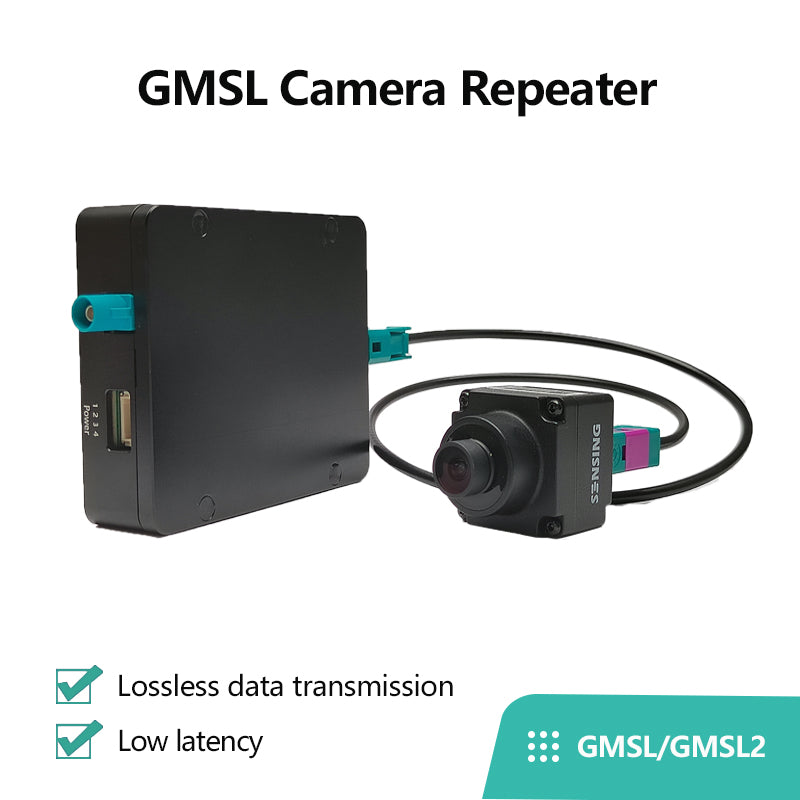

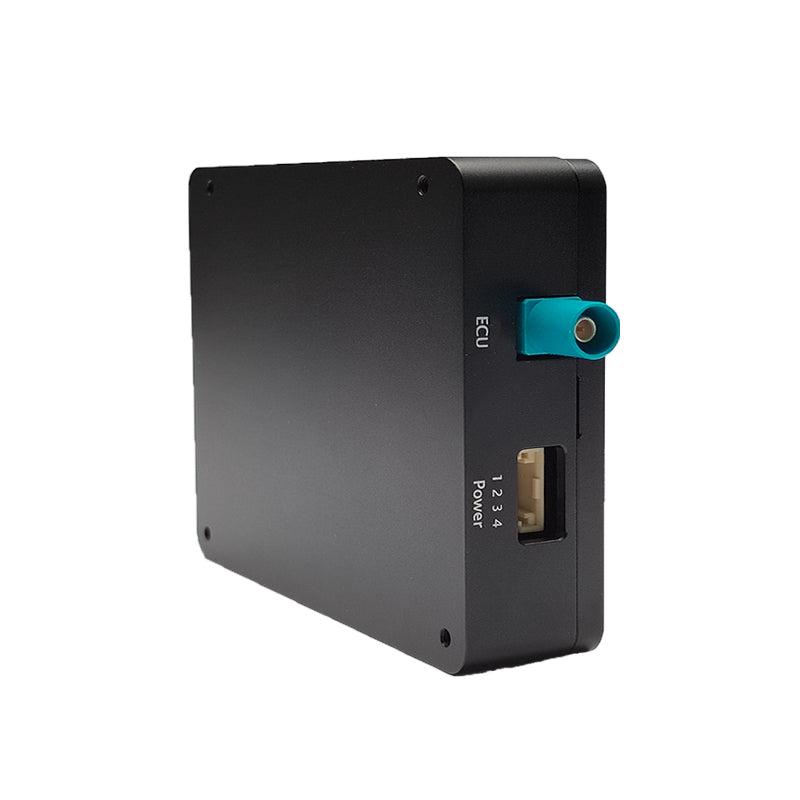

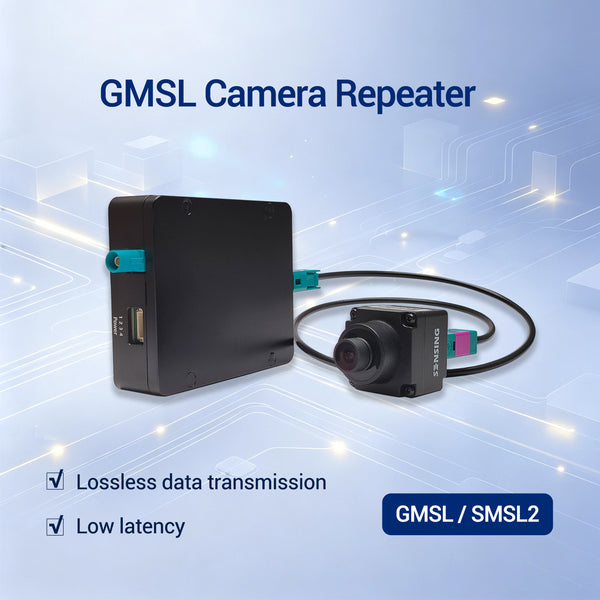

GMSL2 Repeater can realize one GMSL input and one GMSL output，so as to extend the transmission distance. Or which can realize one GMSL2 input and one GMSL2 output， so as to extend the transmission distance.

Specifications
  • Model : SG8-BP0101-GMSL2
  • Resolution : Up to 1920*1080@30fps/3840*2160@30fps
  • Input Port : 1*GMSL/GMSL2
  • Output Port : 1*GMSL/GMSL2
  • Power Supply : Yes
  • Connector : Fakra Z type
  • Data Rate Support : 3Gbps/ 6Gbps
  • Operating temp. range : -40~+85℃
  • Dimensions : L:87.5mm, W: 70.6mm, H:20mm
  • Weight : <150g
Features
  • Lossless data transmission
  • Low latency/ Microsecond level
  •  Low insert loss
  • Suitable for various cameras
Application
  • Autonomous Driving
  • Video Data acquisition vehicle
  • Laboratory

More Detailed User Guide

Welcome to the Wiki Service Platform, where you can access related product and technical documentation.
Please obtain the SDK driver through the Github link.

GMSL2 Camera Repeater

SKU 0

GMSL2 Repeater can realize one GMSL2 input and one GMSL2 output, so as to extend the transmission distance.

$399.00
