SG3S11AFxK is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.

Feature

3MP Resolution & Image Quality: SONY 2.95MP ISX031 sensor with built-in ISP outputs 1920×1536 at 30fps,and 3.0μm pixel size, providing clear imagery for ADAS and autonomous driving.
HDR & LFM Support: Native HDR and LED flicker mitigation (LFM) ensure consistent image quality under strong backlight and rapidly changing lighting conditions.
GMSL2 High-Speed Transmission & Sync: Integrated MAX96717F serializer supports GMSL2 at 3Gbps, outputs YUV422 data, and enables external trigger and multi-camera frame synchronization for surround-view systems.
Wide Temperature & Protection: Rated for –40°C to +85°C operation with IP67 waterproof and dustproof housing, suitable for outdoor and in-vehicle installations.
Compact Dimensions & Flexible Lens Options: 25×25mm footprint, weight under 50g, and available with multiple factory-focused AA lenses covering HFOV from 30° to 196°, available with multiple lens options covering HFOV from 30° to 196°.

Specification

Product	SG3S11AFxK
Sensor	SONY 2.95MP ISX031 RGGB
Output Pixels	1920H*1536V
Frame Rate	1920*1536@30fps
HDR Support	Yes
LEM	Yes
ISP	Built-in
Output data	YUV422@8bit
Serializer	MAXIM MAX96717F
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<200mA@12VDC
Connector	Amphenol Fakra Z Code (Camera)
Operating temp. range	-40~+85℃
Dimensions	W: 25mm, L:25mm
Weight	<50g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	Max Optical Distortion	Water- proof	Lens Mount
SG3S11AFCK	30°	24°	1.6	10.96	-2.5%	IP67	M12
SG3S11AFFK	60°	47°	1.5	5.83	-25.6%	IP67	AA
SG3S11AFJK	100°	78°	1.9	3.45	-50%	IP67	AA
SG3S11AFLK	118°	92°	2.0	3	-92%	IP67	AA
SG3S11AFSK	196°	154°	2.0	1.51	-155%	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

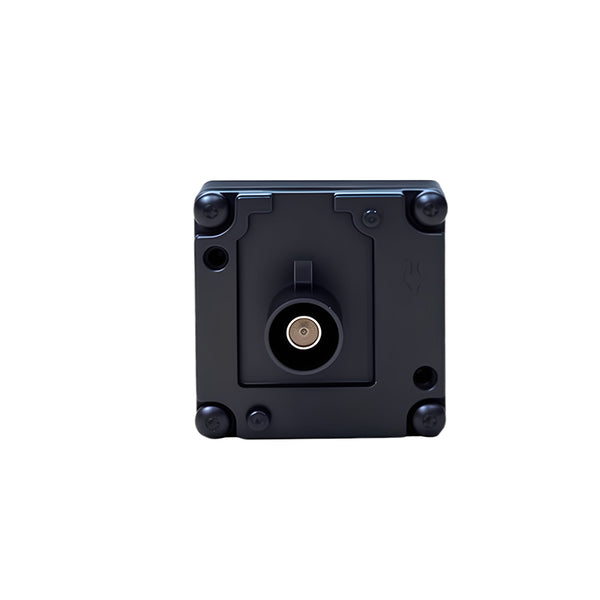

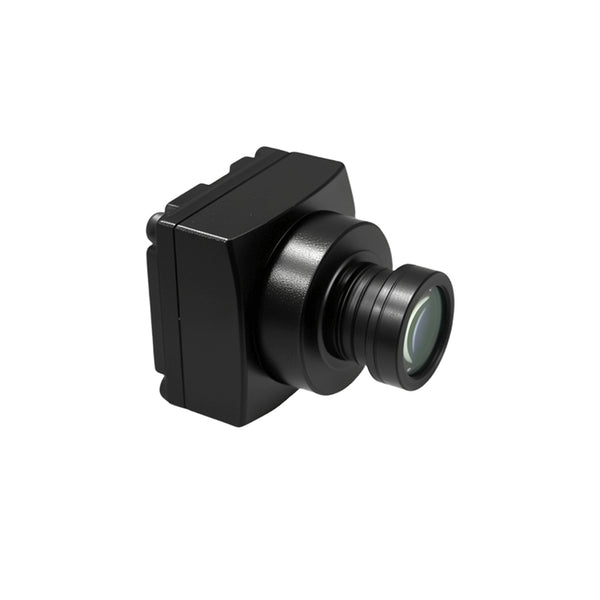

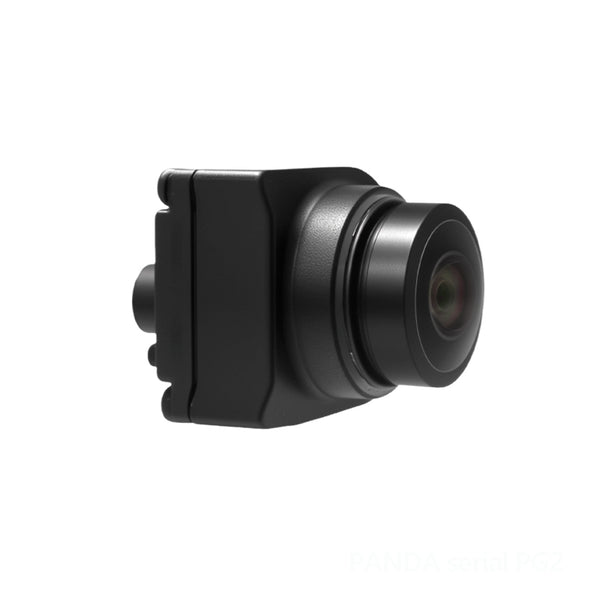

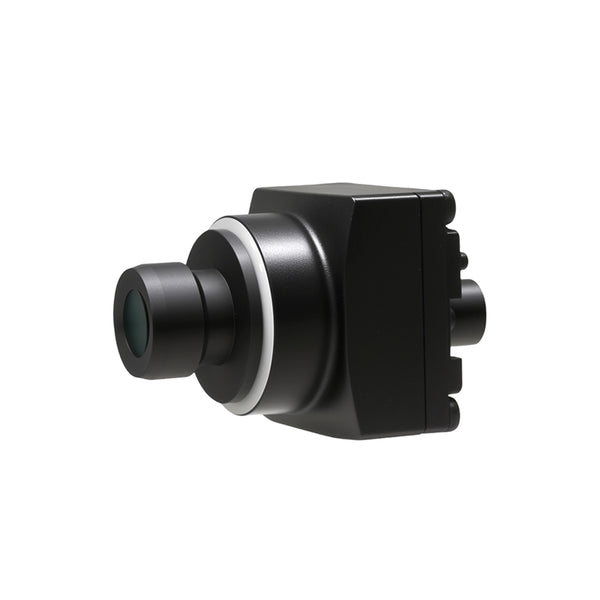

3MP ISX031 with ISP GMSL2 Camera
