SG3-ISX031C-MIPI-Hxxx camera module is equipped with SONY CMOS image sensor ISX031. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, can be adapted to different SOC platforms .

Feature

3MP Resolution & Exceptional Image Quality: Equipped with the SONY 2.95MP ISX031 CMOS sensor with built-in ISP, it outputs 1920×1536 at up to 60 fps with 3μm pixels, delivering clear, high-quality imagery for machine vision, intelligent transportation, and industrial inspection.
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under challenging lighting conditions, effectively enhancing environmental adaptability for perception systems.
MIPI Interface & Flexible Connectivity: Adopting a standard MIPI interface with YUV422 output, it supports both 15‑pin and 22‑pin FPC cables for 2‑lane or 4‑lane MIPI configurations, enabling easy integration with various SOC platforms including NVIDIA Jetson.
Automotive‑Grade Reliability: Built to automotive-grade standards, it operates from –20 °C to +75 °C with 3.3V power supply, ensuring stable performance in industrial, aerospace, and outdoor intelligent systems.
Flexible Lens Options: Available with 30°, 60°, 100°, and 190° FOV lens options to suit diverse distance and field‑of‑view coverage requirements.

Specification

Product	SG3-ISX031C-MIPI-Hxxx
Sensor	SONY 2.95MP ISX031 RGGB
ISP	Built-in
Output Pixels	1920H*1536V
Frame Rate	Max 60fps
HDR Support	Yes
Output data	MIPI/YUV422-8bit
Camera Interface	FPC
Power Supply	9~16V POC
Current	<500mA@12VDC
Connector	FH67-30S-0.5SV
Operating temp. range	-30~+75℃
Dimensions	W: 20mm, L:35mm, H:16.2mm
Weight	<50g

Lens Spec & Dimensions

Model	HFOV	VFOV	F.NO	EFL (mm)	Max Optical Distortion	Lens Mount
SG3-ISX031C-MIPI-H30X	30°	24°	F1.6	10.96	-2.5%	M12
SG3-ISX031C-MIPI-H60F	60.35°	47°	F1.6	5.8	-11.5%	M12
SG3-ISX031C-MIPI-H100F1	100.4°	78°	F1.6	3.55	-49%	M12
SG3-ISX031C-MIPI-H190X	196°	154.5°	F1.6	1.51	-154.2%	M12

FPC Cable Accessories

Through 2 types of FPC cables, 15pin and 22pin signals can be output. Different specifications can be selected according to the needs.

Application

Machine-vision
Intelligent transportation
Aeronautics and Astronautics
Industrial inspection

▪ Product Resources

Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Camera Installation Guide

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

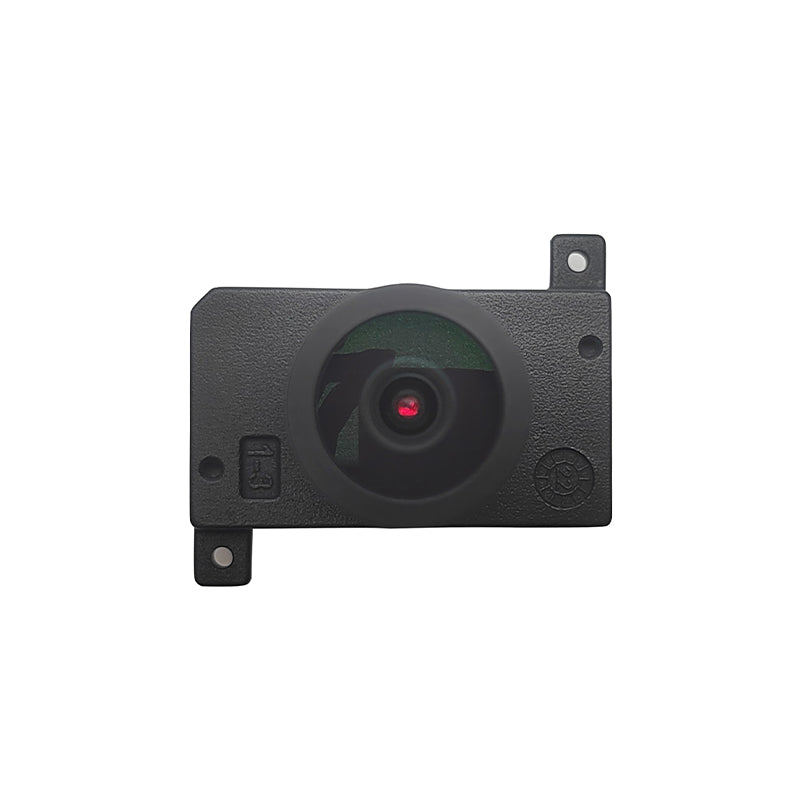

3MP ISX031 MIPI CSI-2 Camera

SG3-ISX031C-MIPI is equipped with SONY CMOS image sensor ISX031. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, can be adapted to different SOC platforms .

$249.00 $249.00

Shipping & duties calculated at checkout.

Model: SG3-ISX031C-MIPI-H30X
