8MP OX08D10 with ISP GMSL2 Camera
$549.00 USD
In stock!
Overview

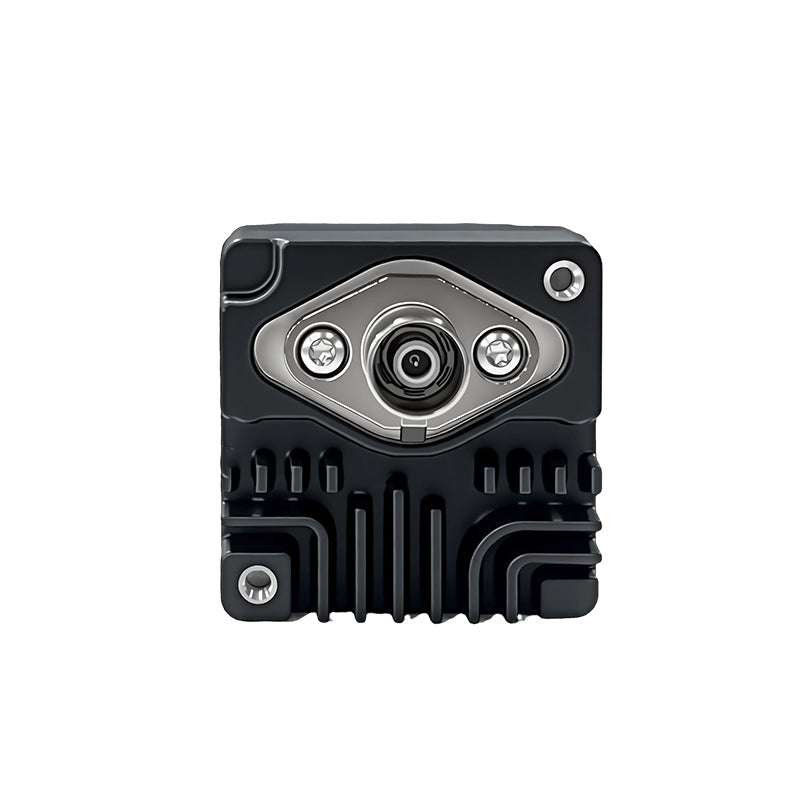

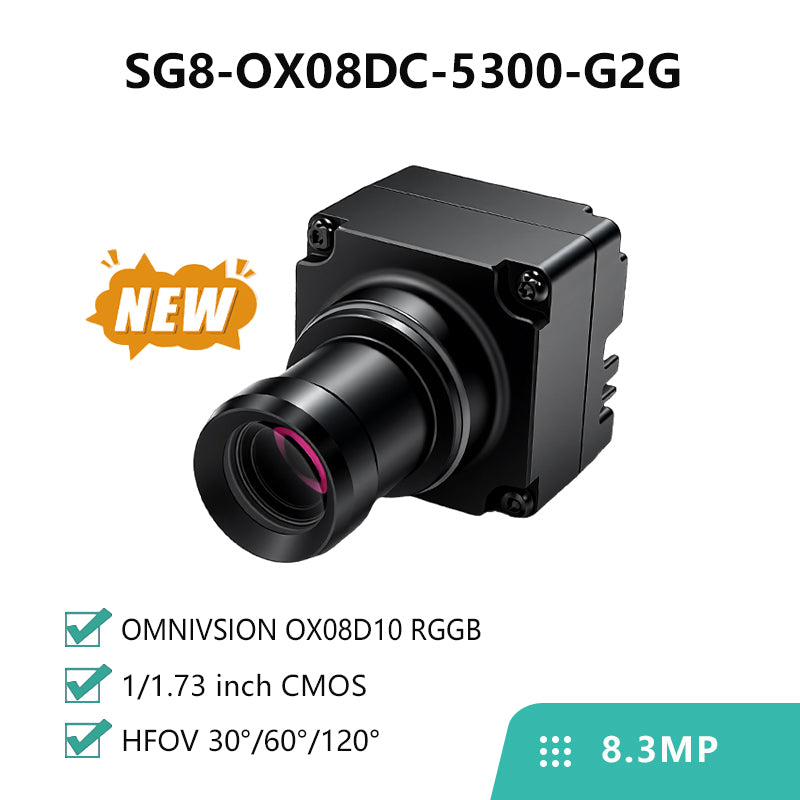

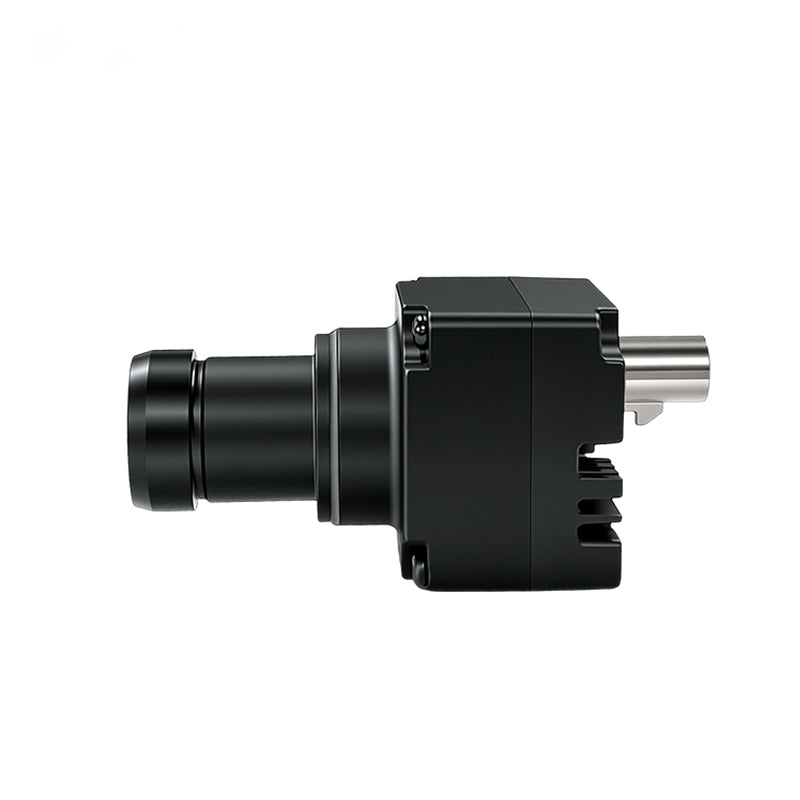

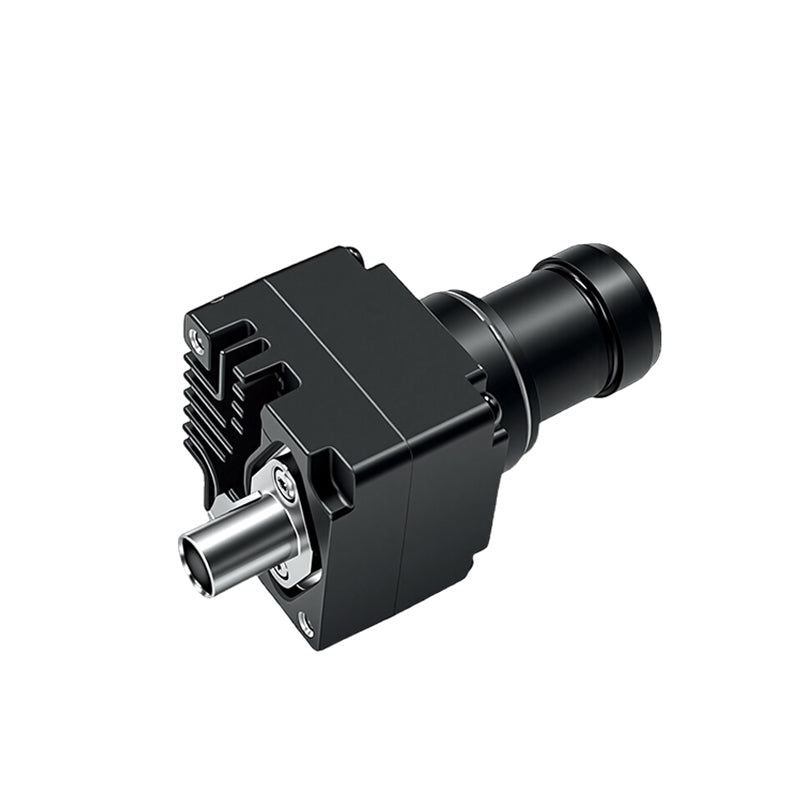

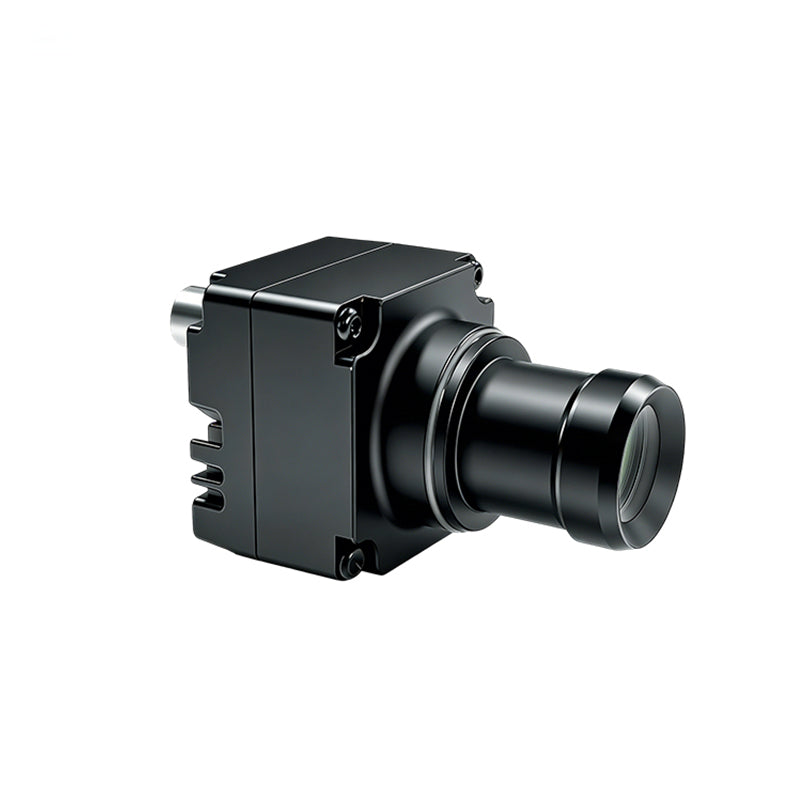

SG8-OX08DC-5300-G2G camera module is is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.
Specifications
- Model : SG8-OX08DC-5300-G2G-Hxxx
- Sensor : OMNIVSION 8.3MP OX08D10 RGGB
- ISP : GW5300
- Image Size : 1/1.73 inch CMOS
- Resolution : 3840H*2160V
- Pixel Size : 2.1um*2.1um
- Frame Rate : Max 45fps
- Connector : Amphenol Fakra（Z Code ）
- Output data : YUV422@8bit
- Serializer : MAXIM MAX96717
- Operating temp.range : -40°C～+85°C
- Dimensions : 30mm*30mm*22.57mm
- Weight : <80g
- HFOV : 30°/60°/120°
Features
- Output format: Uncompressed YUV422 format
- S-mount IP67 compliant lens focused and glued at our factory
- Multi−Camera synchronization Support
- Support different focal length lens
Application
- Automotive
- Adas Multi-sensor fusion
- High Dynamic Range Imaging
- Autonomous Driving
- Robotics
Model and Lens
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
