Product Details

Support WiKi

Resources

DMSBBFAN camera module is equipped with OmniVision CMOS image sensor OV02311 and Maxim GMSL serializer MAX96717F.It has an automotive-grade sensor without ISP, and it is equipped with an infrared automotive grade lens that supports 940nm infrared light recognition.

Feature

Global shutter & 940nm IR pass‑band: Captures clear images in low light and fast‑moving scenes, with effective ambient light rejection.
Built‑in ISP & YUV422 output: Delivers uncompressed YUV422 data; no external sensor configuration needed, simplifying system integration.
Multi‑camera sync & external trigger: Supports frame synchronization and external trigger signals for precise timing in multi‑camera setups.
Automotive‑grade, compact & lightweight: Wide operating temperature (–40°C to +85°C), dimensions 35.3×43.6×24.8 mm, and weight <50 g.
Low power & PoC: Camera <250 mA, IR LED <400 mA (both at 12V); Power over Coax reduces wiring complexity.
Flexible lens & standard interfaces: Interchangeable lenses available, with Fakra (Z‑code) and Molex connectors for easy integration.

Specification

Product	DMSBBFAN
Sensor	OV 2.08MP OV02311 Monochrome
ISP	GW5200
Image Size	1/2.9 inch CMOS
Output Pixels	1600H*1300V
Pixel Size	3um*3um
Frame Rate	1600H*1300V@30fps
Output data	YUV422@8bit
Serializer	MAXIM MAX96717F
IR Filter	940nm band pass
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	Camera<250mA@12VDC,LED＜400mA@12VDC
Connector	Amphenol Fakra (Z Code) +Molex
Operating temp. range	-40~+85℃
Dimensions	W: 35.3mm, L:43.6mm, H:24.8mm
Weight	<50g

Lens Spec & Dimensions

HFOV	VFOV	FNO	EFL	Max Optical Distortion	Water- proof	Lens Mount
55°	44.4°	2.2	5.1mm	-0.09%@HFOV	IP69K	M9

Note: This icon indicates the imaging direction is positive.

Application

Automotive
ADAS + Viewing Fusion
Driver Monitoring System

▪ Product Resources

Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation. Go to Product Resources>

▪ Employing Camera

Instructions for camera adaptation to NVIDIA and other platforms. Employing Camera>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices. Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

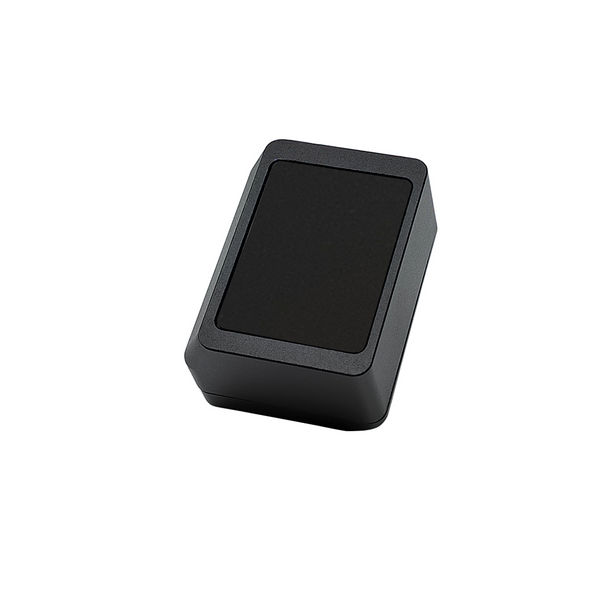

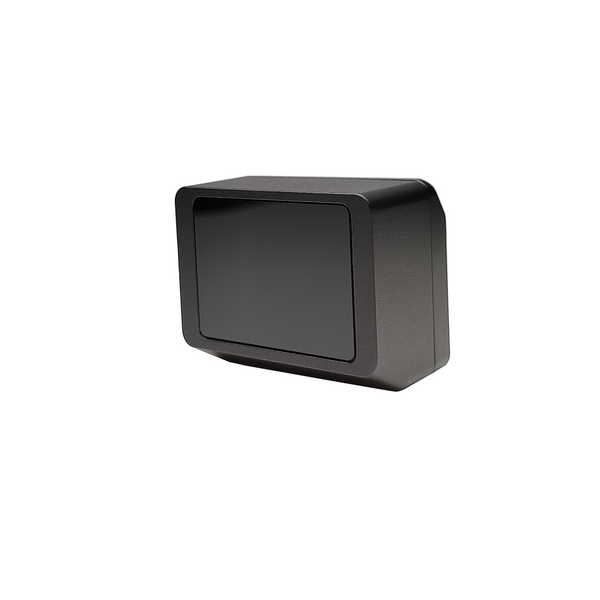

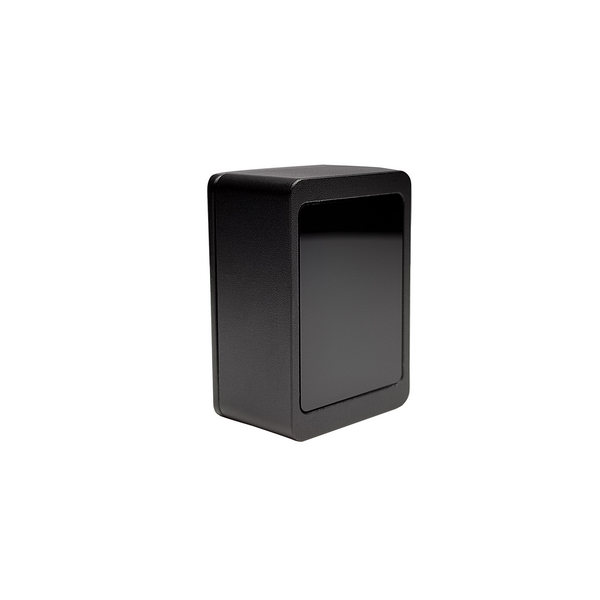

2MP OV02311 with ISP DMS Camera

DMSBBFAN camera module features the OmniVision OV02311 CMOS sensor, MAX96717F GMSL serializer, and a finely tuned ISP, this automotive‑grade camera delivers high‑quality imaging with 940nm infrared sensitivity for low‑light and night‑vision applications.

$400.00
