SG17‑IMX735C‑G3A‑Hxxx is a 17MP GMSL3 automotive camera module purpose‑built for advanced autonomous driving applications. It integrates SONY CMOS image sensor IMX735 with Maxim’s GMSL3 serializer MAX96793, offering a large 1/1.17‑inch optical format and 2.1 μm pixel size. Through professional image tuning, the module delivers high‑quality RAW data output. Equipped with an M21/AA‑grade on‑board lens, the complete module achieves an IP64 protection rating. It supports multiple resolution outputs and multi‑camera synchronization, making it an ideal sensor for high‑precision environmental perception and long‑range object recognition.

Feature

High Resolution & Long‑Range Recognition: Offering up to 17 MP resolution, the module ensures clear capture and long‑range target recognition, boosting perception and safety for autonomous systems.
Superior High Dynamic Range (HDR): With SONY IMX735’s pixel design and HDR support, dynamic range reaches up to 140 dB in priority mode, ensuring accurate detection under extreme lighting changes (e.g., tunnels).
Ultra‑Fast GMSL3 Transmission & Low Latency: GMSL3 (MAX96793) delivers up to 12 Gbps bandwidth for real‑time high‑res data transfer. External trigger and multi‑camera sync ease multi‑sensor fusion integration.
Automotive‑Grade Design & High Reliability: Automotive‑grade design ensures –40 °C to +85 °C operation and IP64 protection, suitable for harsh vehicle and industrial environments.
Flexible Configuration & Adaptability: Supports resolutions up to 3000×5760, 3000×4000, 2160×3840 at 45 fps max, with multiple lens options for different FOVs, adapting to various distance and view needs.

Specification

Product	SG17-IMX735C-G3A-Hxxx
Sensor	SONY 17.42MP IMX735 RGGB
Output Pixels	30005760/30004000/2160*3840
Frame Rate	Max 45fps
HDR Support	Yes
LEM	Yes
Output data	MIPI / RAW 12
Serializer	MAXIM MAX96793
Camera Interface	GMSL3
Power Supply	9~16V POC
Current	<200mA@12VDC
Connector	TE（MATE-AX 2-2380600-1)
Operating temp. range	-40~+85℃
Dimensions	W: 40mm, L:40mm, H:37.3mm
Weight	<120g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	Water- proof	Lens Mount
SG17-IMX735C-G3A-H20MA	24°	16.2°	1.6	29.3	IP64	AA
SG17-IMX735C-G3A-H100MA	96°	47°	1.6	7.26	IP64	AA
SG17-IMX735C-G3A-H190MA	185°	173°	2.0	2.14	IP64	AA

Note :
The height of this module varies when matching different lenses. Please refer to 3D digital analog size for details. Camera accessories include 1 Fakra adapter cable, the specific dimensions refer to the figure above.
This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

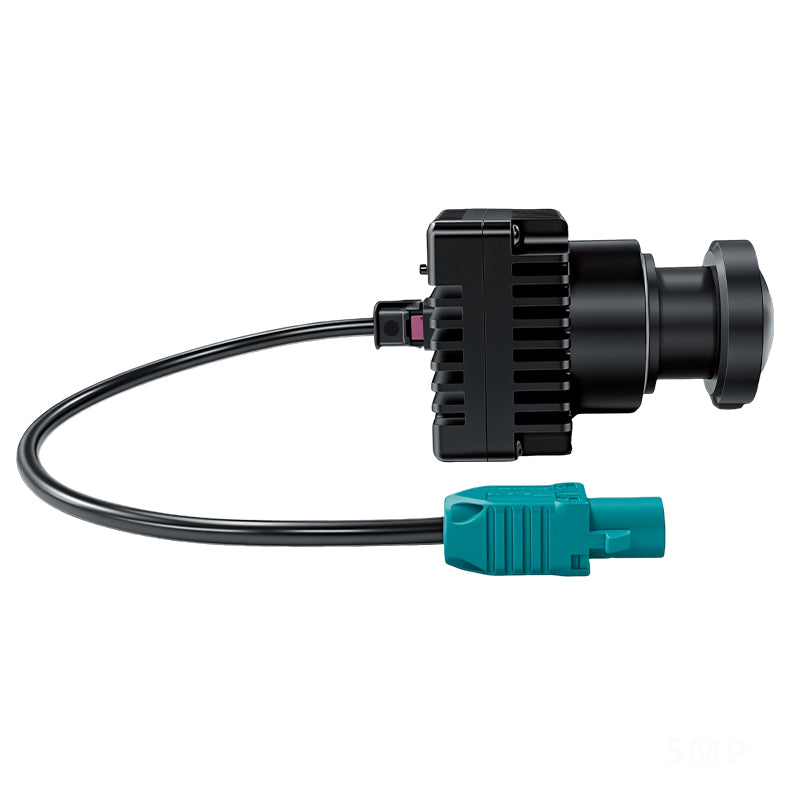

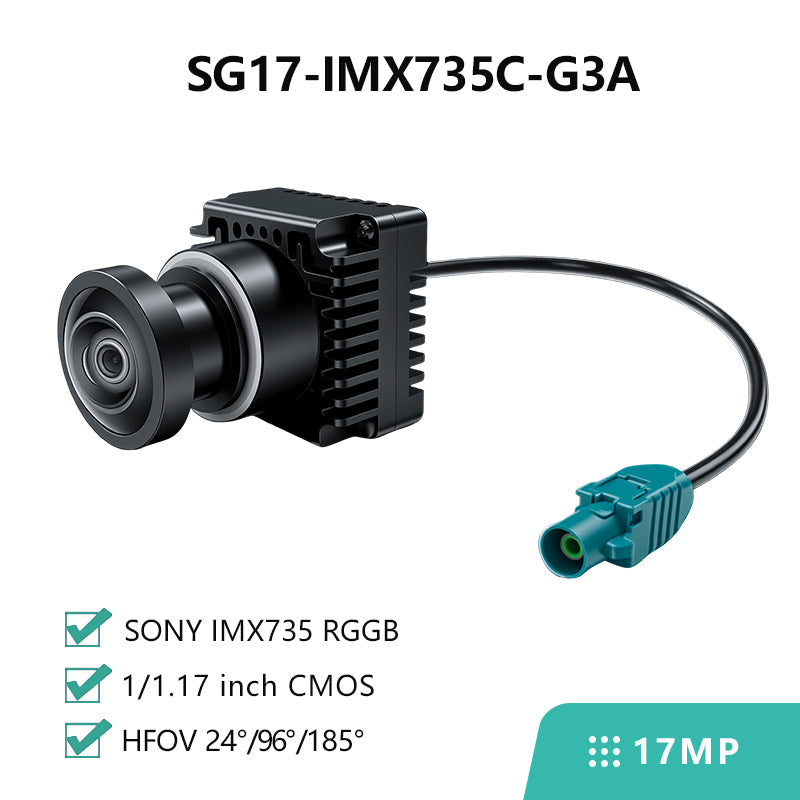

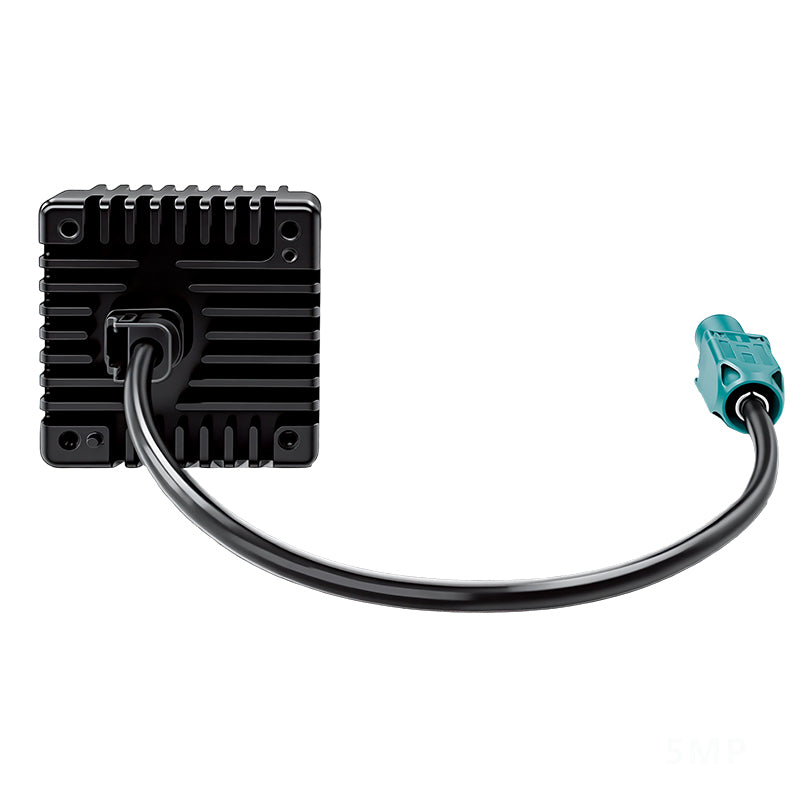

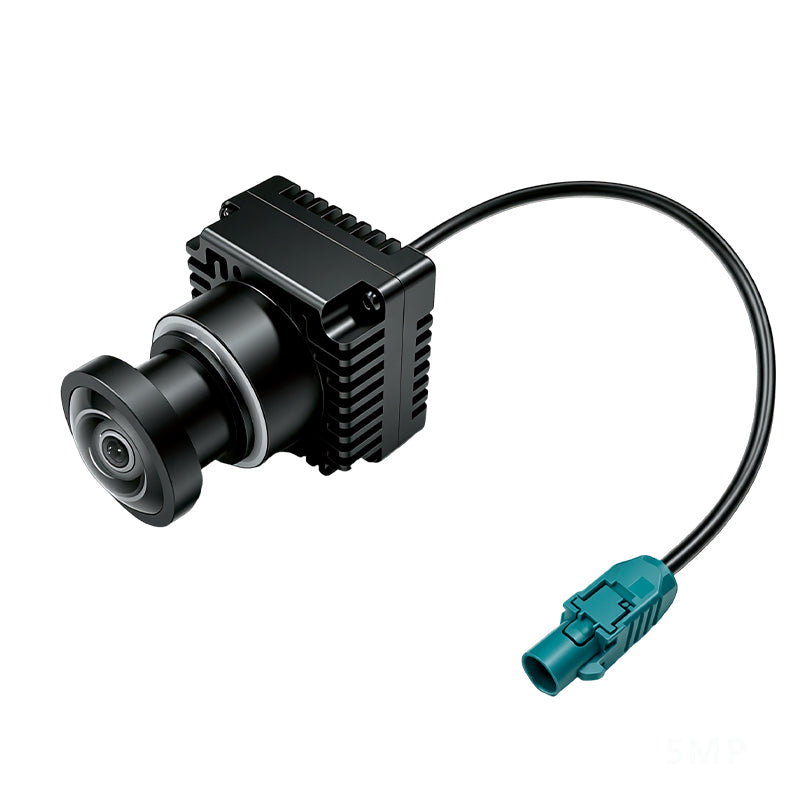

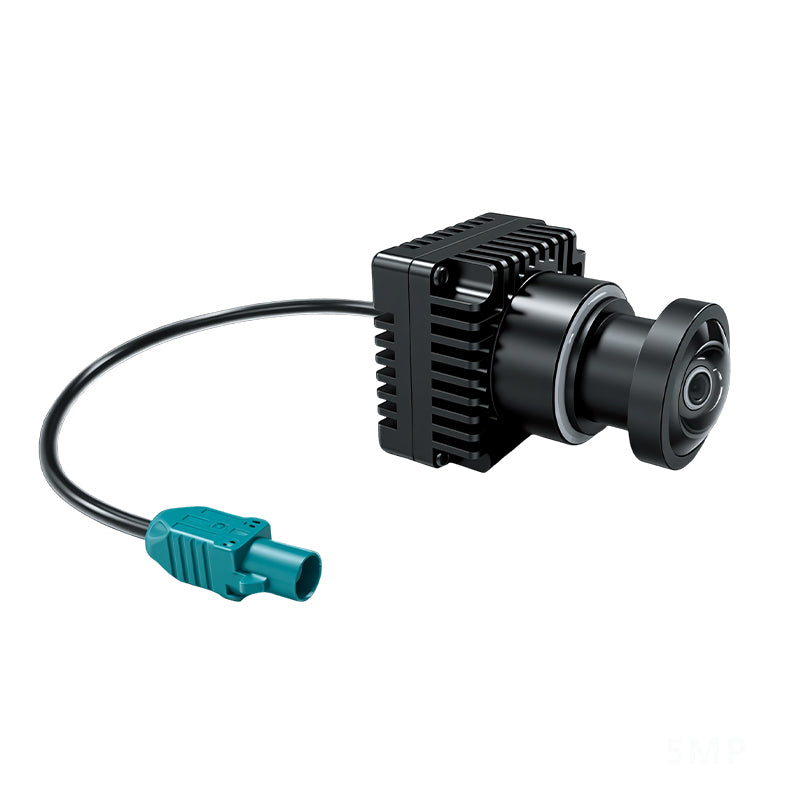

17MP IMX735 without ISP GMSL3 Camera
