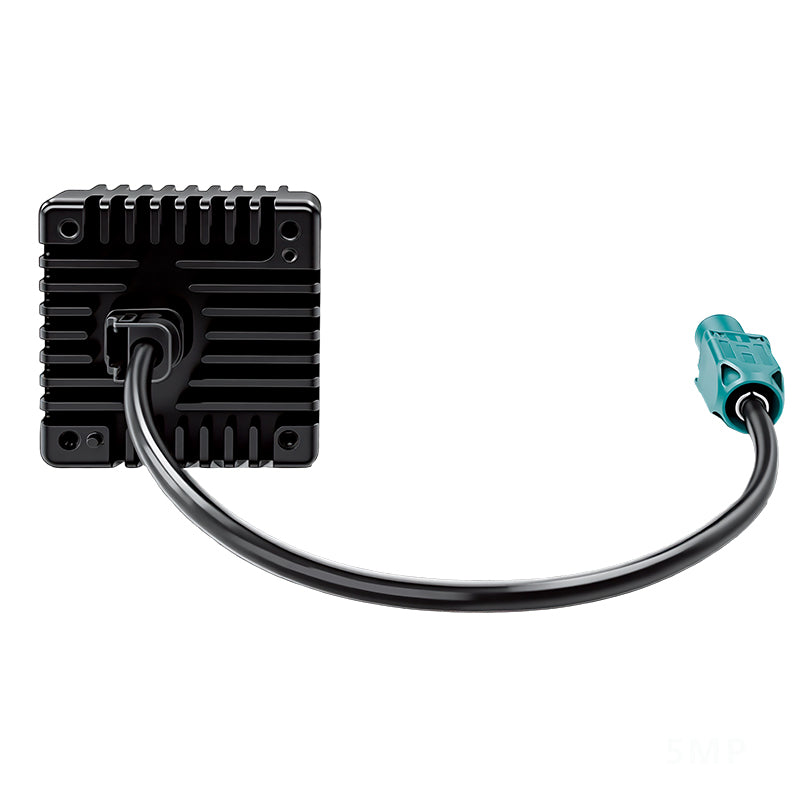

17MP IMX735 without ISP GMSL3 Camera

    $676.00 USD
    In stock!

    Product description

    Overview
    SG17-IMX735C-G3A-Hxxx camera module is equipped with SONY CMOS image sensor IMX735 and Maxim GMSL3 serializer (MAX96793) to develop and design. It conforms to the performance of the vehicle specification and has a high-quality image effect after professional image debugging; And equipped with M21/AA on-board specifications lens, the module as a whole can reach IP64 protection level.

    Specifications
    • Model : SG17-IMX735C-G3A-Hxxx
    • Sensor : SONY 17.42MP IMX735 RGGB
    • Image Size : 1/1.17 inch CMOS
    • Resolution : 3000Hx5760V/3000Hx4000V/2160Hx3840V
    • Frame Rate : Max 45fps
    • Connector : TE (MATE-AX 2-2380600-1)
    • Output data : MIPI / RAW 12
    • Serializer : MAXIM MAX96793
    • Operating temp.range : -40°C～+85°C
    • Dimensions : 40mm*40mm*37.3mm
    • Weight : <120g
    • HFOV :  26°/96°/185°
    Features
    • Output RAW data
    • Comply with vehicle regulations protection class
    • External trigger support
    • Multi-camera synchronization is supported
    • Supports different focal length lenses
    Application
    • Automotive
    • ADAS + Viewing Fusion
    • High Dynamic Range Imaging
    • Autonomous Driving
    • Robots
    Model and Lens

    Dimensifaceons

    Note :
    The height of this module varies when matching different lenses. Please refer to 3D digital analog size for details。Camera accessories include 1 Fakra adapter cable, the specific dimensions refer to the figure above.
    This icon indicates the imaging direction is positive.

    Technical documents

    Product specifications and instructions
    Camera Module Installation Guidance
    Camera Triggering and Synchronization Instructions
    SerDes configuration file

    Aftercare

    Thank you for choosing our product. We will provide you with 1 year of free after-sales service.

    If you encounter any technical problems during installation or use, please feel free to consult our customer service, and we will provide you with comprehensive technical services.

    For product quality defects caused by product design and manufacturing reasons, our company will replace similar products for you free of charge, and the resulting costs will be borne by our company.
