3MP GMSL2 HeatClear Camera
$419.00 USD
In stock!
Overview

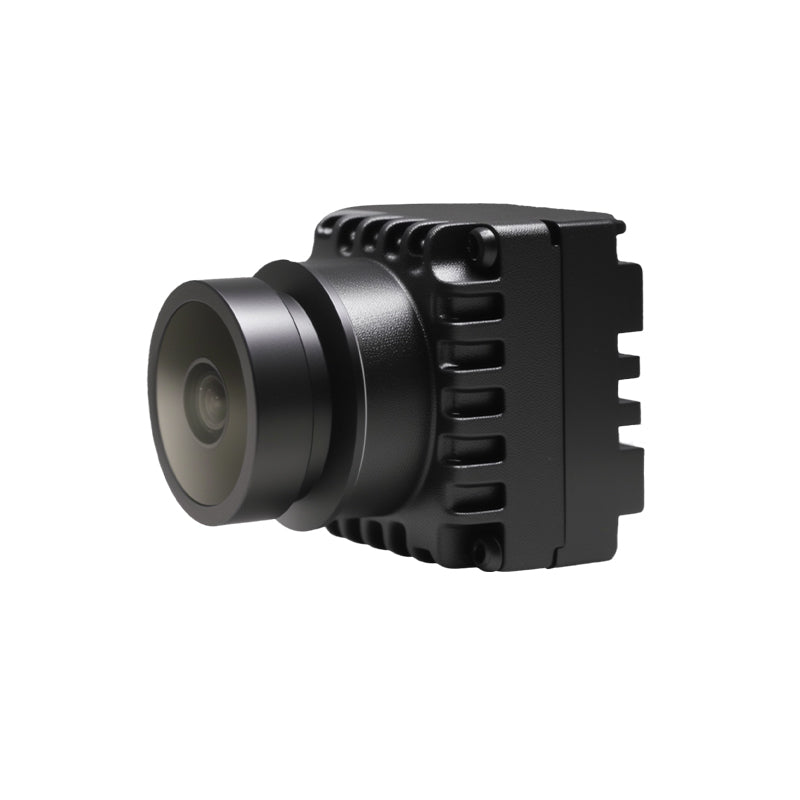

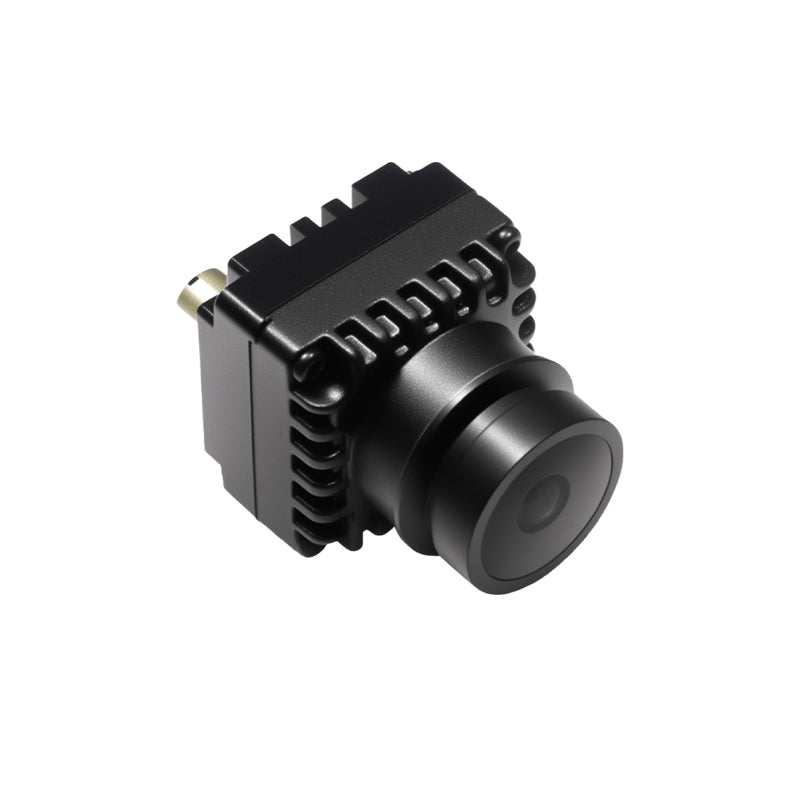

RedFox-D3Gx camera module is equipped with the SONY automotive-grade CMOS image sensor and Maxim GMSL serializer. It features a well-tuned Image Signal Processor (ISP) that delivers exceptional image quality. Housed in an IP67-rated enclosure, the camera is supplied with an AA lens that is precisely focused and factory-glued to ensure stability and performance.
Specifications
- Model : RedFox-D3Gx
- Sensor : SONY 2.95MP RGGB
- ISP : Built-in
- Image Size : 1/2.42 inch CMOS
- Output Pixels : 1920H*1536V @30fps（default）
-
Resolution : center ≥950LW/PH, around ≥800LW/PH

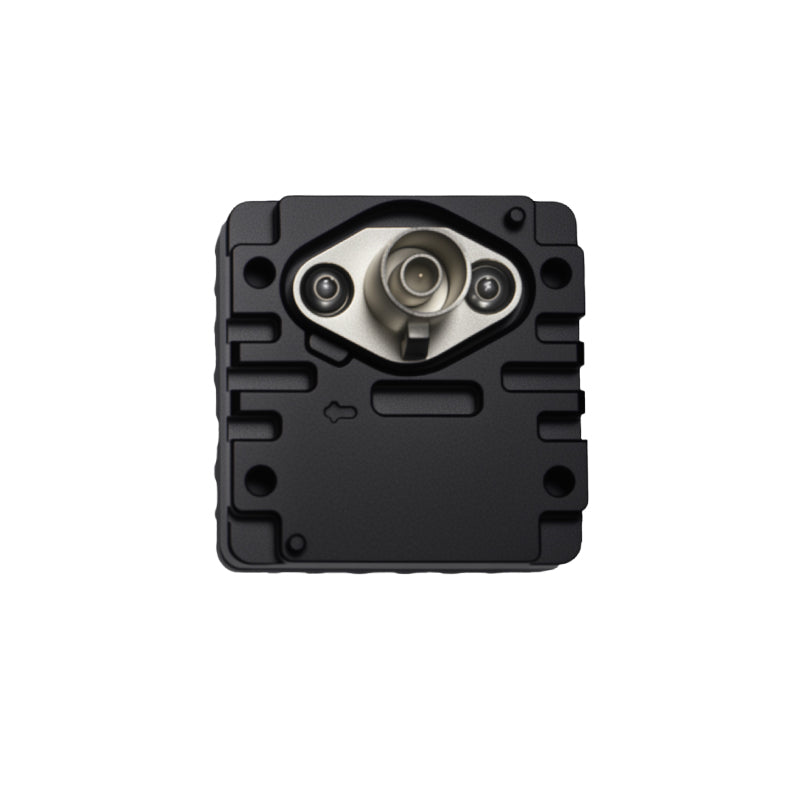

- Connector : Amphenol Fakra（ Z Code ）
- Output data : YUV422@8bit
- Serializer : MAXIM MAX96793
- Sensor Type : Rolling shutter
- Operating temp.range : -40°C～+85°C
- Dimensions : 30mm*30mm*35mm
- Weight : <100g
- HFOV : 70°
Features
- Output format YUV422
- Multi−Camera synchronization
- Multiple FOV options available
- RoHS
Application
- Automotive
- Adas Multi-sensor fusion
- High Dynamic Range Imaging
- Autonomous Driving
- Robots
Model and Lens
Dimensions
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
