• 8MP High‑Resolution Imaging: Equipped with the Onsemi AR0820 sensor, delivering 3840×2160 @ 30 fps in YUV422 format. Captures fine details for advanced perception tasks in ADAS, autonomous driving, and robotics.

• HDR & LED Flicker Mitigation (LFM): Built‑in High Dynamic Range and LFM effectively handle extreme lighting conditions and suppress flicker from traffic lights and digital displays, ensuring stable and reliable image quality.
• Integrated ISP for Simplified Backend Development: The on‑board GW5300 ISP outputs YUV data directly, eliminating the need for external sensor configuration. This reduces development complexity and accelerates system integration.
• Multi‑Camera Synchronization & External Trigger: Supports hardware frame synchronization and external trigger inputs, making it ideal for multi‑sensor fusion systems in surround‑view, collaborative detection, and other complex scenarios.
• GMSL2 High‑Speed Interface: Features the Maxim MAX9295A serializer with up to 6 Gbps data rate and Power over Coax (PoC). Supports cable lengths up to 20 meters, simplifying wiring and enhancing system reliability.
• Wide Temperature Range & Rugged Protection: Operates from –40°C to +85°C and comes in an IP67‑rated housing, providing dust and water resistance for reliable performance in harsh outdoor and automotive environments.

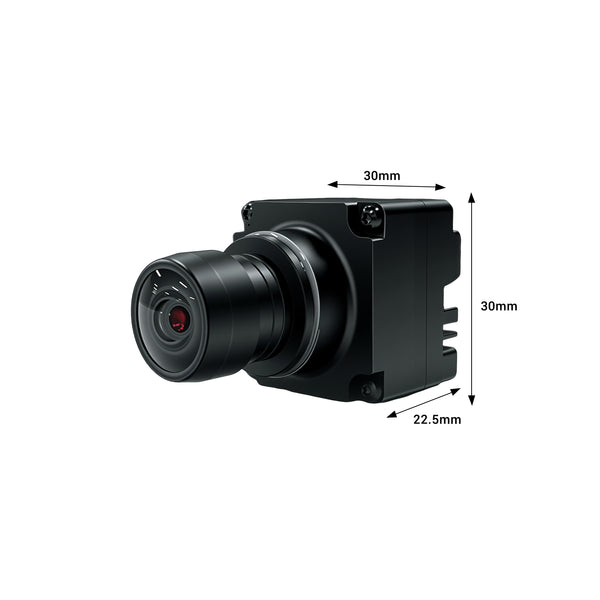

• Flexible Lens Options & Compact Form Factor: Available with multiple field‑of‑view variants (H30° / H60° / H120°). Pre‑focused AA lenses and a compact 30×30 mm footprint allow easy integration into space‑constrained designs.

Specification

Lens Spec & Dimensions

Application
