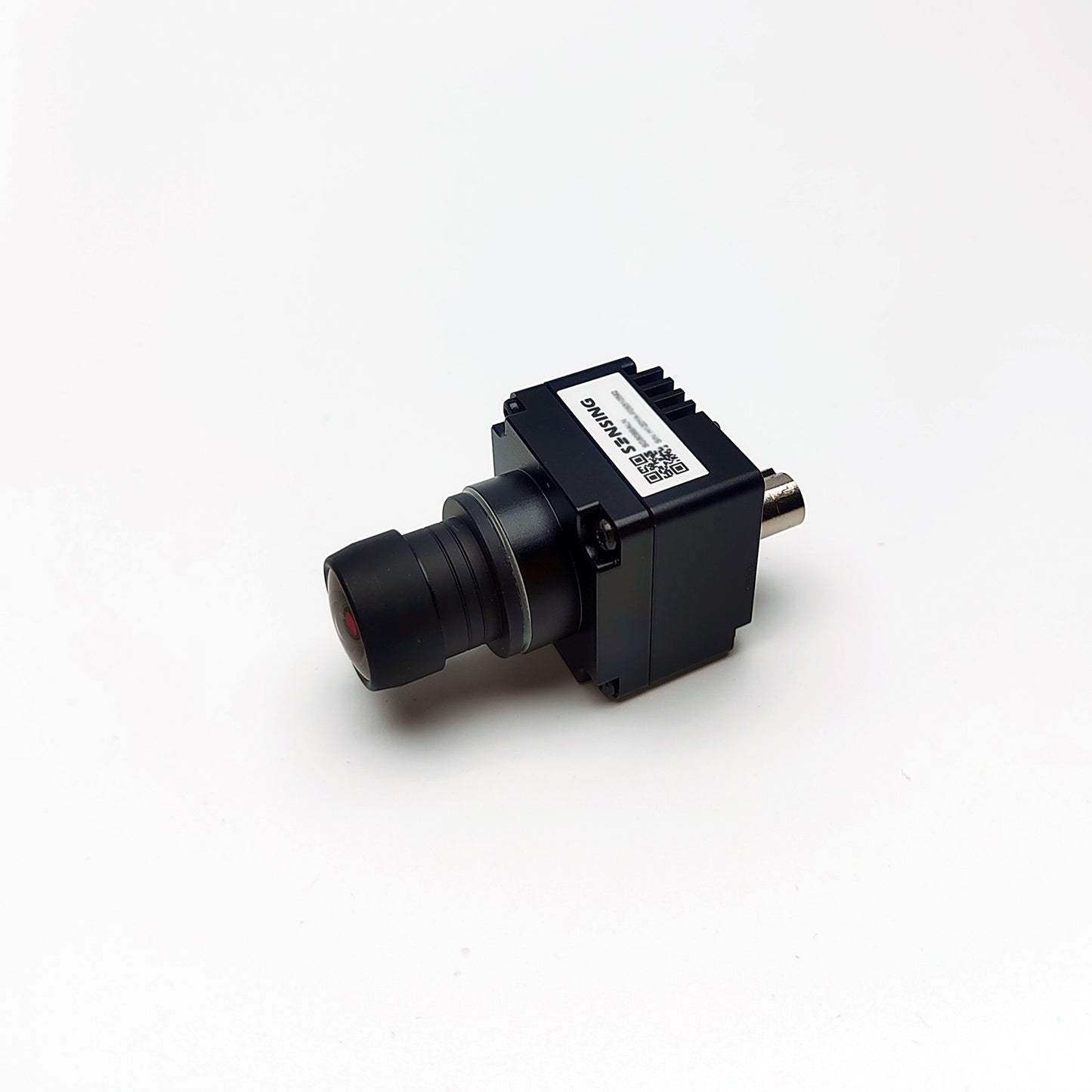

SG8-IMX728C-G3A-Hxxx camera module is equipped with SONY CMOS image sensor IMX728 and Maxim GMSL3（Max96793）. It has an automotive-grade sensor without ISP, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.

Feature

8MP Resolution & Long‑Range Perception: Equipped with the SONY 8.39MP IMX728 CMOS sensor, it outputs 3840×2160 at up to 40 fps, capturing clear details to meet the needs of ADAS, autonomous driving, and robotics applications.
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under extreme lighting changes, effectively enhancing environmental adaptability for perception systems.
Ultra‑Fast GMSL3 Transmission & Multi‑Camera Sync: Adopting the Maxim GMSL3 serializer (MAX96793) with up to 12 Gbps bandwidth, it ensures real‑time, lossless RAW data transmission, while supporting external trigger and multi‑camera frame synchronization.
Reliability & IP67 Protection: Operating from –40 °C to +85 °C with an IP67‑rated waterproof and dustproof housing, it performs reliably in harsh environments such as automotive, industrial, and outdoor robotics.
Flexible Options & Platform Compatibility: Multiple lens options are available to suit different distance and field‑of‑view coverage requirements.

Specification

Product	SG8-IMX728C-G3A-Hxxx
Sensor	SONY 8.39MP IMX728 RGGB
Output Pixels	3840H*2160V
Frame Rate	Max 40fps
HDR Support	Yes
Output data	MIPI / RAW 12
Serializer	MAXIM MAX96793
Camera Interface	GMSL3
Power Supply	9~16V POC
Current	<400mA@12VDC
Connector	Amphenol（Z Type Fakra）
Operating temp. range	-40~+85℃
Dimensions	W: 30mm, L:30mm, H:22.57mm
Weight	<50g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	Max Optical Distortion	Water- proof	Lens Mount
SG8-IMX728C-G3A-H30YA	30°	17°	1.6	15.34	-2.7%	IP67	AA
SG8-IMX728C-G3A-H120YA	120°	66°	1.6	4.01	-57.9%	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

8MP IMX728 without ISP GMSL3 Camera

SG8-IMX728C-G3A is specially designed for automotive applications. It integrates the SONY IMX728 CMOS sensor with a Maxim GMSL3 interface, and delivers high‑quality imaging through professional tuning. The module is IP67‑rated and comes with an AA lens that is precisely focused and factory‑glued, ensuring high reliability and consistent performance.

$549.00

Shipping & duties calculated at checkout.

Model: SG8-IMX728C-G3A-H30YA

SG8-IMX728C-G3A-H30YA SG8-IMX728C-G3A-H120YA
