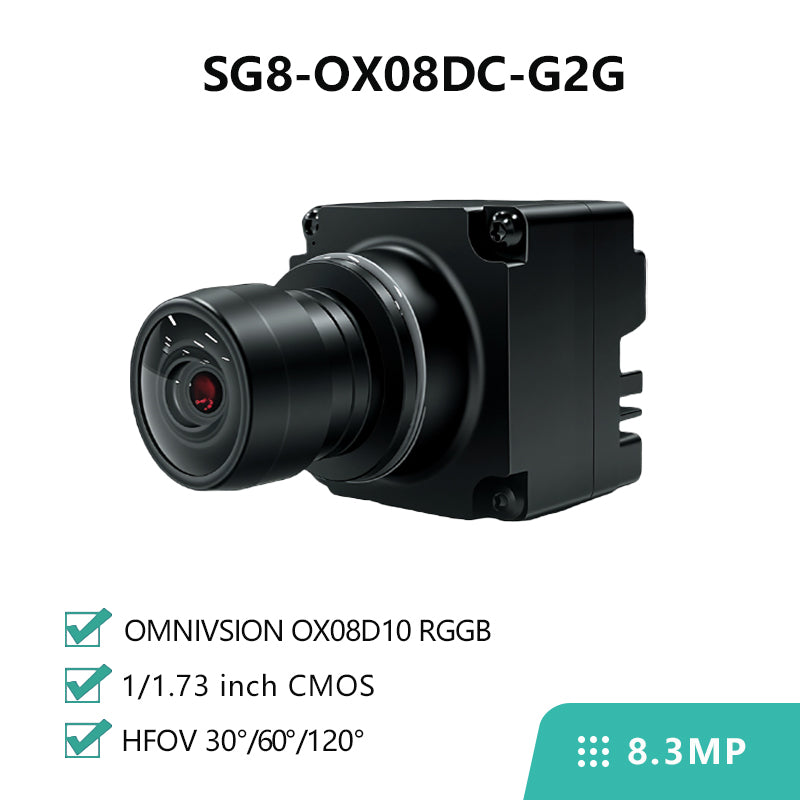

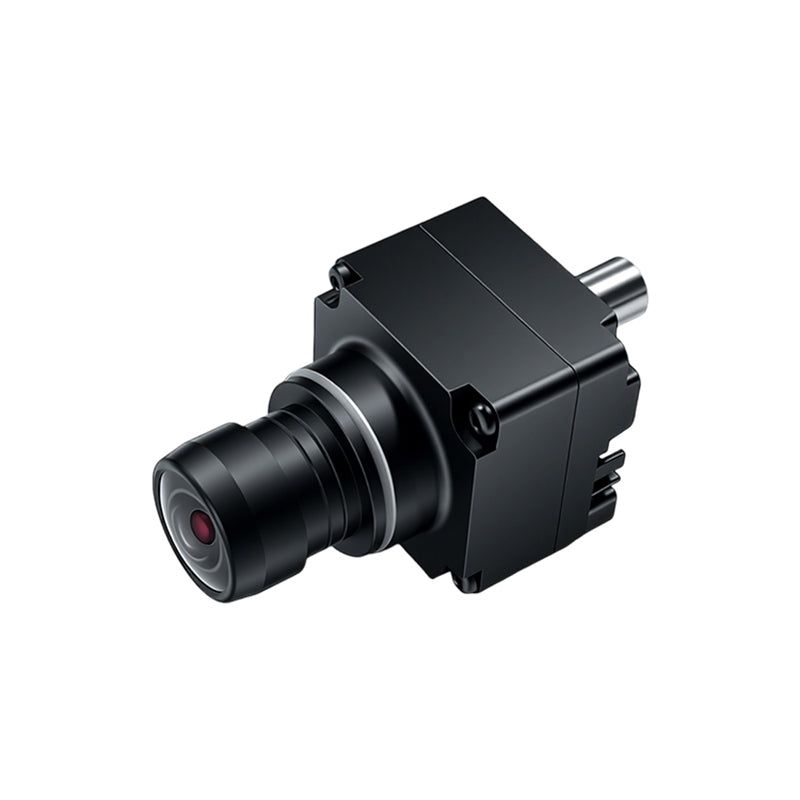

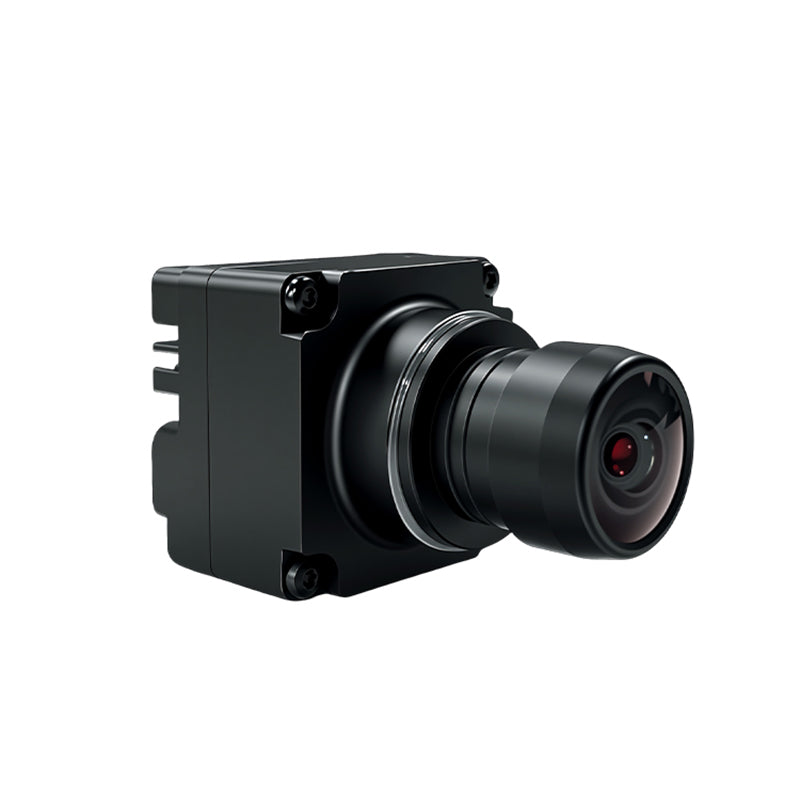

SG8-OX08DC-G2G-Hxxx camera module is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2(MAX96717G). It has an automotive-grade sensor, which comes with an IP67-rated enclosure – is supplied with AA lens that is focused and glued in our factory.

Feature

8MP high-resolution imaging: 3840×2160 output, up to 45 fps, delivering fine details for advanced perception tasks.
DR and LED flicker mitigation (LFM): HDR preserves details in extreme lighting; LFM effectively suppresses flicker from traffic lights and displays.
RAW data output for flexible processing: outputs RAW12, allowing back‑end processors to freely customize image processing pipelines for various algorithms.
Multi‑camera sync & external trigger: Supports frame synchronization and external trigger input, facilitating multi‑sensor fusion systems (ADAS, autonomous driving, robotics).
GMSL2 high‑speed interface: 6 Gbps data rate with PoC (Power over Coax), supporting cable lengths up to 20 meters and simplifying wiring.
Wide temperature range & high protection: Operating from –40°C to +85°C; IP67‑rated housing for dust and water resistance, ensuring reliable performance in harsh weather and road conditions.

Specification

Product	SG8-OX08DC-G2G-Hxxx
Sensor	OMNIVSION 8.3MP OX08D10 RGGB
Output Pixels	3840H*2160V
Frame Rate	Max 45fps
HDR Support	Yes
LEM	Yes
Output data	RAW 12
Serializer	MAXIM MAX96717G
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<200mA@12VDC

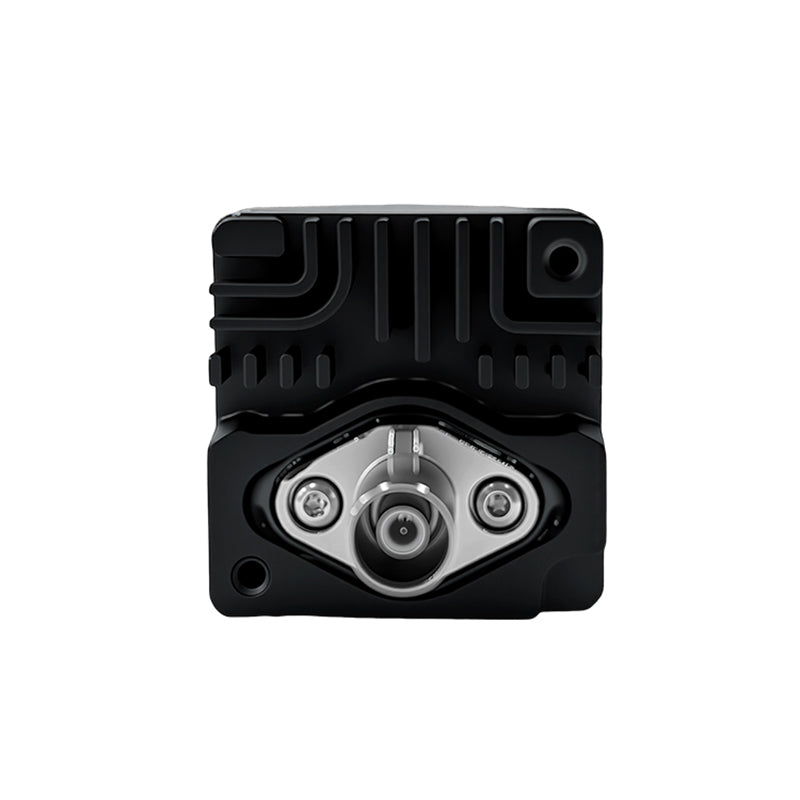

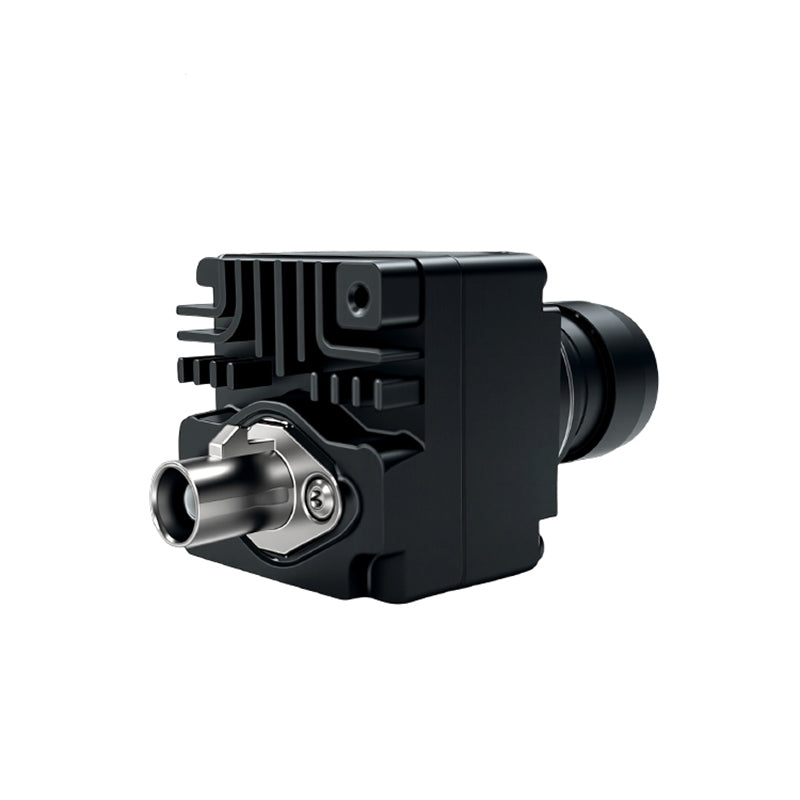

Connector	Amphenol（Z Type Fakra）
Operating temp. range	-40~+85℃
Dimensions	W: 30mm, L:30mm, H:22.5mm
Weight	<100g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	Water- proof	Lens Mount
SG8-OX08DC-G2G-H30YA	30°	17°	1.6	15.3	IP67	AA
SG8-OX08DC-G2G-H60SA	60°	33°	1.8	7.87	IP67	AA
SG8-OX08DC-G2G-H120YA	120°	66°	1.6	4.01	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

8MP OX08D10 without ISP GMSL2 Camera

SG8-OX08DC-G2G-Hxxx is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2. It has an automotive-grade sensor, which comes with an IP67-rated enclosure – is supplied with AA lens that is focused and glued in our factory.

$549.00

Shipping & duties calculated at checkout.

Model: SG8-OX08DC-G2G-H30YA

SG8-OX08DC-G2G-H30YA SG8-OX08DC-G2G-H60SA SG8-OX08DC-G2G-H120YA
