CoaxCapture ll GMSL Video Capture Card CCG3-8M

Other things you might like

2MP AR0233 with ISP GMSL2 Camera

3MP ISX031 with ISP GMSL2 Camera

8MP ISX028 with ISP GMSL2 Camera

3MP ISX031 with ISP GMSL2 Camera

5MP Global Shutter Monocular Camera

5MP Global shutter Stereo Camera S56x

Product Details

Support WiKi

Resources

Overview

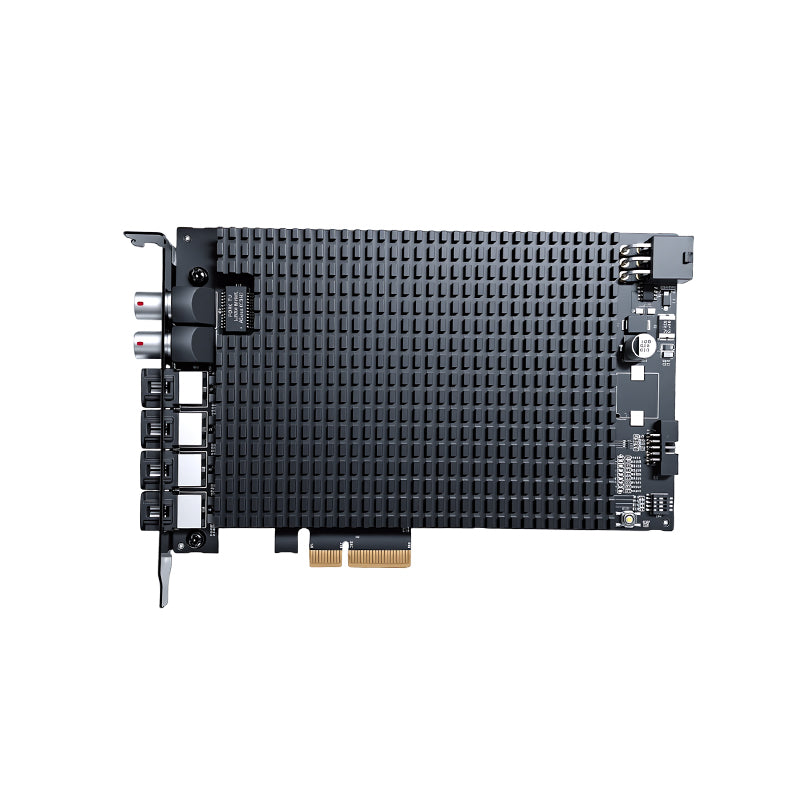

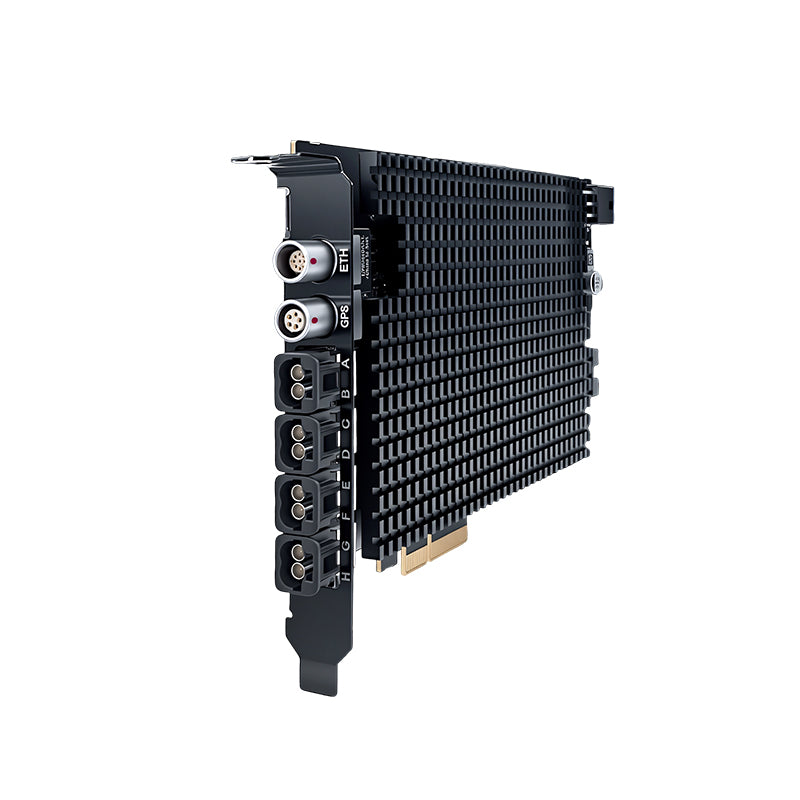

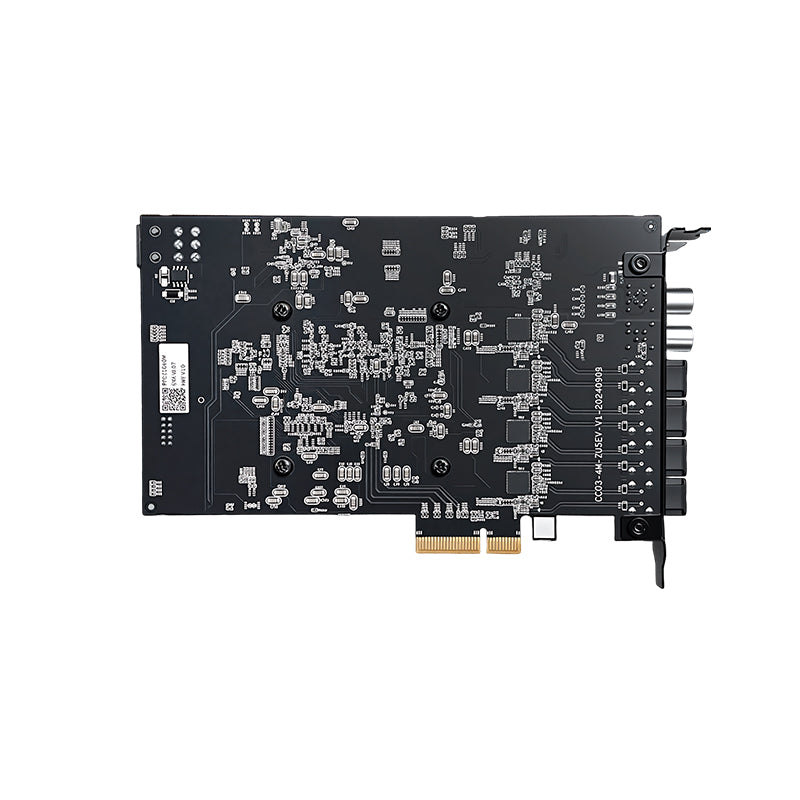

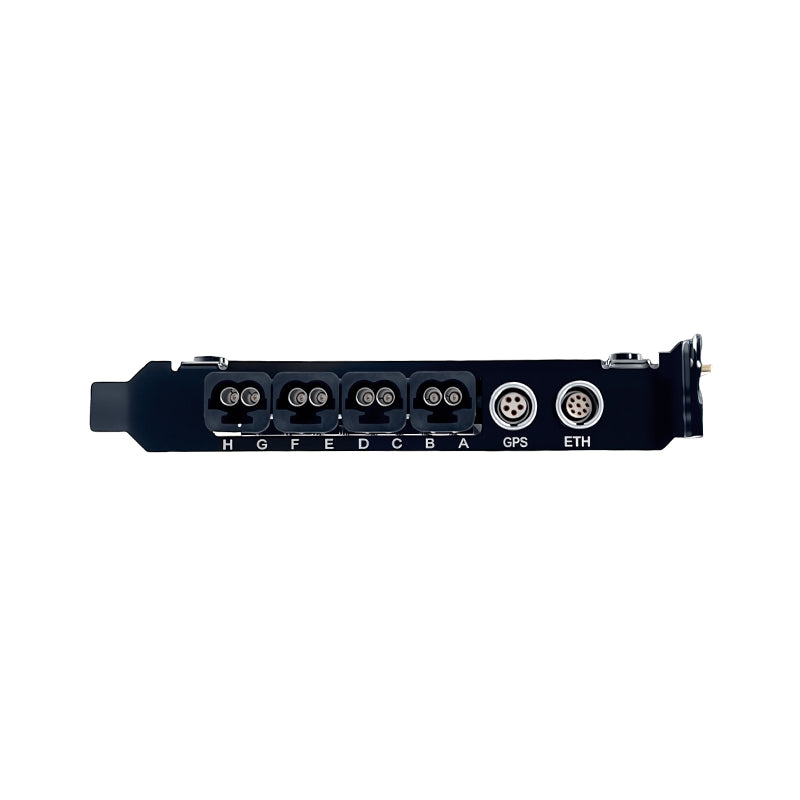

CCG3-8M CoaxCapture ll GMSL Video Capture card (hereinafter referred to as Capture Card) is an image capture product that can connect GMSL cameras. It has the advantages of high frame rate, high speed, low delay, etc., and it is widely used in unmanned vehicles, automatic driving, autonomous machines, data capture and other scenes.

Specifications

Model : CCG3-8M
Processor : Xilinx ZU+system processor
PC Bus Interface : PCI Express x4 (Gen 3)
Standard : GMSL
Serializer Supported : MAX96705/MAX9295A/MAX96717F/MAX96717...
Power Output : Power Over Cable 4W/9.5V per cable
Camera Support : 8 cameras input
Camera Resolution : 1-8Mega pixel
Bit Depth : 8 bit (YUV422), 8/12/16-bit (RAW)
Software Drivers : Linux 64-bit,Ubuntu18.04/20.04
Operating Temperature : -20°C to 70°C
Storage Temperature : -40°C up to 80°C
Dimensions : 167.64mm * 111.15 mm
Weight : 300g

Features

8 GMSL cameras input, support up to 8 Mega Pixels@ 30 fps
PCI-e Gen2*4lane
Support external trigger synchronization
Support GPS Timing synchronization
Support network PTP timing synchronization

Application

Embodied intelligence/machine

2 PCI-e slots support up to connect 16 GMSL cameras
Max support 4K@30fps pixel input
PCI Express 3.0
Support synchronous alignment of multiple cameras and lidars
Support the function of timestamp in the capture card
Ultra low latency
Support fetching camera exposure parameter

Autonomous machine data capture

2 PCI-e slots support up to connect 16 GMSL cameras
Max support 4K@30fps pixel input
PCI Express 3.0
Support synchronous alignment of multiple cameras and lidars
Support the function of timestamp in the capture card
Ultra low latency
Support fetching camera exposure parameter

More Detailed User Guide

Welcome to the Wiki Service Platform, where you can access related product and technical documentation.
Please obtain the SDK driver through the Github link.

CoaxCapture ll GMSL Video Capture Card CCG3-8M

【CoaxCapture】Gen2 Video Capture Card – a FPGA‑based high‑speed image product for autonomous machines. With PCI‑e Gen2, speed and bandwidth are doubled. It connects GMSL/GMSL2 cameras, featuring high frame rate, high speed, low latency. Widely used in autonomous machines and embodied intelligence.

$6,000.00

Shipping & duties calculated at checkout.
