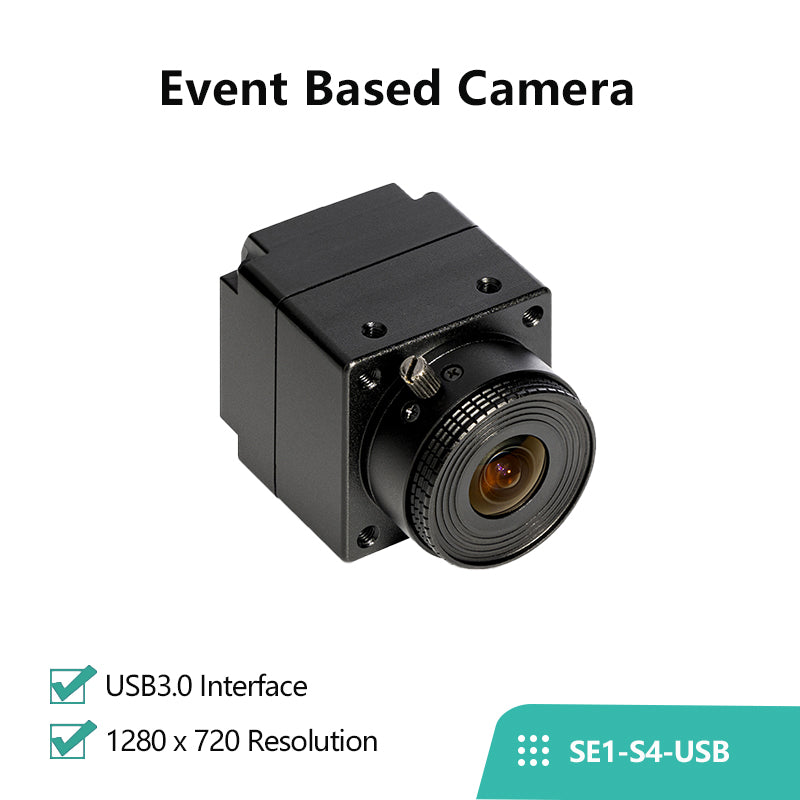

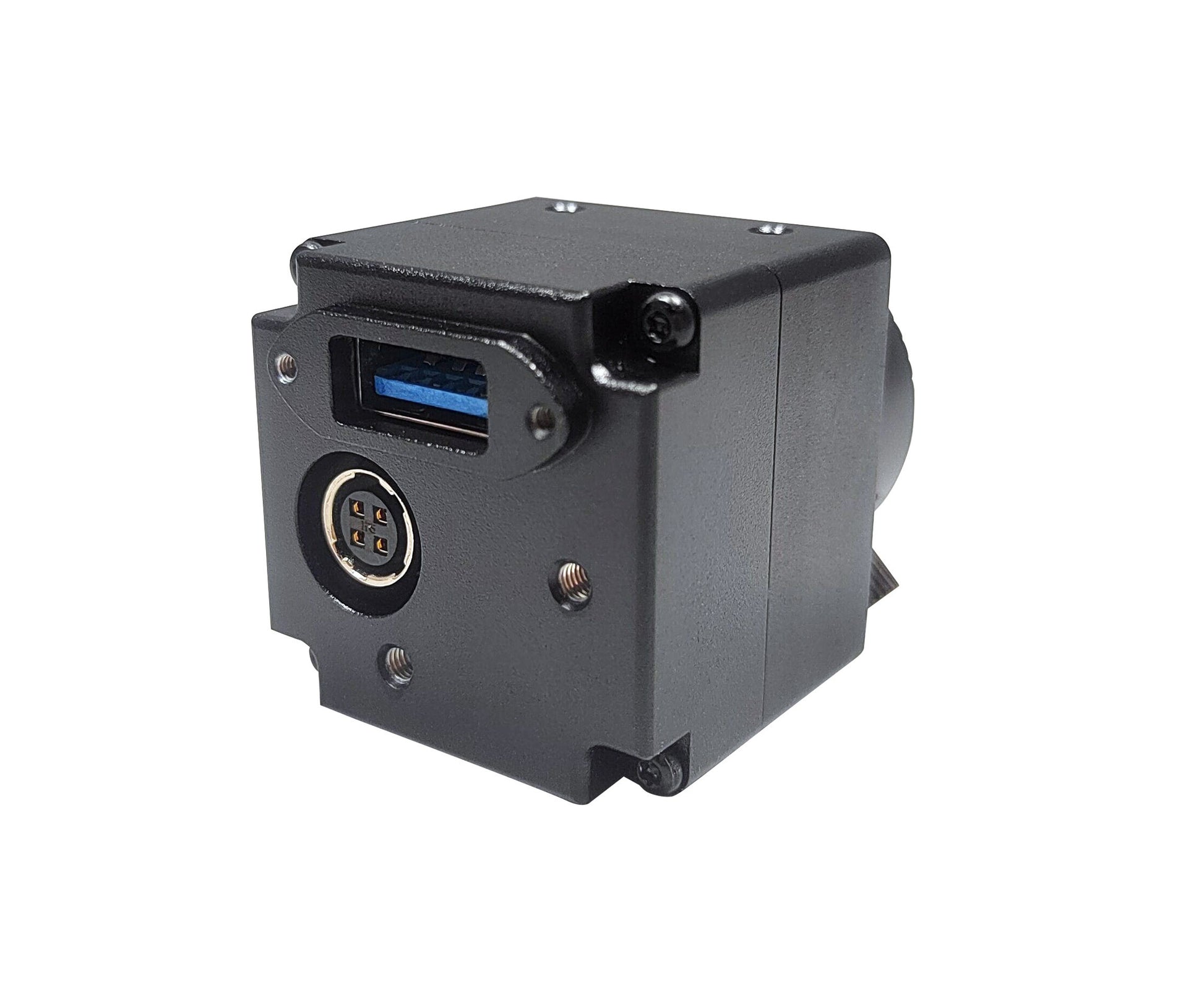

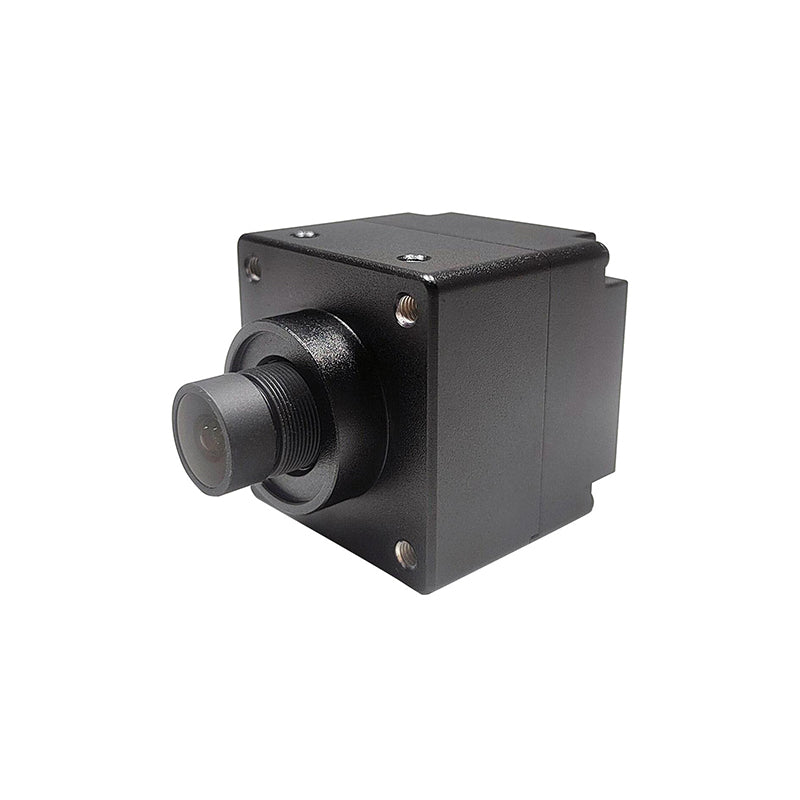

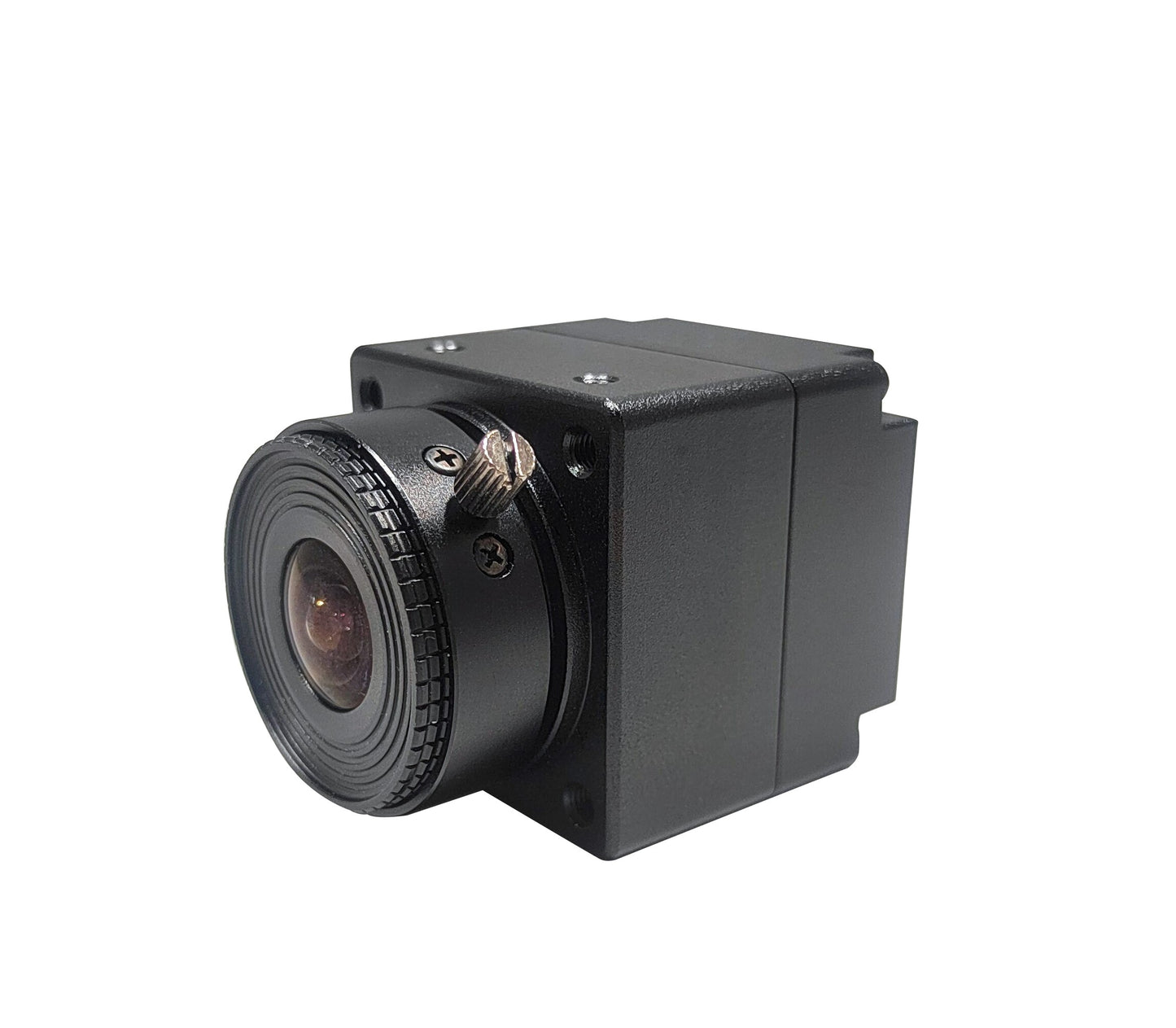

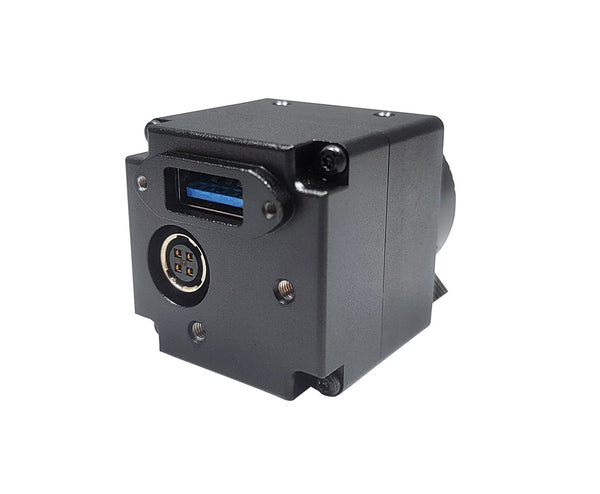

SE1-S4-USB is an Event‑based Vision Sensor (EVS) camera featuring the Sony IMX646 HD event‑based vision sensor. It outputs data over a USB 3.0 interface and is fully compatible with PROPHESEE's Metavision Intelligence software suite. Housed in a compact, lightweight aluminum alloy enclosure with M12 or CS lens mounts, this evaluation kit is designed for industrial inspection, driver assistance, and aerospace applications, enabling developers to explore the power of event‑based vision in real‑world field conditions.

Feature

HD Event‑Based Vision Sensor: Equipped with the SONY IMX646 stacked event‑based vision sensor (1/2.5" format, 4.86μm pixel pitch), it delivers 1280×720 resolution with asynchronous event output, capturing only pixel‑level brightness changes for ultra‑fast, efficient perception.
Ultra‑Low Latency & High Dynamic Range: With a latency of just 800 μs @ 1000 lux and a dynamic range exceeding 110 dB, the camera maintains reliable operation under extreme lighting variations, making it ideal for high‑speed and high‑contrast scenarios.
USB 3.0 Interface & Compact Design: Featuring a bus‑powered USB 3.0 interface with up to 1.6 Gbps bandwidth, it offers plug‑and‑play convenience. The ultra‑compact 35×35×35.27mm aluminum housing weighs only 80g, with multiple mounting points (4× M3 front, 8× M2.5 back) for easy system integration.
Flexible Lens & Connectivity Options: Available with M12 or CS mount lens variants, supporting various FOV options. A 4‑pin connector provides external trigger input, clock synchronization, and pixel matrix reset for precise timing control.
Comprehensive Software Ecosystem: Fully compatible with PROPHESEE Metavision Intelligence 3.1 and later, providing access to the industry's most comprehensive event‑based vision software suite, including studio tools, sample code, and application examples for rapid development.
Ruggedized for Field Testing: Built with high‑quality aluminum alloy and rated for field testing conditions, it delivers reliable performance in industrial, automotive, and aerospace environments.

Specification

Resolution (px)	1280 x 720
Pixel size (μm)	4.86 x 4.86
Interface (data output)	USB 3.0
Latency (μs)	800 us @ 1000lux
Camera Max. Bandwidth (Gbps)	1.6
Dynamic Range (dB)	>110*
Camera power (W)	<3
Trigger In	4Pin Connector
Sync In/Out	4Pin Connector
Nominal contrast threshold (%)	25
Readout throughput	20Mevents/s (default, setting changeable)
Power	Via USB
Dimensions	35mm x 35mm x 35mm
Weight	80g (excl. optic)

Lens Spec & Dimensions

Model	HFOV	VFOV	F.NO	EFL (mm)	Lens Mount
SE1-S4-USB-H70FM	66°	35°	F1.6	5.8	M12
SE1-S4-USB-H110FM	110°	58°	F1.6	3.55	M12
SE1-S4-USB-H130LM	131°	78°	F2.8	2.8	M12
SE1-S4-USB-H40LC	44°	25°	F1.8	8	CS
SE1-S4-USB-H130LC	134°	72°	F2.0	2.6	CS

▪ Detailed User Guide

Welcome to the Wiki Service Platform, where you can access related product and technical documentation.

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

Event Based Camera

SE1‑S4‑USB is an EVS camera that integrates the SONY IMX646 EVS image sensor and outputs via USB 3.0 interface. It is fully compatible with MetaVision software, making it ideal for industrial inspection, driver assistance, and aviation applications.

$2,500.00

Shipping & duties calculated at checkout.

Model: SE1-S4-USB-H70FM
