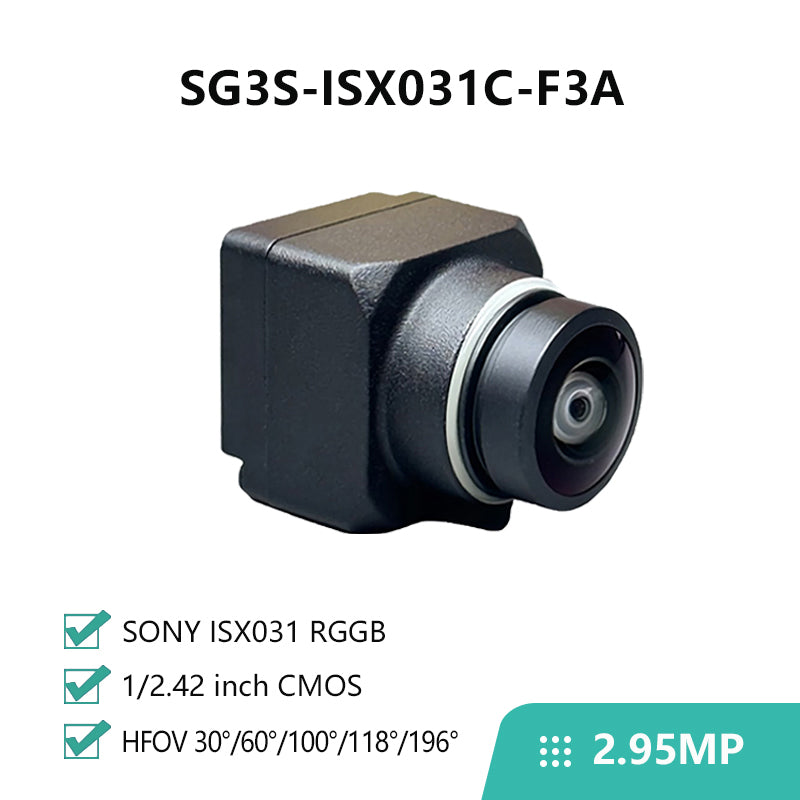

SG3S-ISX031C-F3A-Hxxx camera module is equipped with SONY CMOS image sensor ISX031 and TI FPDLink III. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.

Feature

3MP Resolution & Clear Vision: Equipped with the SONY 2.95MP ISX031 CMOS sensor and built‑in ISP, it outputs 1920×1536 at 30 fps with 3μm pixels, delivering exceptional image quality for ADAS, autonomous driving, and robotics applications.
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under extreme lighting changes, effectively enhancing environmental adaptability for perception systems.
FPDLink III Transmission & Multi‑Camera Sync: Adopting the TI FPDLink III serializer (DS90UB953) for high‑speed, uncompressed YUV422 data transmission, while supporting external trigger and multi‑camera frame synchronization.
Reliability & IP67 Protection: Operating from –40 °C to +85 °C with an IP67‑rated waterproof and dustproof housing, it performs reliably in harsh environments such as automotive, industrial, and outdoor robotics.
Flexible Options & Platform Compatibility: Multiple lens options are available to suit diverse distance and field‑of‑view coverage needs.

Specification

Product	SG3S-ISX031C-F3A-Hxxx
Sensor	SONY 2.95MP ISX031 RGGB
Output Pixels	1920H*1536V
Frame Rate	1920*1536@30fps
HDR Support	Yes
LEM	Yes
ISP	Built-in
Output data	YUV422@8bit
Serializer	TI DS90UB953
Camera Interface	FPDLink III
Power Supply	9~16V POC
Current	<200mA@12VDC

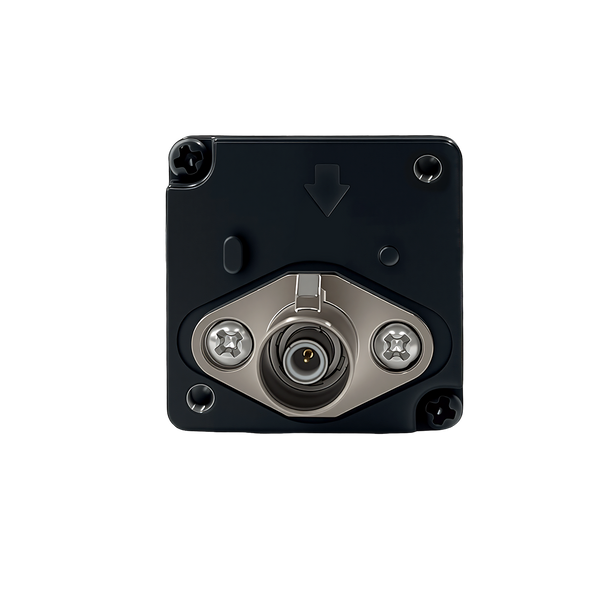

Connector	Amphenol（Z Type Fakra）
Operating temp. range	-40~+85℃
Dimensions	W: 25mm, L:25mm, H:18.6mm
Weight	<50g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	Max Optical Distortion	EFL (mm)	Water- proof	Lens Mount
SG3S-ISX031C-F3A-H30X	30°	24°	1.6	-2.5%	10.96	IP67	M12
SG3S-ISX031C-F3A-H60FA	60°	46°	1.6	-21%	5.8	IP67	AA
SG3S-ISX031C-F3A-H100F1A	100°	78°	1.6	-58%	3.55	IP67	AA
SG3S-ISX031C-F3A-H120UA	118°	92°	2.0	-92%	3	IP67	AA
SG3S-ISX031C-F3A-H190XA	196°	154°	2.0	-155%	1.51	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources

Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all FPDLink camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Employing Camera

View different scenarios for employing our cameras in various platforms and systems.

Employing Camera>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

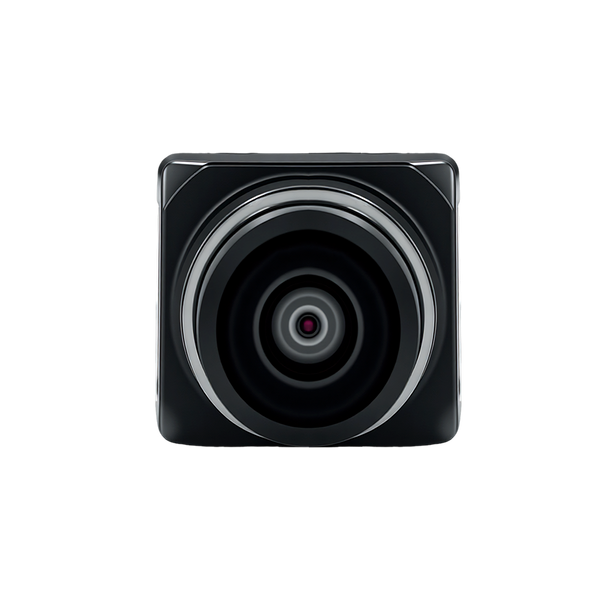

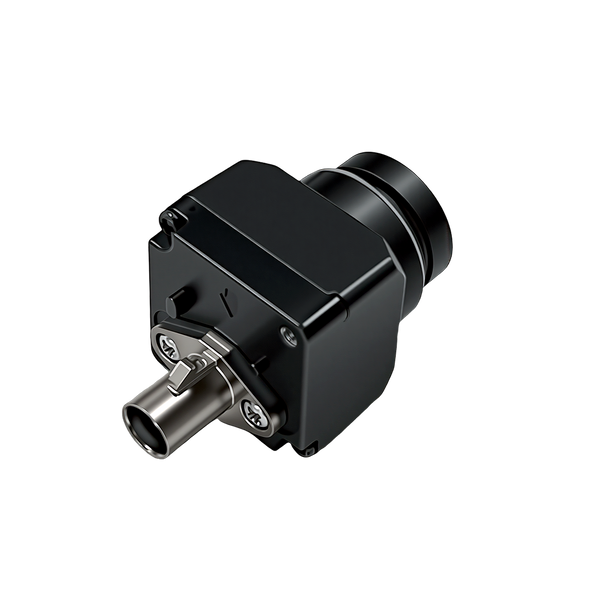

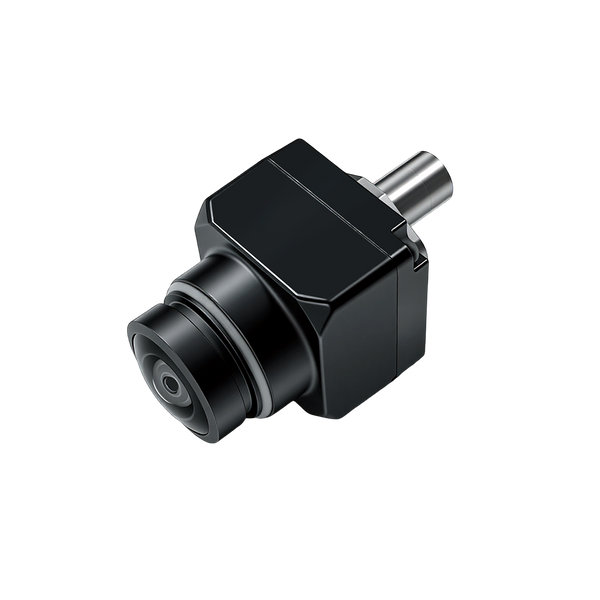

3MP ISX031 with ISP FPDLink III Camera
