Product Details

Support WiKi

Resources

SG5-IMX490C-5300-GMSL2-Hxxx is equipped with SONY Semiconductor CMOS image sensor IMX490 and Maxim GMSL2 . It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an M12/M15/M16/AA lens that is focused and glued in our factory.

Feature

5MP Resolution & Clear Vision: Equipped with the SONY 5MP IMX490 CMOS sensor and the GW5300 ISP, it outputs 2880×1860 at 30 fps with, delivering exceptional image quality for ADAS, autonomous driving, and robotics applications.
Superior HDR & Low‑Light Performance: The sensor natively supports HDR and LFM, maintaining clear highlight and shadow details under extreme lighting changes, effectively enhancing environmental adaptability for perception systems.
GMSL2 Transmission & Multi‑Camera Sync: Adopting the Maxim GMSL2 serializer (MAX9295A) with up to 6 Gbps bandwidth, it ensures real‑time, uncompressed YUV422 data transmission, while supporting external trigger and multi‑camera frame synchronization.
Reliability & Robust Protection: Operating from –40 °C to +85 °C with IP67/IP69K-rated waterproof and dustproof housing options, it performs reliably in harsh environments such as automotive, industrial, and outdoor robotics.
Flexible Options: Multiple lens options are available to suit different distance and field‑of‑view coverage requirements.

Specification

Product	SG5-IMX490C-5300-GMSL2-Hxxx
Sensor	SONY 5.44MP IMX490 RGGB
ISP	GW5300
Output Pixels	2880H*1860V
Frame Rate	2880*1860@30fps
HDR Support	Yes
LEM	Yes
Output data	YUV422@8bit
Serializer	MAXIM MAX9295A
Camera Interface	GMSL2
Power Supply	9~16V POC
Current	<300mA@12VDC

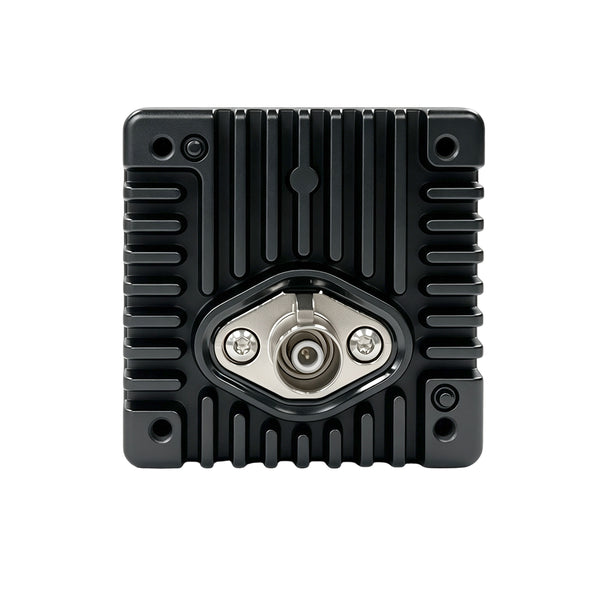

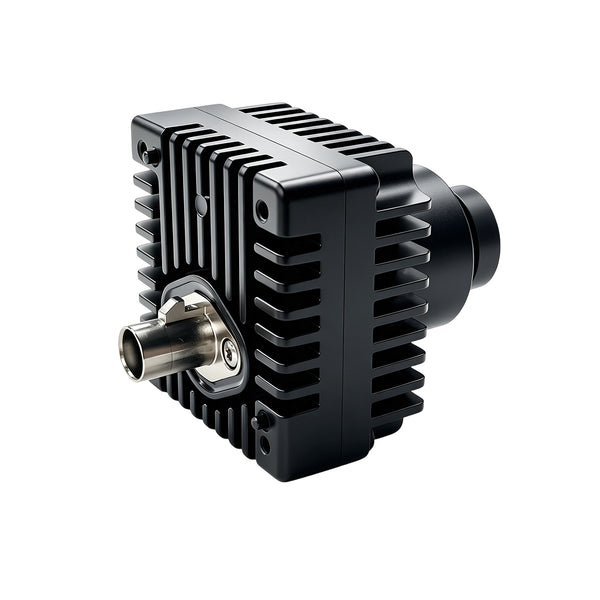

Connector	Amphenol（Z Type Fakra）
Operating temp. range	-40~+85℃
Dimensions	W: 40mm, L:40mm, H:23mm
Weight	<80g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	Max Optical Distortion	Water- proof	Lens Mount
SG5-IMX490C-5300-GMSL2-H30S1A	32°	21°	1.6	15.34	-2.7%	IP67	AA
SG5-IMX490C-5300-GMSL2-H60S	64°	40°	1.8	7.87	-14.01%	IP67	M12
SG5-IMX490C-5300-GMSL2-H100Y	100°	57°	1.8	6.16	-32.04%	IP69K	M15
SG5-IMX490C-5300-GMSL2-H130Y	130°	81°	1.6	4.01	-65.21%	IP67	M16

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

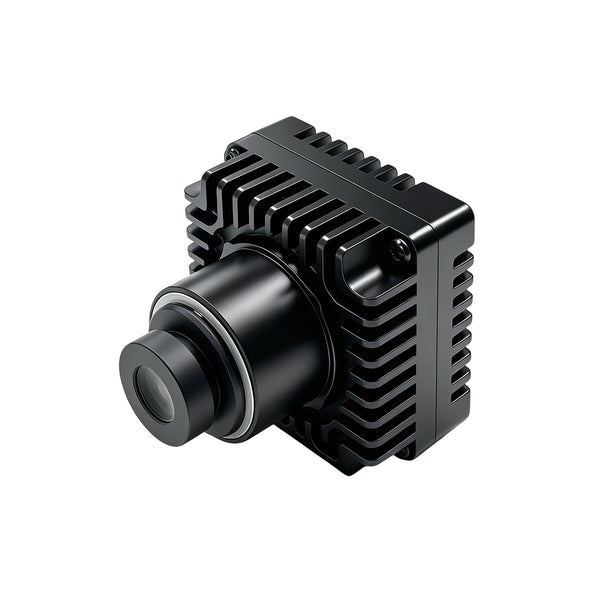

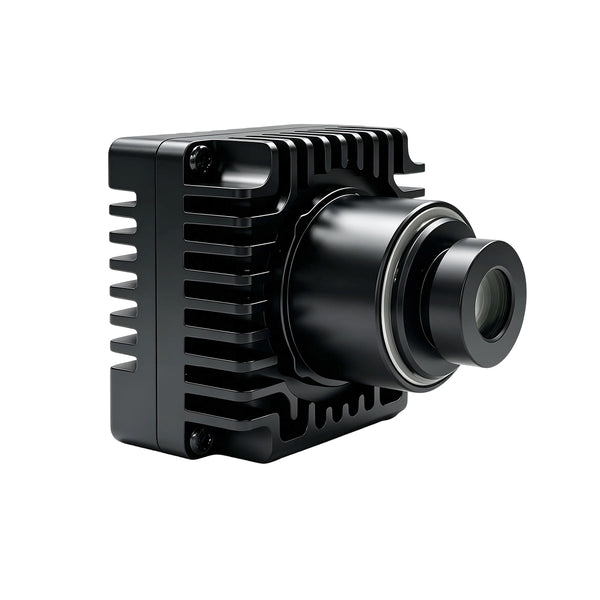

5MP IMX490 with ISP GMSL2 Camera

SG5‑IMX490C‑5300‑GMSL2 is specially designed for automotive applications. It integrates the SONY IMX490 CMOS sensor with a Maxim GMSL2 interface, and features a well‑tuned ISP that delivers exceptional image quality. The module is IP67‑rated and comes with an M12/M15/M16/AA lens that is precisely focused and factory‑glued, ensuring high reliability and consistent performance.

$520.00

Shipping & duties calculated at checkout.

Part No: SG5-IMX490C-5300-GMSL2-H30S1

SG5-IMX490C-5300-GMSL2-H30S1 SG5-IMX490C-5300-GMSL2-H30S1A SG5-IMX490C-5300-GMSL2-H60S SG5-IMX490C-5300-GMSL2-H100Y SG5-IMX490C-5300-GMSL2-H110SA SG5-IMX490C-5300-GMSL2-H130Y
