Product Details

Support WiKi

Resources

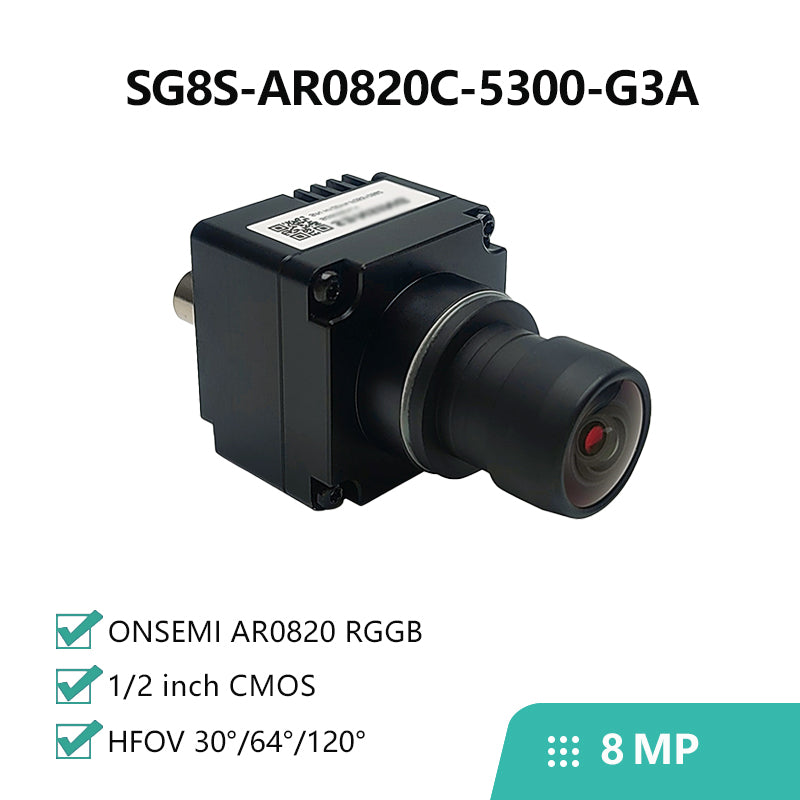

SG8S-AR0820C-5300-G3A-Hxxx camera module is equipped with ONSEMI Semiconductor CMOS image sensor AR0820 and Maxim GMSL3. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.

Feature

8MP High‑Resolution Imaging with HDR & LFM: Onsemi AR0820 sensor, 3840×2160 @ 30 fps YUV422 output. Built‑in HDR and LED flicker mitigation ensure stable image quality under strong light variation and against artificial lighting flicker.
Integrated ISP for Direct YUV Output: On‑board GW5300 ISP outputs processed YUV data directly, eliminating external sensor configuration and reducing backend development effort.
GMSL3 High‑Speed Interface with PoC: MAX96793 serializer supports up to 12 Gbps data rate and Power over Coax, with cable lengths up to 20 m for simplified vehicle wiring and reliable long‑distance transmission.
Multi‑Camera Synchronization & External Trigger: Hardware frame sync and trigger inputs enable precise multi‑sensor alignment for surround‑view and sensor fusion systems.
Rugged IP67 Enclosure & Wide Temperature Range: Factory‑focused AA lens glued in IP67‑rated housing; operates from –40°C to +85°C for outdoor and automotive applications.
Flexible Lens Options & Compact Footprint: Available in H30°, H60°, and H120° FOV variants. Compact 30×30 mm design, weight under 80 g, fits space‑constrained deployments.

Specification

Product	SG8S-AR0820C-5300-G3A-Hxxx
Sensor	ONSEMI 8.3MP AR0820 RGGB
ISP	GW5300
Output Pixels	3840H*2160V
Frame Rate	3840*2160@30fps
HDR Support	Yes
Output data	YUV422@8bit
Serializer	MAXIM MAX96793
Camera Interface	GMSL3
Power Supply	9~16V POC
Current	<400mA@12VDC
Connector	Amphenol Fakra（Z Code）
Operating temp. range	-40~+85℃

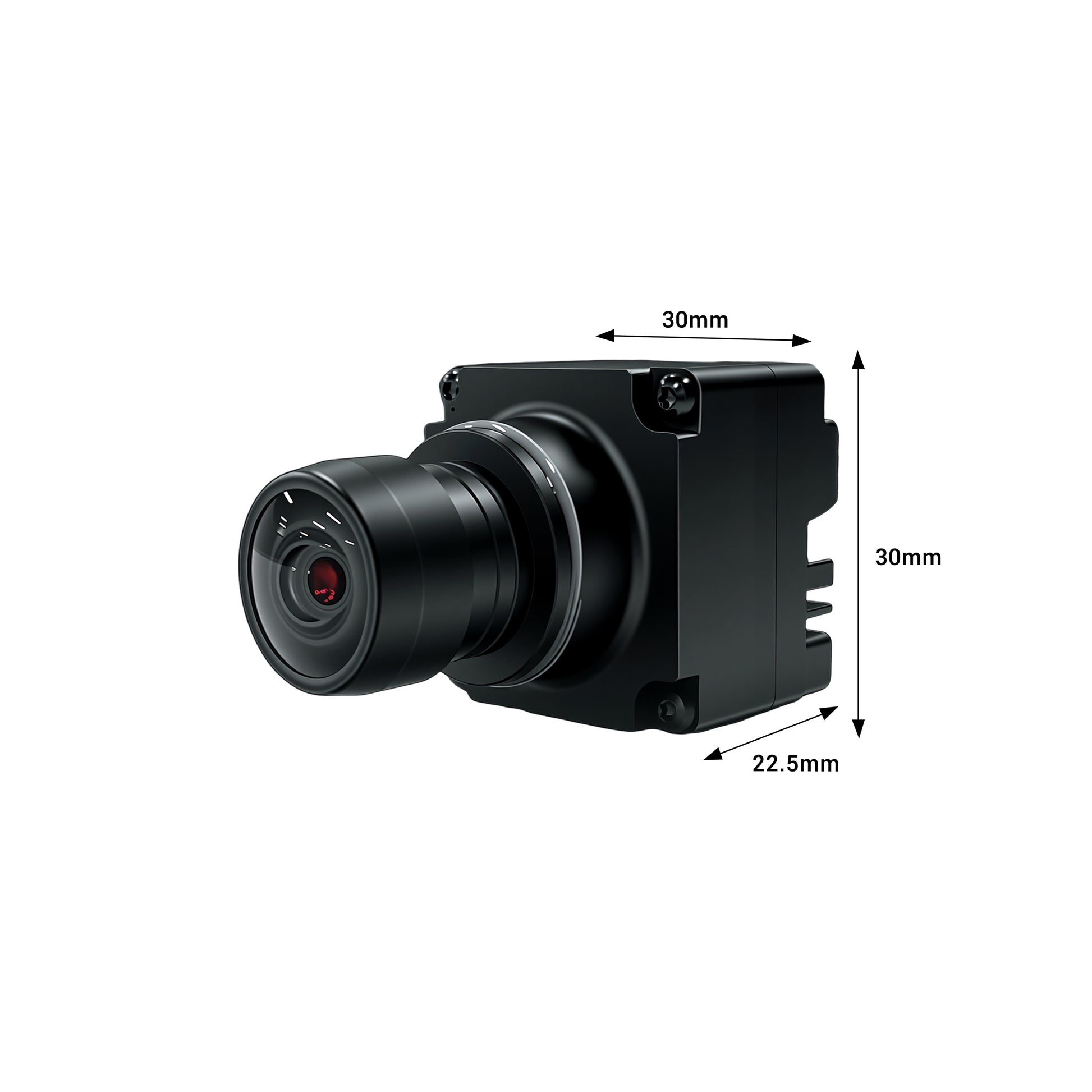

Dimensions	W: 30mm, L:30mm, H:22.57mm
Weight	<80g

Lens Spec & Dimensions

Model	HFOV	VFOV	FNO	EFL (mm)	Max Optical Distortion	Water- proof	Lens Mount
SG8S-AR0820C-5300-G3A-H30YA	30°	17°	1.6	15.34	-2.7%	IP67	AA
SG8S-AR0820C-5300-G3A-H60SA	60°	33°	1.8	7.87	-14%	IP67	AA
SG8S-AR0820C-5300-G3A-H120YA	120°	66°	1.6	4.01	-57.9%	IP67	AA

Note: This icon indicates the imaging direction is positive.

Application

Automation
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robotics

▪ Product Resources
Welcome to the SENSING Product Resources, where you can access relevant product and technical documentation.

Go to Product Resources>

▪ Platform Compatibility Matrix

Provides information about all GMSL camera and their compatible platforms information.

Platform Compatibility Matrix>‍

▪ Camera Installation Instruction

View detailed installation guidelines for various camera models.

Camera Module Installation Guide>‍

‍▪ Camera Triggering & Synchronization

Detailed Guide to Multi‑Camera Sync, Hardware Triggering, and Software Setup.

Camera Triggering and Synchronization Guide>‍

▪ Camera Intrinsic Parameters

View comprehensive information about camera intrinsic parameters, including how to obtain them, their formats, and applications.

Camera Intrinsic Parameters>‍

▪ Driver List

Camera drivers for NVIDIA Jetson series devices.

Nvidia-jetson-camera-drivers>‍

▪ More Help

If you cannot find the files you need, please contact our technical support team via email at support support@sensing-world.com‍.

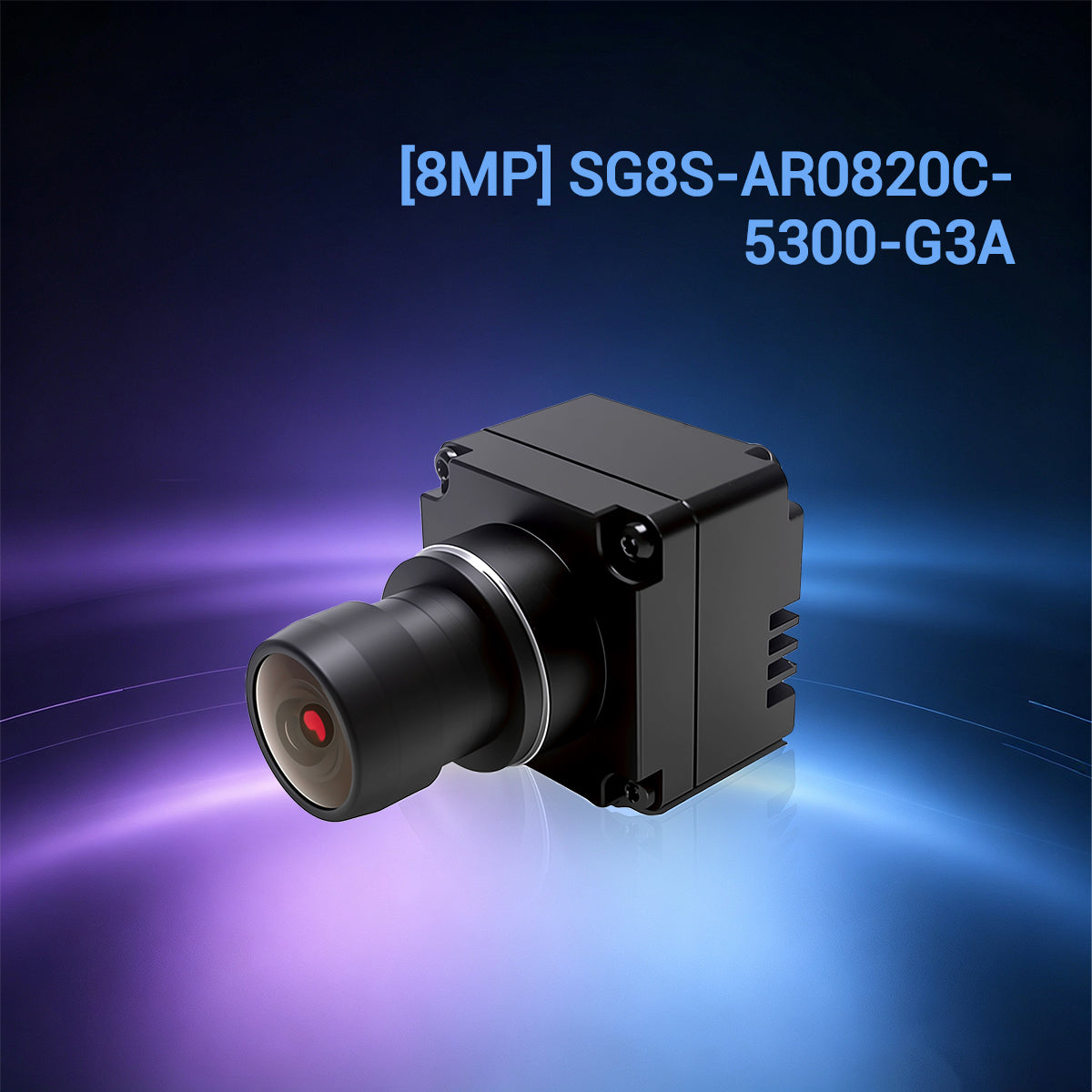

8MP AR0820 with ISP GMSL3 Camera

SG8S‑AR0820C‑5300‑G3A is specially designed for automotive applications. It integrates the ONSEMI AR0820 CMOS sensor with a Maxim GMSL3 interface, and features a well‑tuned ISP that delivers exceptional image quality. The module is IP67‑rated and comes with an AA lens that is precisely focused and factory‑glued, ensuring high reliability and consistent performance.

$549.00

Shipping & duties calculated at checkout.

Model: SG8S-AR0820C-5300-G3A-H30YA

SG8S-AR0820C-5300-G3A-H30YA SG8S-AR0820C-5300-G3A-H60SA SG8S-AR0820C-5300-G3A-H120YA
