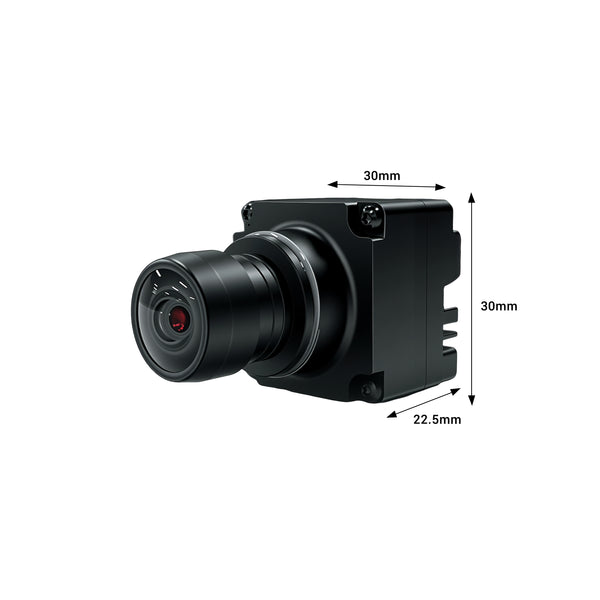

8MP OX08D10 without ISP GMSL2 Camera
$549.00 USD
In stock!
Overview
SG8-OX08DC-G2G-Hxxx camera module is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2 (MAX96717G). It has an automotive-grade sensor , which comes with an IP67-rated enclosure – is supplied with AA lens that is focused and glued in our factory.
Specifications
- Model : SG8-OX08DC-G2G-Hxxx
- Sensor : OMNIVSION 8.3MP OX08D10 RGGB
- Image Size : 1/1.73 inch CMOS
- Resolution : 3840H*2160V
- Frame Rate : Max 45fps
- Connector : Amphenol Fakra（Z Code ）
- Output data : RAW 12
- Serializer : MAXIM MAX96717
- Sensor Type : Rolling shutter
- Operating temp.range : -40°C～+85°C
- Dimensions : 30mm*30mm*22.5mm
- Weight : <100g
- HFOV : 30°/60°/120°
Features
- Output format: Uncompressed RAW format
- AA/S-mount IP67 compliant lens focused and glued at our factory
- Support Multi−Camera synchronization
- Support different focal length lens
- External trigger support
Application
- Automotive
- ADAS + Viewing Fusion
- High Dynamic Range Imaging
- Autonomous Driving
- Robots
Model and Lens
Dimensifaceons
Note :
The height of this module varies when matching different lenses. Please refer to 3D digital analog size for details.
This icon indicates the imaging direction is positive.
Product specifications and instructions
Camera Module Installation Guidance
Camera Triggering and Synchronization Instructions
SerDes configuration file
Thank you for choosing our product. We will provide you with 1 year of free after-sales service.
If you encounter any technical problems during installation or use, please feel free to consult our customer service, and we will provide you with comprehensive technical services.
For product quality defects caused by product design and manufacturing reasons, our company will replace similar products for you free of charge, and the resulting costs will be borne by our company.
